System M2 Stainless Steel Bathroom Sinks, Straight
The System M2 solution merges creative design with ease of installation and care. One plumbing connection is required for multiple basin arrangements. Available in a variety of modern styles and options including soap dispensers, valving, bottom enclosures and tankless water heaters.

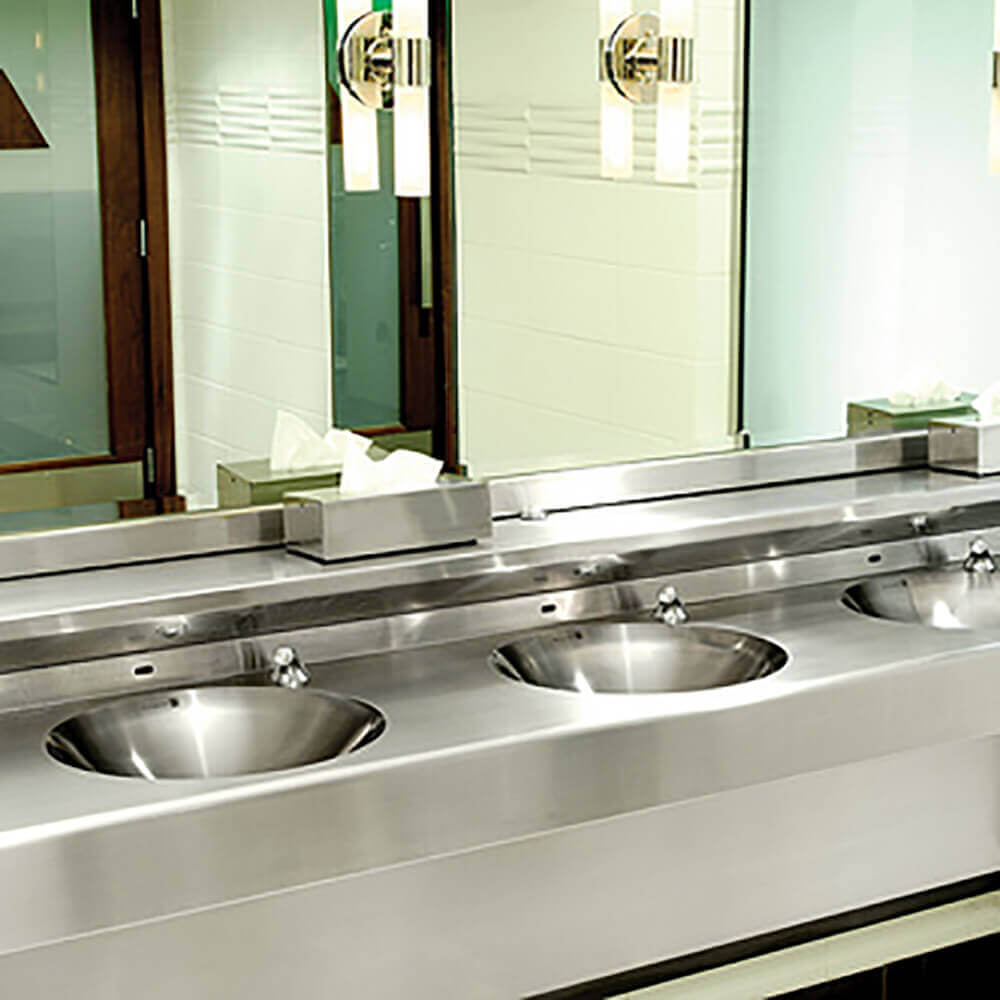

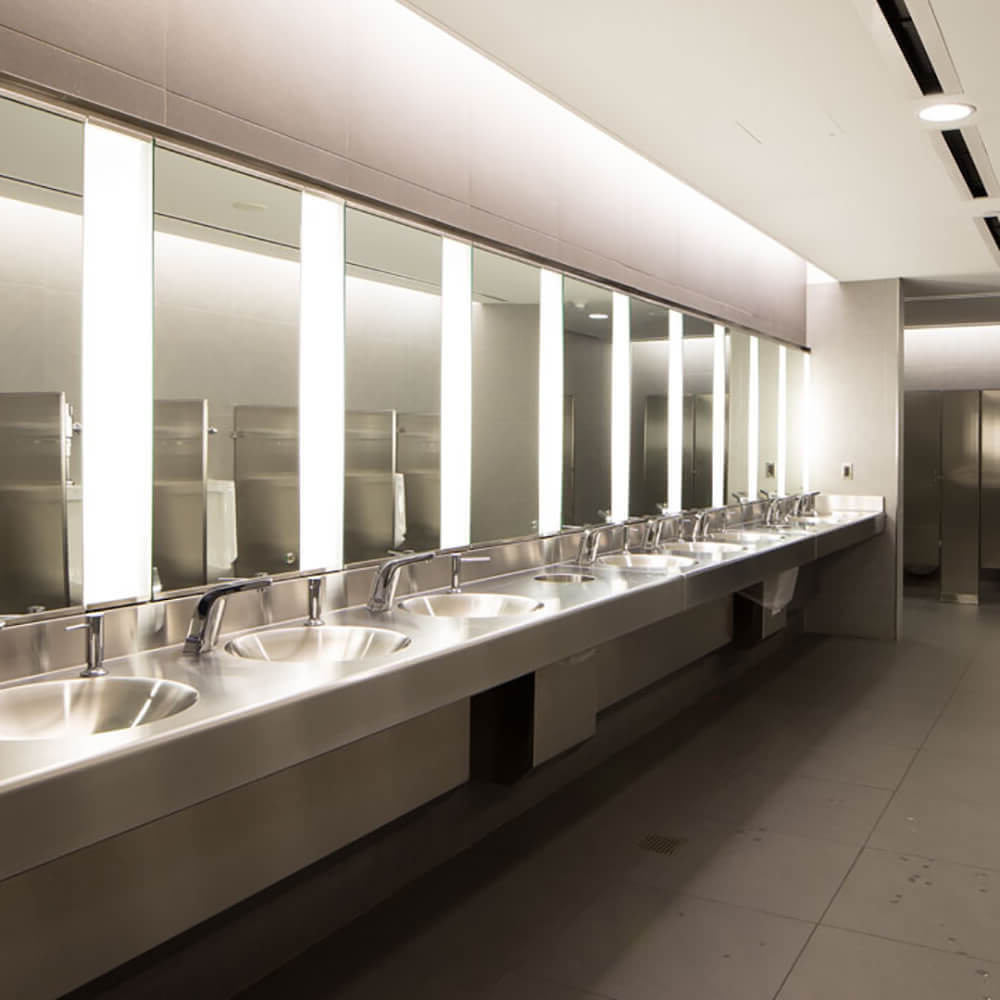

Model 8981 Series Washbasins have straight fronts and are available in one, two, three or four station units. These units offer the look and feel of commercial-grade designer basins and counter tops. Each standard height washbasin complies with ANSI, UFAS and ADA requirements. Please check your local plumbing codes
Water for the sink may be tempered using a thermostatic mixing valve available optionally through Neo-Metro. The valve is ASSE 1070 compliant, rated at 4.5 gallons (17 liters) per minute at 45 PSI (310 kPa)
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Two Station Straight Front System M2 with Backsplash | 157 KB | |||
| | Straight Front System M2: 8981-1 (1-Station), 8981-2 (2-Station), 8981-3 (3-Station), 8981-4 (4-Station) | 571 KB | |||
 | | System M2 Stainless Steel Bathroom Sinks, Straight [8981-1-IS-RL, 8981-2-IS-RL, 8981-3-IS-RL, 8981-4-IS-RL] | 0 | 939 KB | ||
| | System M2 Stainless Steel Bathroom Sinks, Straight [8981-1-IS-RL, 8981-2-IS-RL, 8981-3-IS-RL, 8981-4-IS-RL] | 0 | 1007 KB | ||
| | One Station Straight Front Basin with Shelf and Round Basin | 0 | 236 KB | ||
| | Two Station Straight Front Basin with Shelf and Round Basin | 0 | 272 KB | ||
| | Three Station Straight Front Basin with Shelf and Round Basin | 0 | 296 KB | ||
| | Four Station Straight Front Basin with Shelf and Round Basin | 0 | 324 KB | ||
| | Faucet Option for System M2 | 0 | 126 KB | ||
| | Soap Option for System M2 | 0 | 151 KB | ||
| | Sensor Operated Valve Option for System M2 | 0 | 161 KB | ||
| | Range Adjustment Sensor Operated Valve on System M2 or Wash Fountains | 0 | 179 KB | ||
| | Close Elbow used on Ebb and System M2 | 0 | 140 KB | ||
| | One Station Straight Front System M2 | 0 | 139 KB | ||
| | One Station Straight Front System M2 with Backsplash | 0 | 148 KB | ||
| | One Station Straight Front System M2 with Shelf | 0 | 121 KB | ||
| | Two Station Straight Front System M2 | 0 | 124 KB | ||
| | Two Station Straight Front System M2 with Shelf | 0 | 131 KB | ||
| | Three Station Straight Front System M2 | 0 | 128 KB | ||
| | Three Station Straight Front System M2 with Backsplash | 0 | 161 KB | ||
| | Three Station Straight Front System M2 with Shelf | 0 | 134 KB | ||
| | Four Station Straight Front System M2 | 0 | 129 KB | ||
| | Four Station Straight Front System M2 with Backsplash | 0 | 162 KB | ||
| | Four Station Straight Front System M2 with Shelf | 0 | 135 KB | ||
| | Typical Install for Straight Front System M2 with Hand Operated Valve | 0 | 278 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Sinks, Basins & Troughs Brochure (pdf) | 0 | 2 MB | ||
| | 8980 Series or 8981 Series -H (Hand Operation) | 0 | 111 KB | ||
| | Cleaning guidelines for Neo-Metro products | 0 | 252 KB | ||
| | Most significant project Morris Group International family has ever work on | 0 | 87 KB |
Specifications
| Accessibility | ADA Compliant |
| Material | Stainless Steel |
| Mount | Wall Mounted |
| Steel Finish | Satin Finish Stainless Steel [STANDARD - plain model number], -EG-10 | White Gloss Powder Coated Stainless Steel, -EG-22 | Black Matte Powder Coated Stainless Steel |
| Basin Shape | Round, D-Shaped, Square |
| Stations | 2 Station, 3 Station, 4 Station |
| Certifications | ASME A112.18.1, CSA B125.1, cUPC |
| Brand | System M2, Acorn ConTrols® Inside |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | BKS (Stainless Steel Deck) | Option: Splash Panels - 3" 60° Backsplash on Stainless Steel Deck | ||

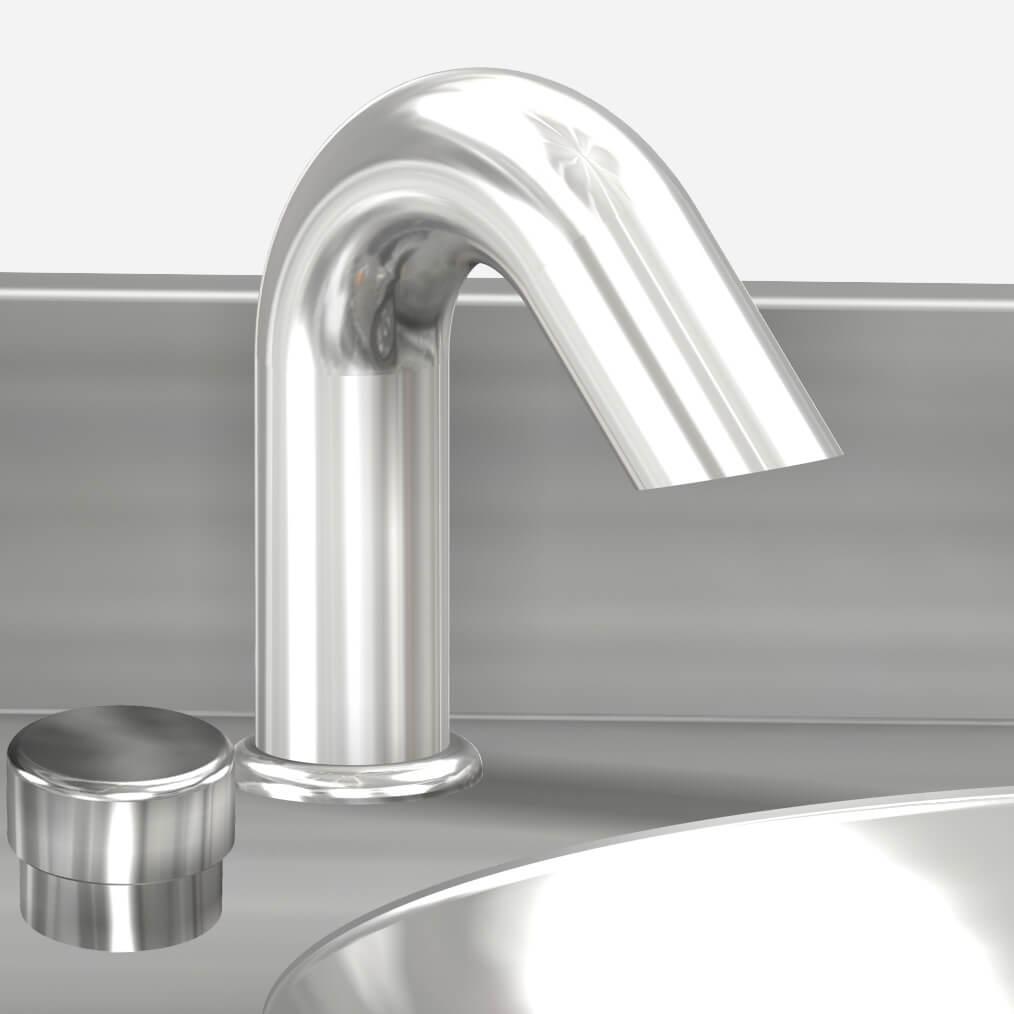

 | DMJ-H | Faucet: Push Button, Deck-Mounted J-Spout | ||

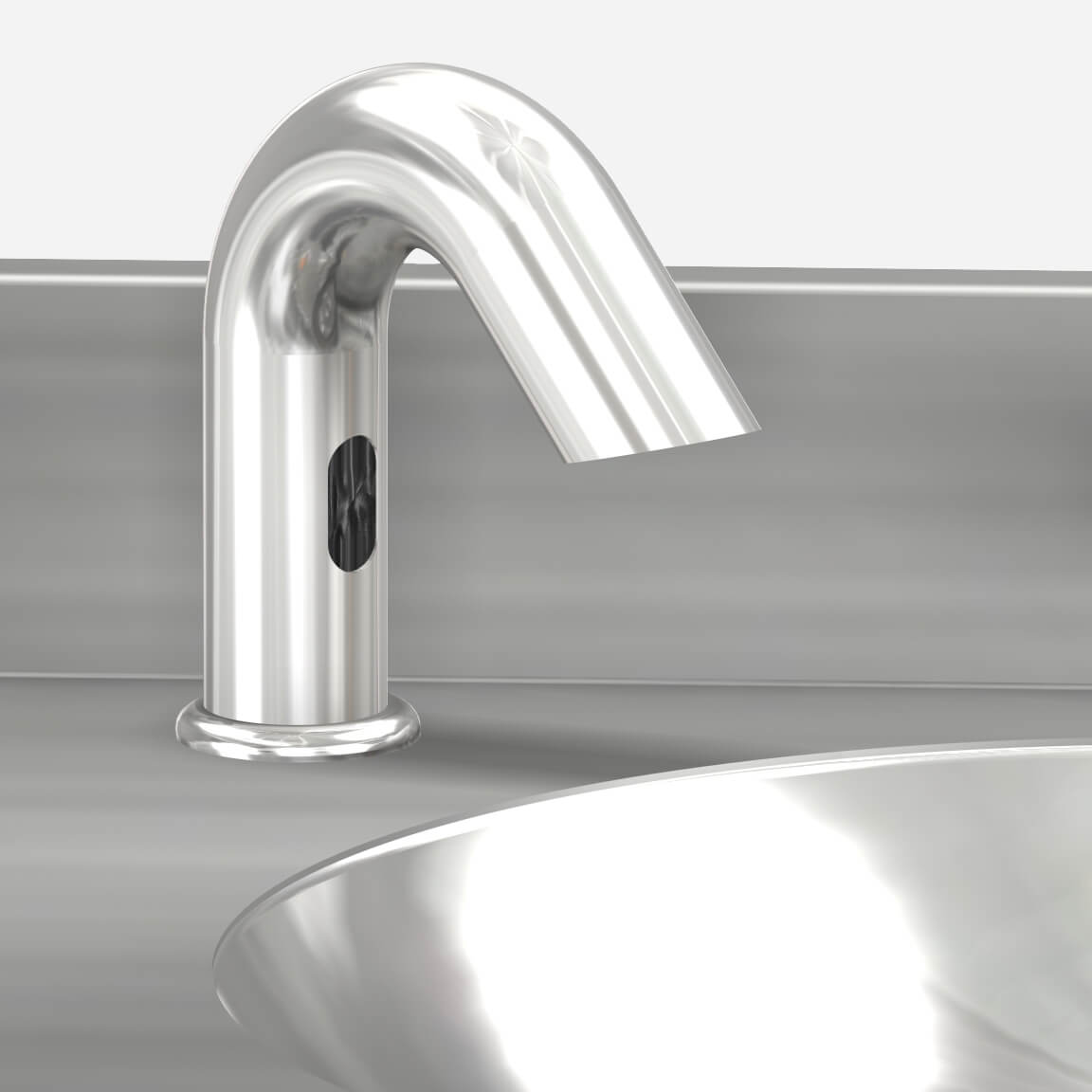

 | DMJ-SO | Faucet: Plug-In, Sensor-Activated, Deck-Mounted J-Spout | ||

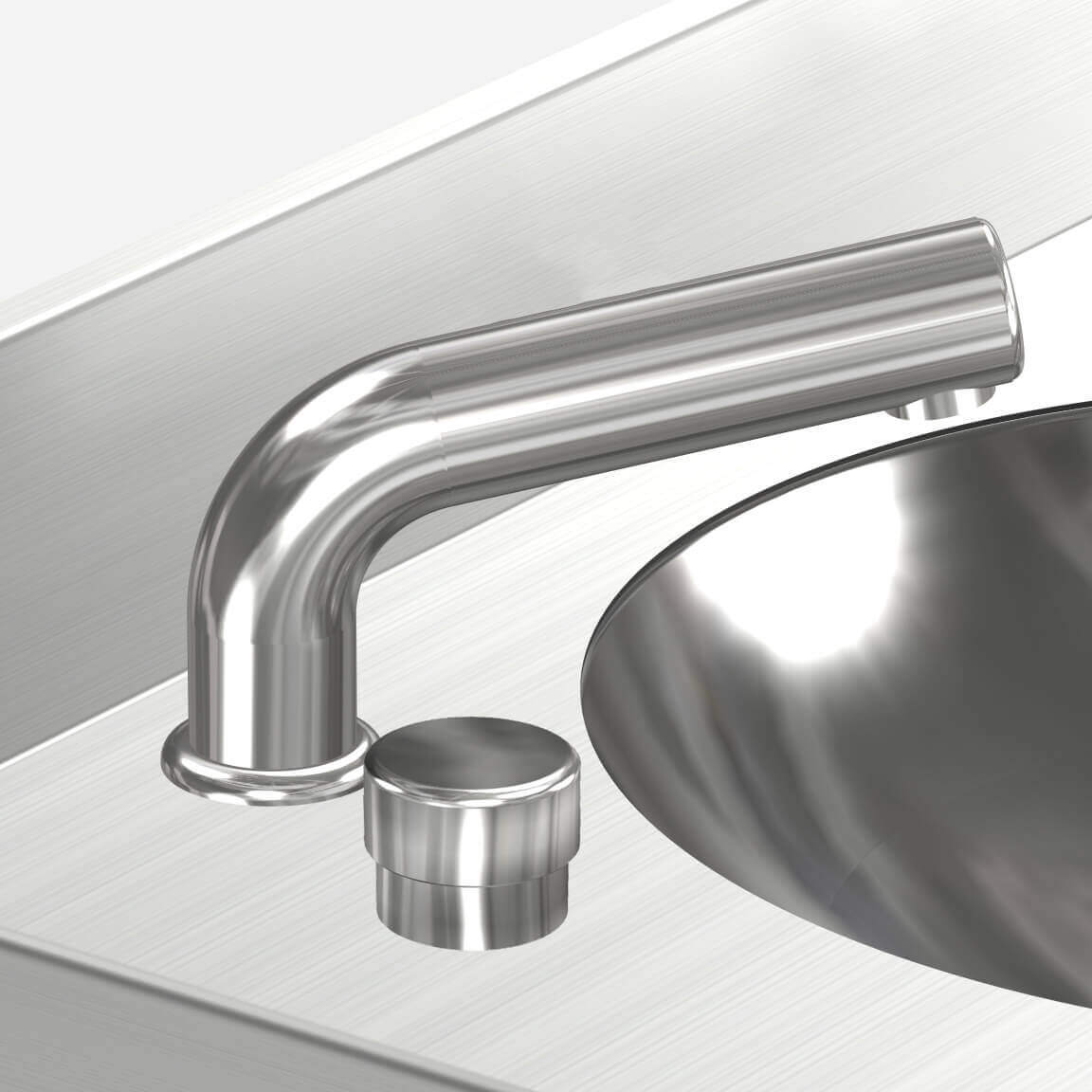

 | DML-H | Faucet: Push Button, Deck-Mounted L-Spout | ||

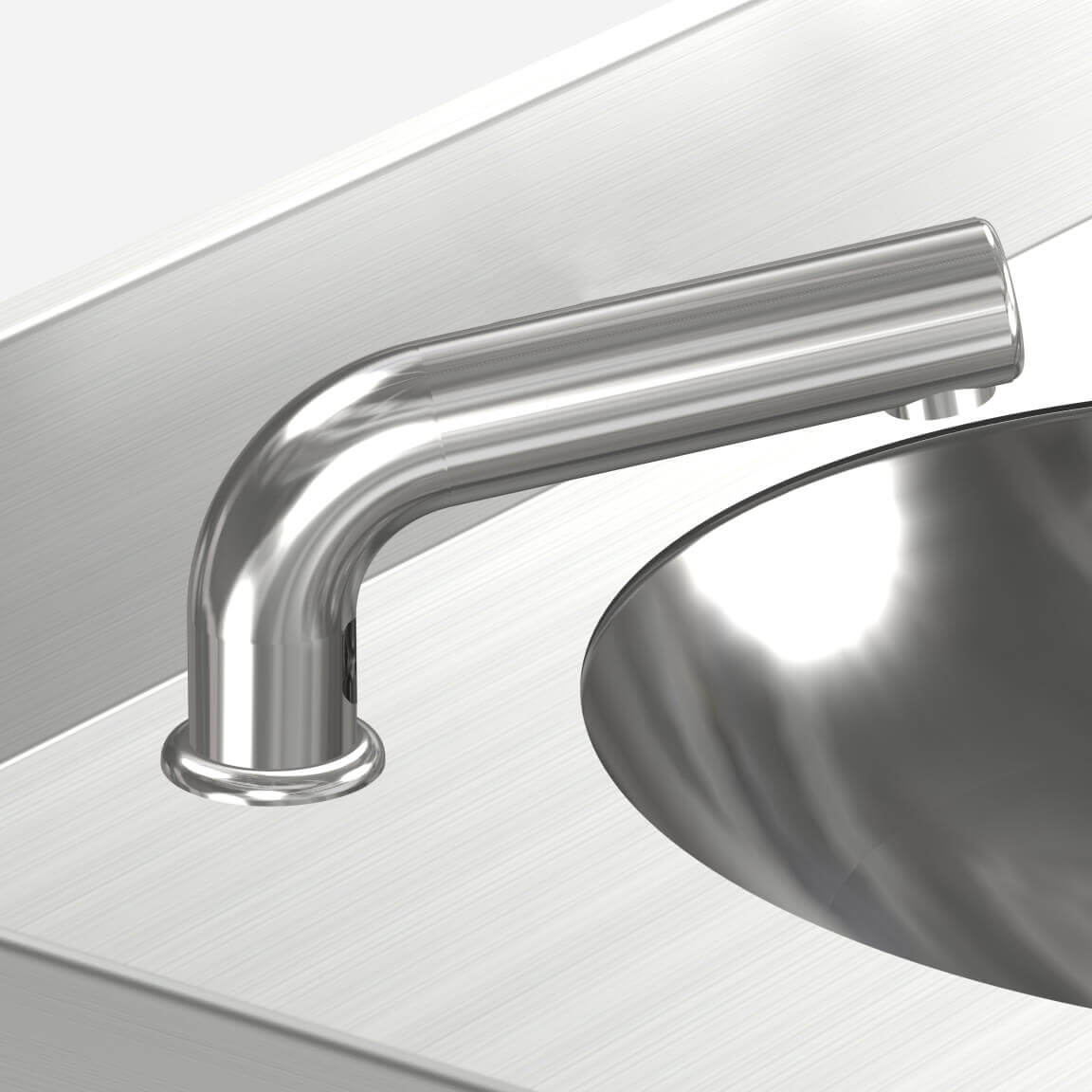

 | DML-SO | Faucet: Plug-In, Sensor-Activated, Deck-Mounted L-Spout | ||

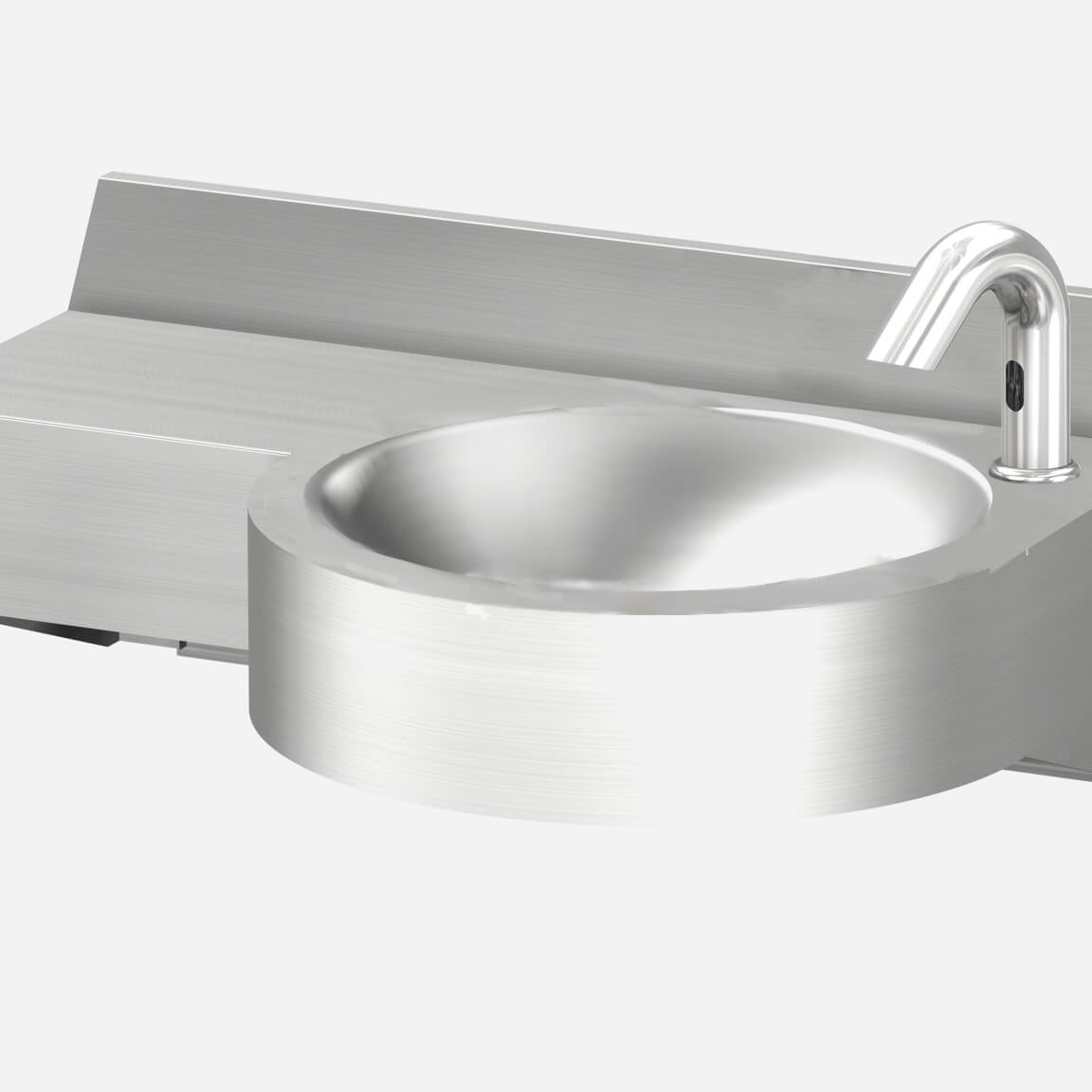

 | ECL | Option: Deck Extension, Left | ||

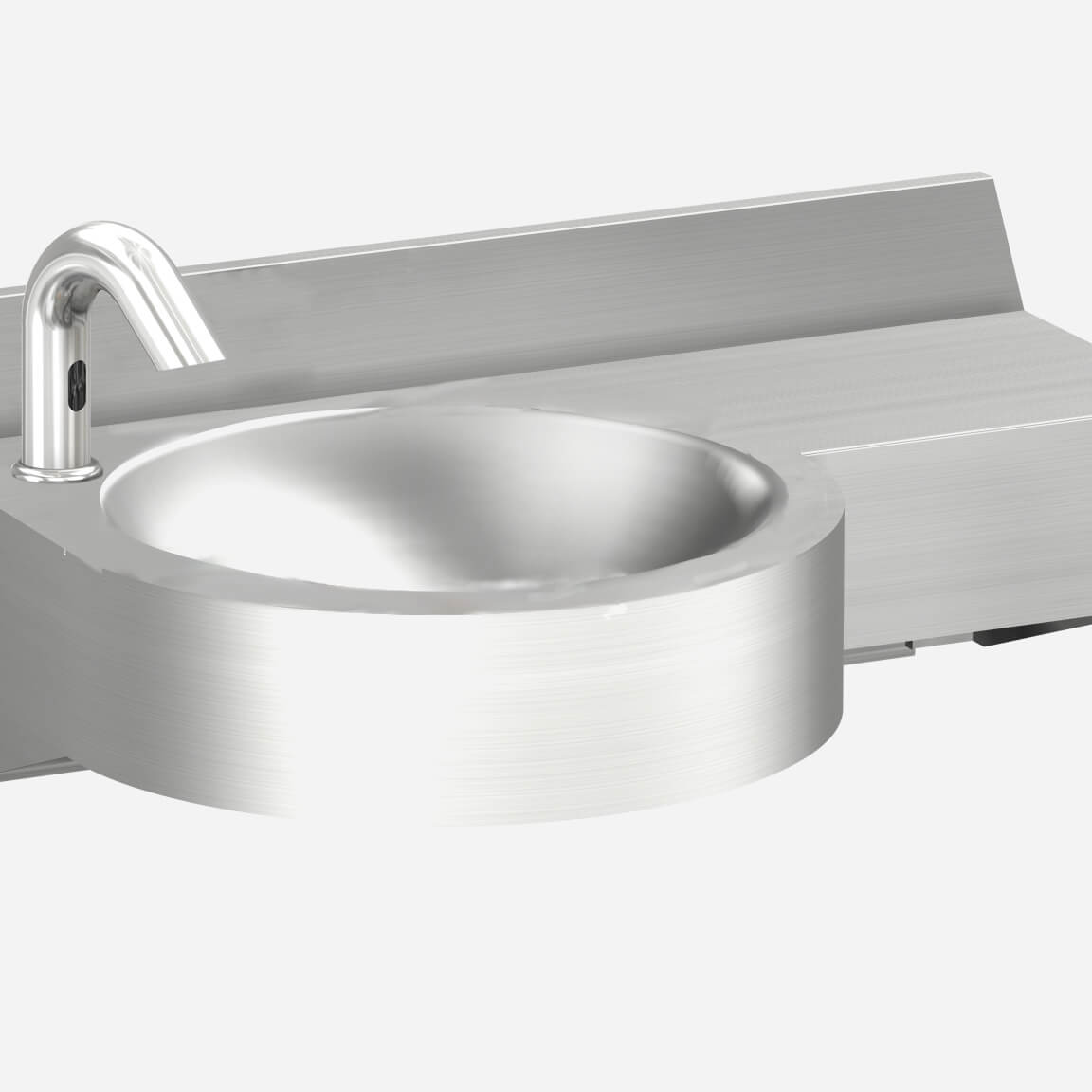

 | ECR | Option: Deck Extension, Right | ||
 | H0 | Option: Faucet Mounting - No Hole Faucet | ||
 | H1 | Option: Faucet Mounting - Single Hole | ||
 | H38 | Option: Faucet Mounting - 8" Centerset | ||

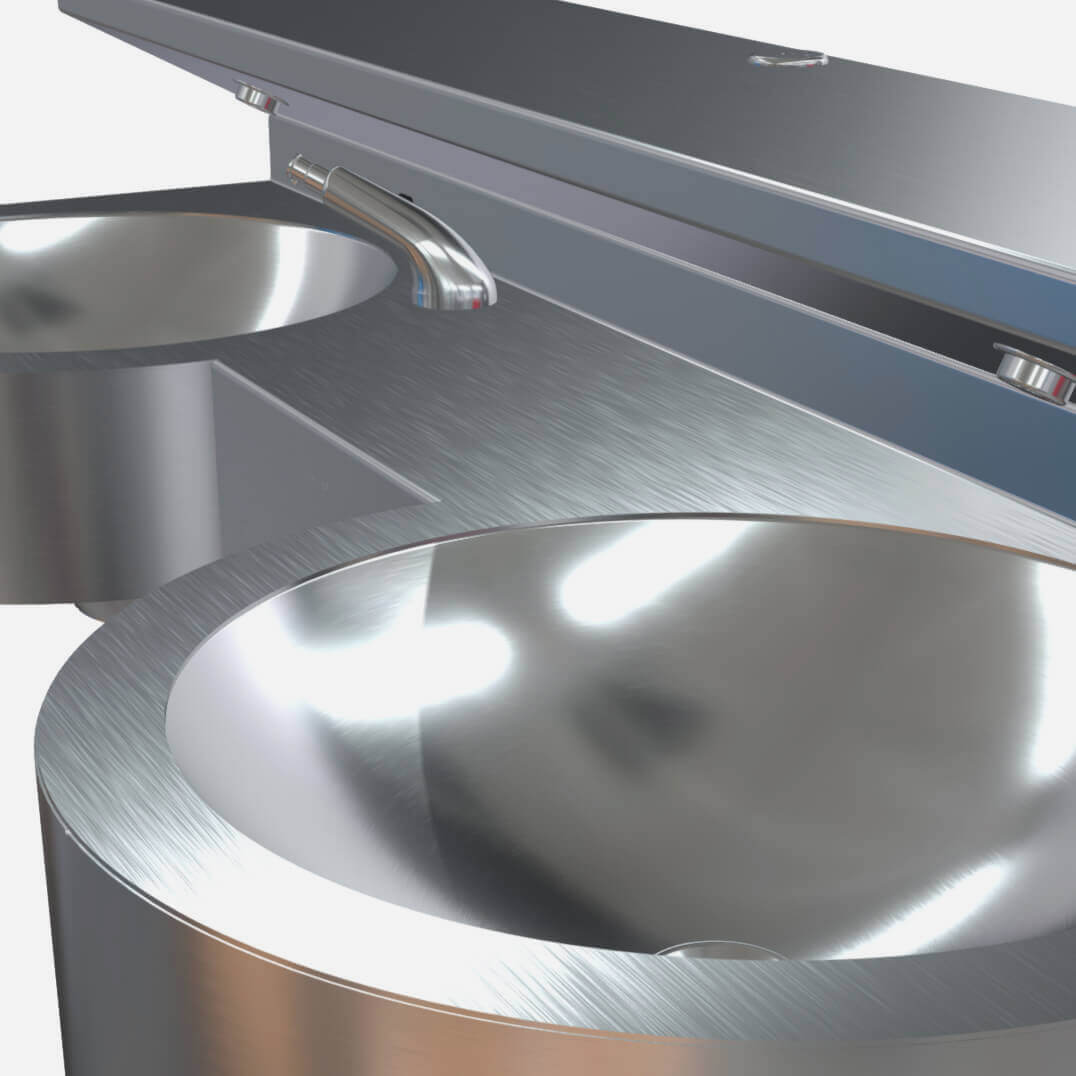

 | IS | Option: Integral Shelf on Stainless Steel Deck | ||
 | OF | Option: Basin Overflow | ||

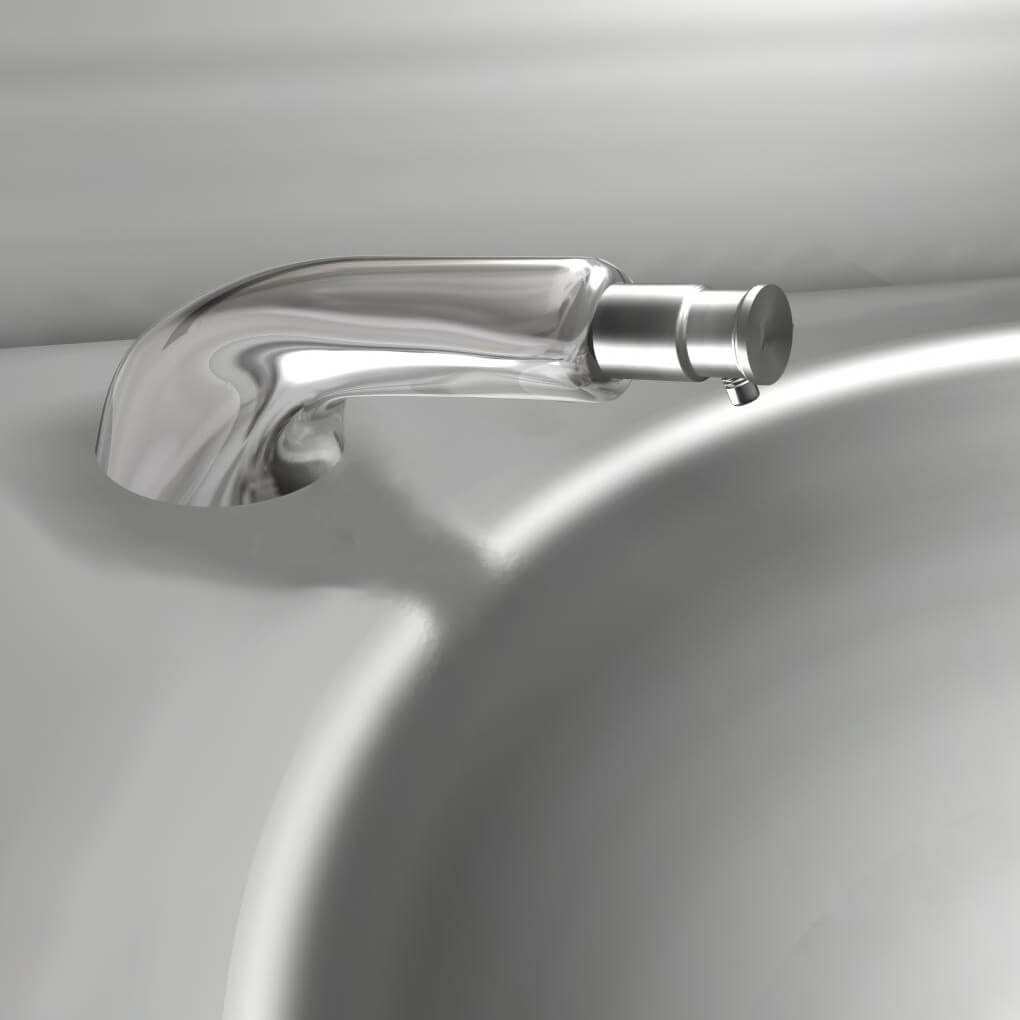

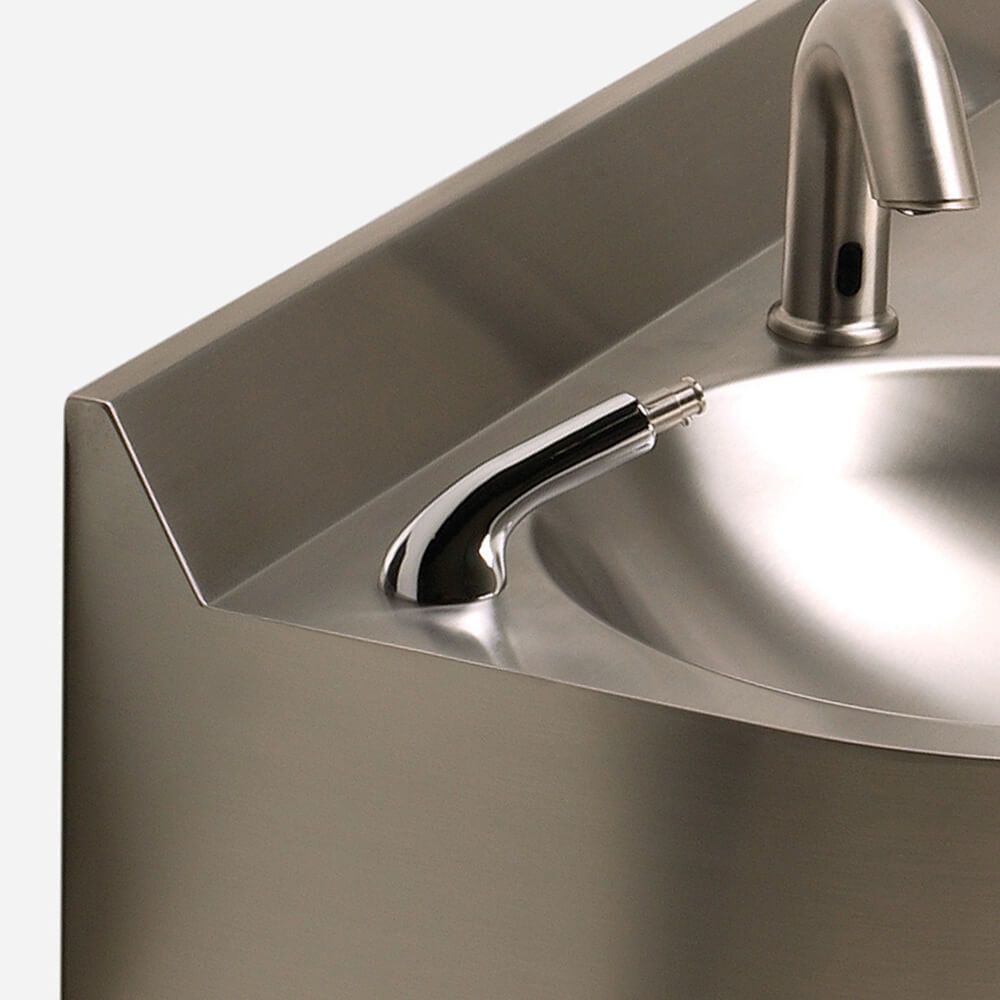

 | PDM | Option: Soap - Metering Liquid Soap Dispenser | ||

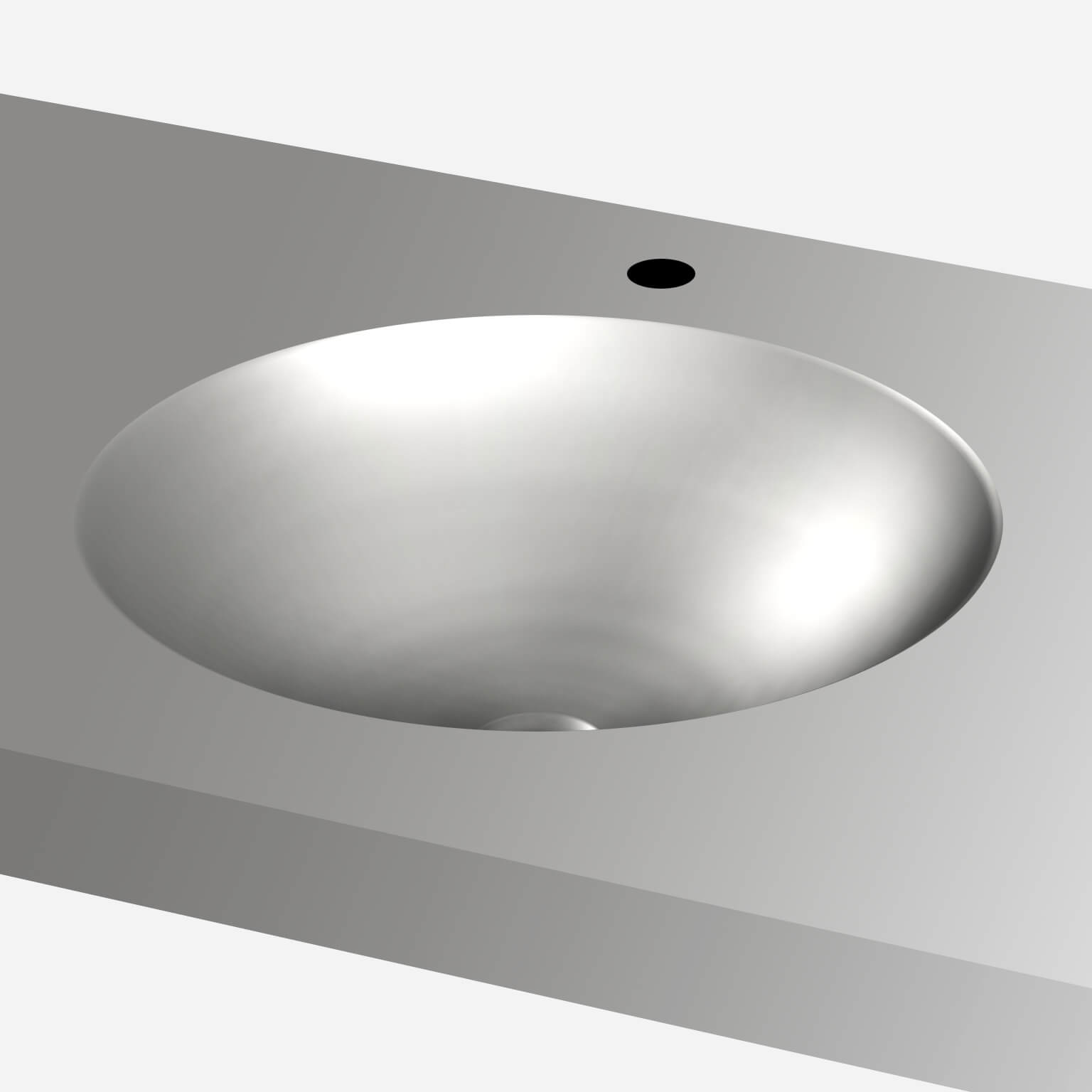

 | RL | Option: Bowl Style - Round | ||
 | RLD | Option: Bowl Style - D-Shape | ||
 | SQR | Option: Bowl Style - Square Stainless Steel | ||
 | WRL | Option: Waste Receptacle, Left | ||
 | WRR | Option: Waste Receptacle, Right |
Colors
Steel Finish
![Satin Finish Stainless Steel [STANDARD - plain model number]](https://assets.morrisgroupint.com/assets/2dc4b603-3210-47b1-a3c9-df9f8af60dd7.jpg)
Satin Finish Stainless Steel [STANDARD - plain model number]
EG-10 | White Gloss Powder Coated Stainless Steel
EG-22 | Black Matte Powder Coated Stainless Steel
Models
Typical deck styles with model numbers per station

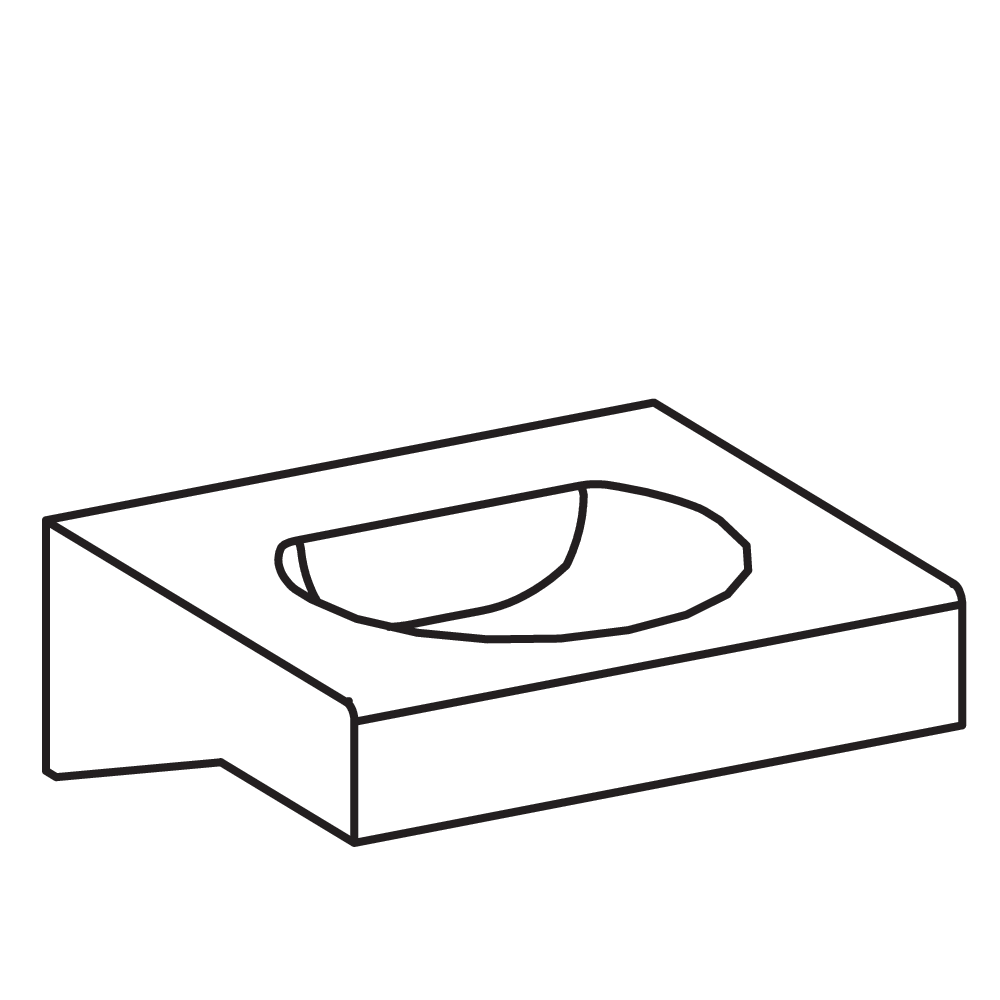

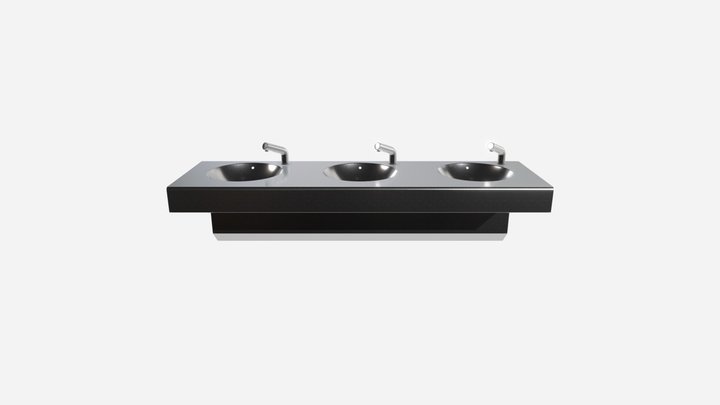

Standard deck style
8981-1 One-Station 19" (483 mm) install guide
8981-2 Two-Station 49" (1,245 mm) install guide
8981-3 Three-Station 79" (2,007 mm) install guide
8981-4 Four-Station 109" (2,769 mm) install guide
Suggested deck mounted faucets
-DMJ | J-Spout Faucet;
-DML | L-Spout
install guide faucet
install guide pushbutton operation
install guide sensor operation
adjust guide 9 volt sensor

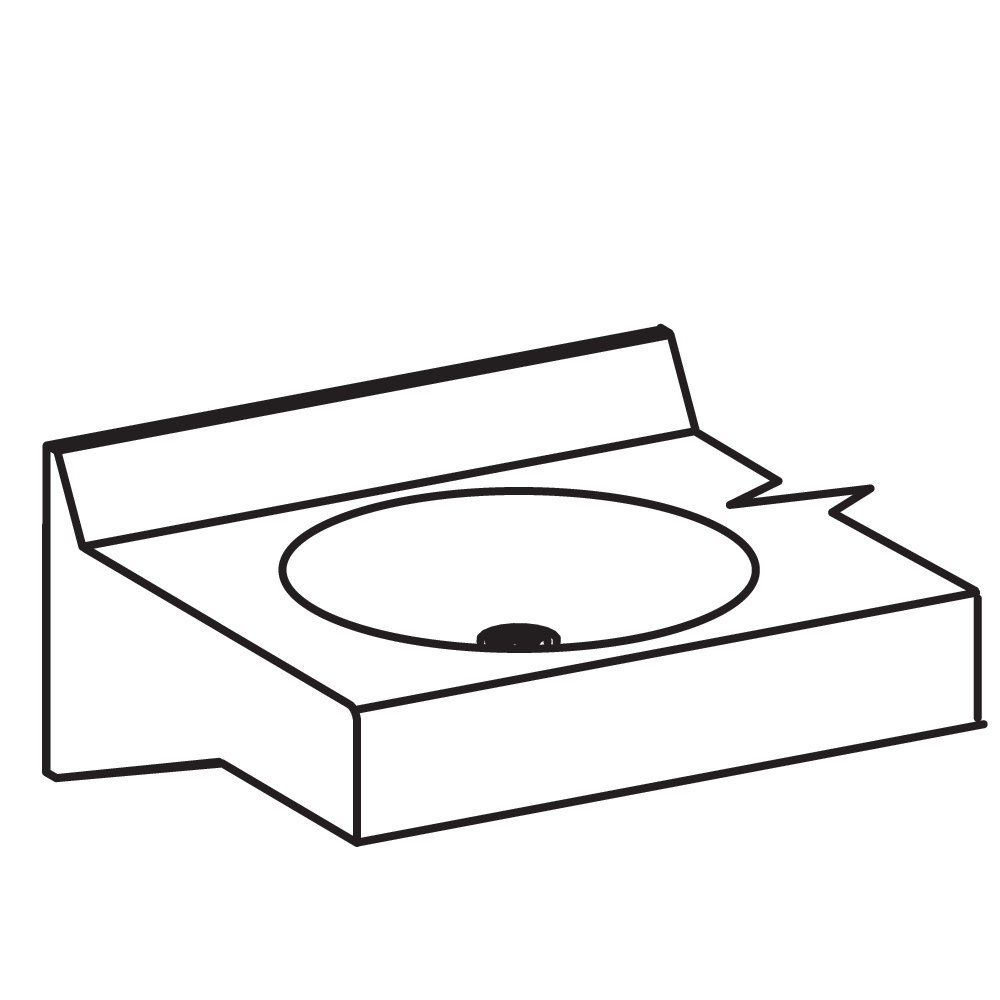

With backsplash
8981-1-BKS One-Station 19" (483 mm) install guide
8981-2-BKS Two-Station 49" (1,245 mm) install guide
8981-3-BKS Three-Station 79" (2,007 mm) install guide
8981-4-BKS Four-Station 109" (2,769 mm) install guide
Suggested deck mounted faucets available
-DMJ | J-Spout Faucet;
-DML | L-Spout
install guide faucet
install guide pushbutton operation
install guide sensor operation
adjust guide 9 volt sensor

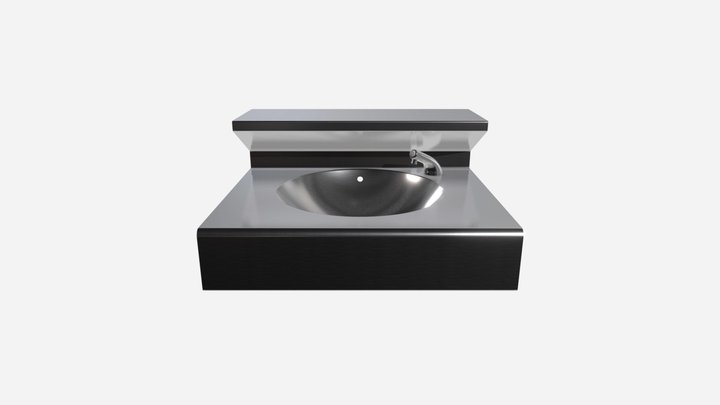

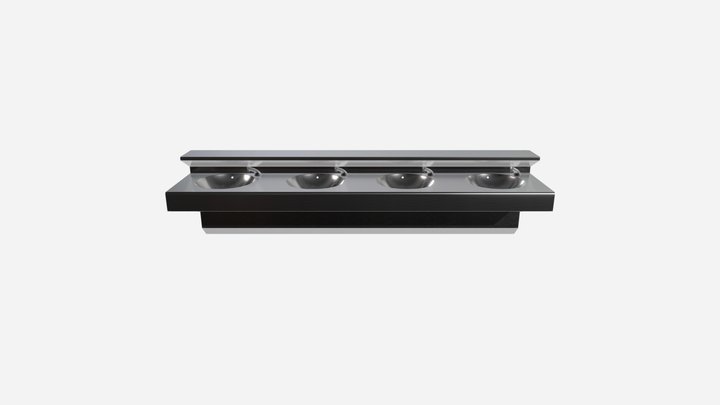

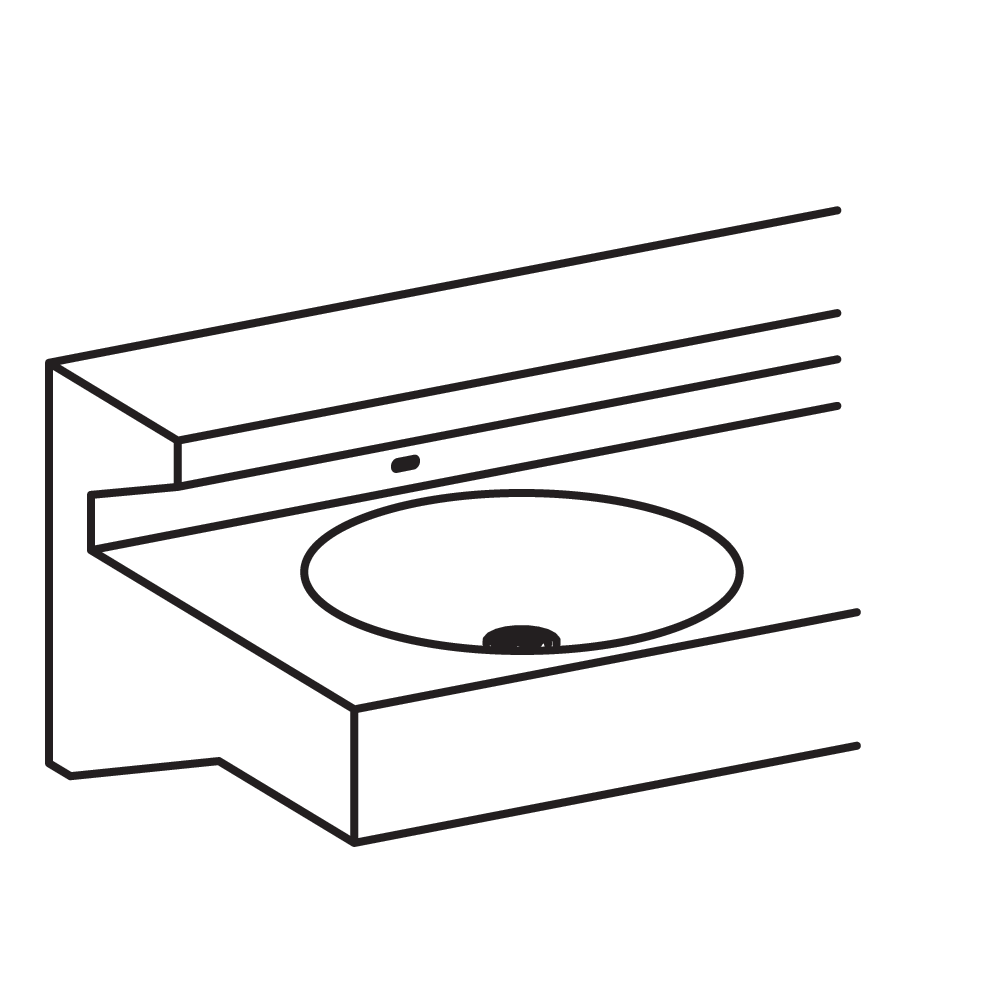

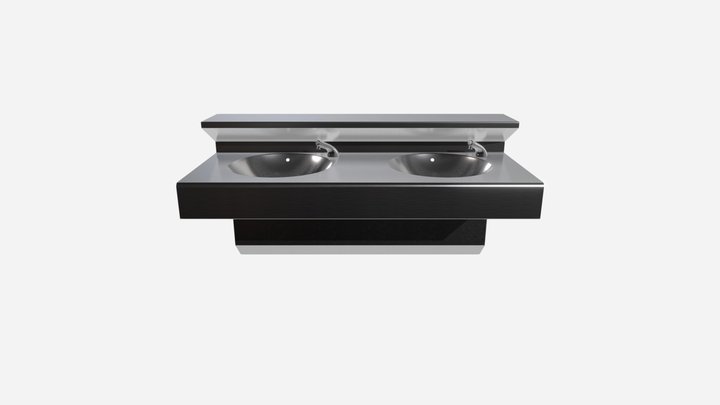

With integral shelf
8981-1-IS One-Station 19" (483 mm) install guide
8981-2-IS Two-Station 49" (1,245 mm) install guide
8981-3-IS Three-Station 79" (2,007 mm) install guide
8981-4-IS Four-Station 109" (2,769 mm) install guide
Undershelf sensor-activated spouts are provided per station
install guide sensor operation
Bowl type

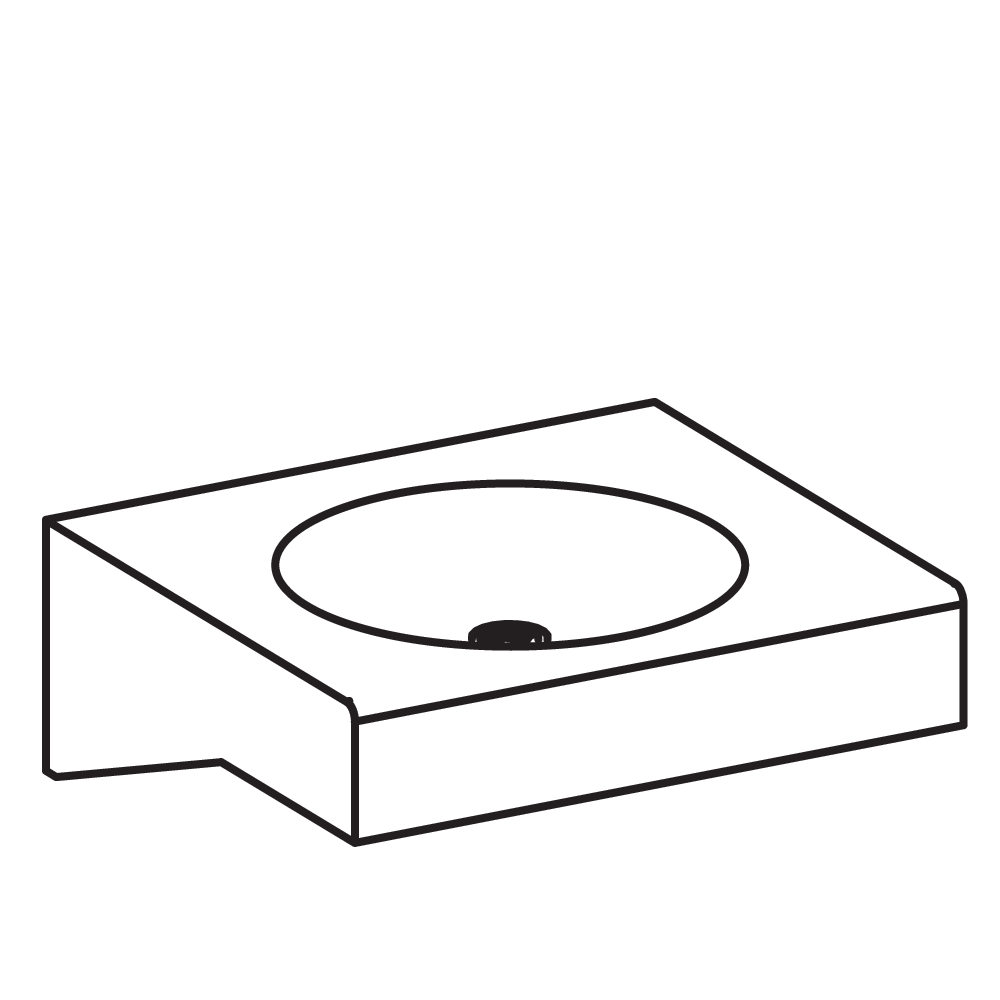

Round bowl
15.625" (397 mm) diameter
-RL Satin Finish
-RL-HP Mira High Polish

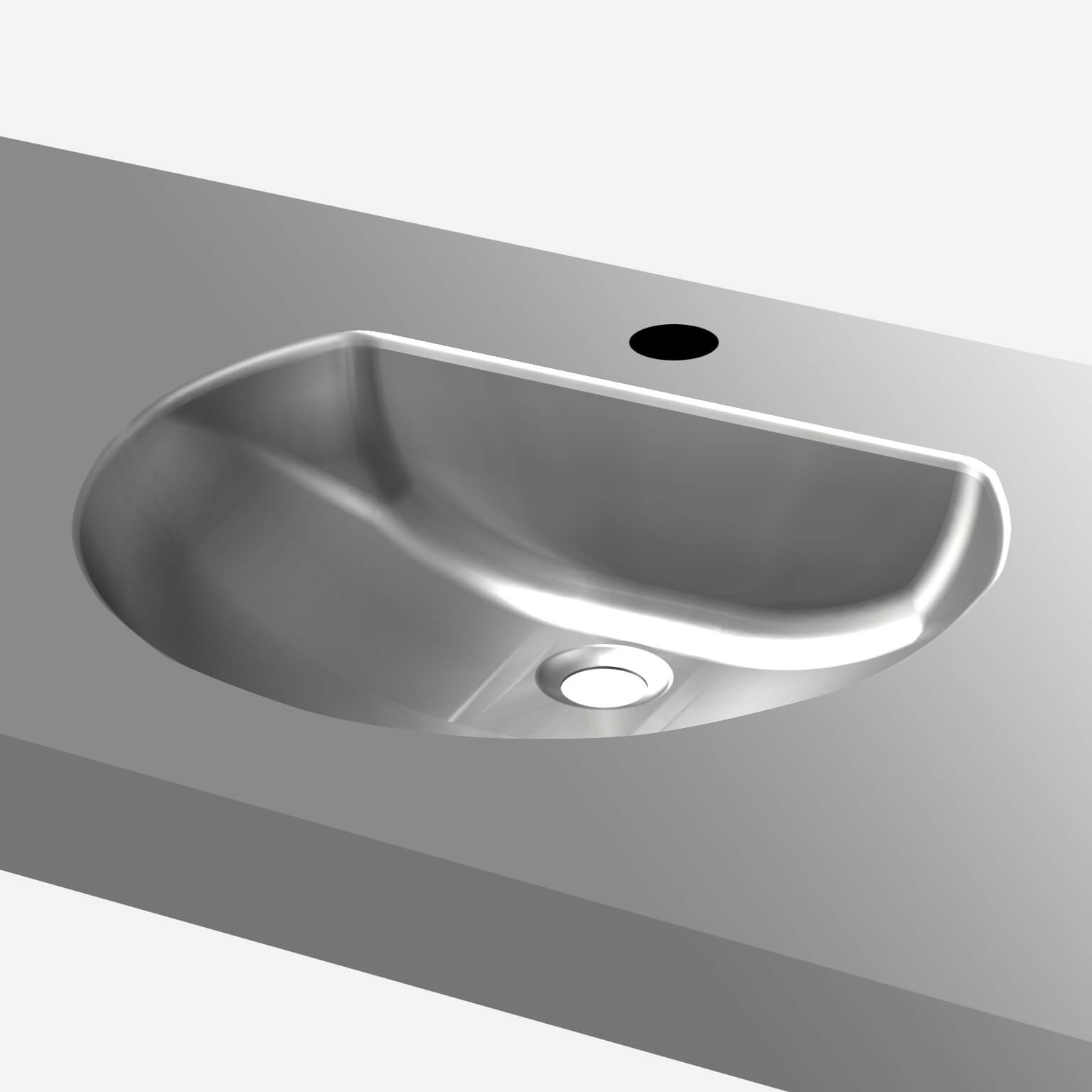

D-shape bowl
15.625" x 13.25" (397 x 338 mm)
-RLD Satin Finish
-RLD-HP Mira High Polish

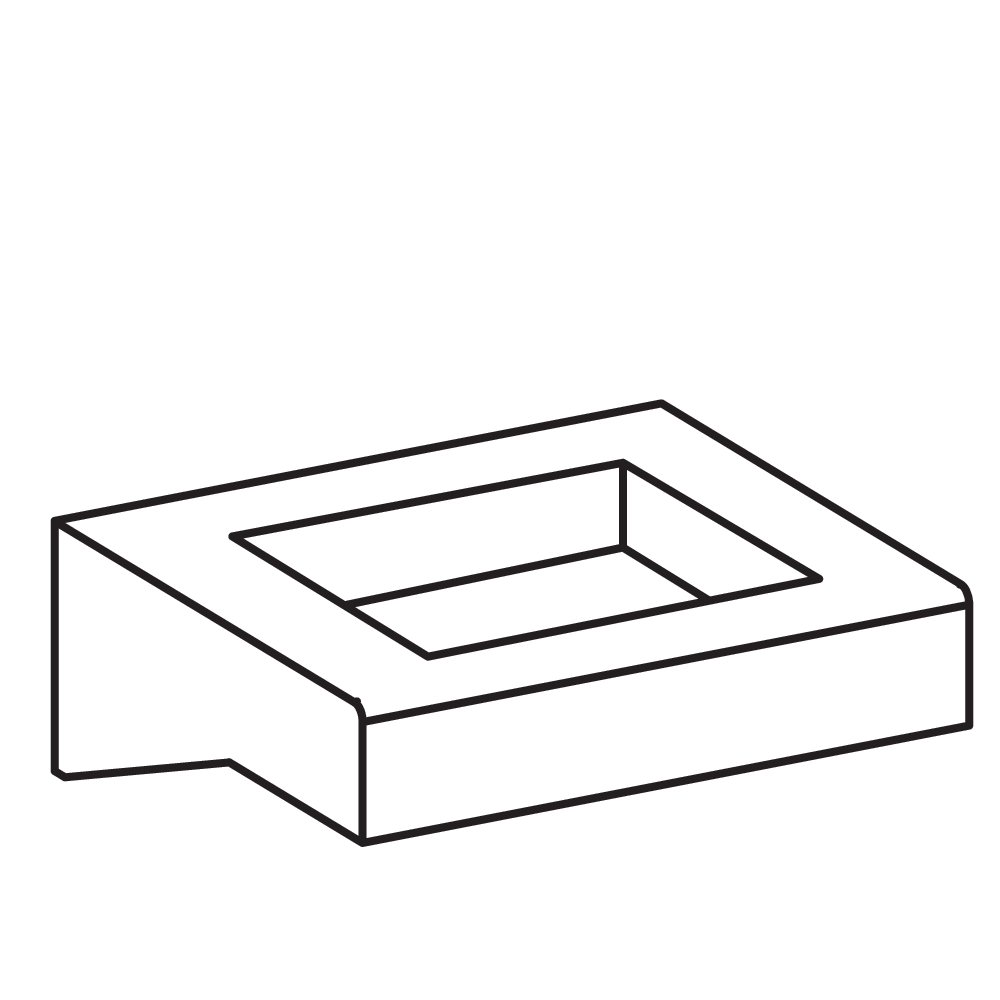

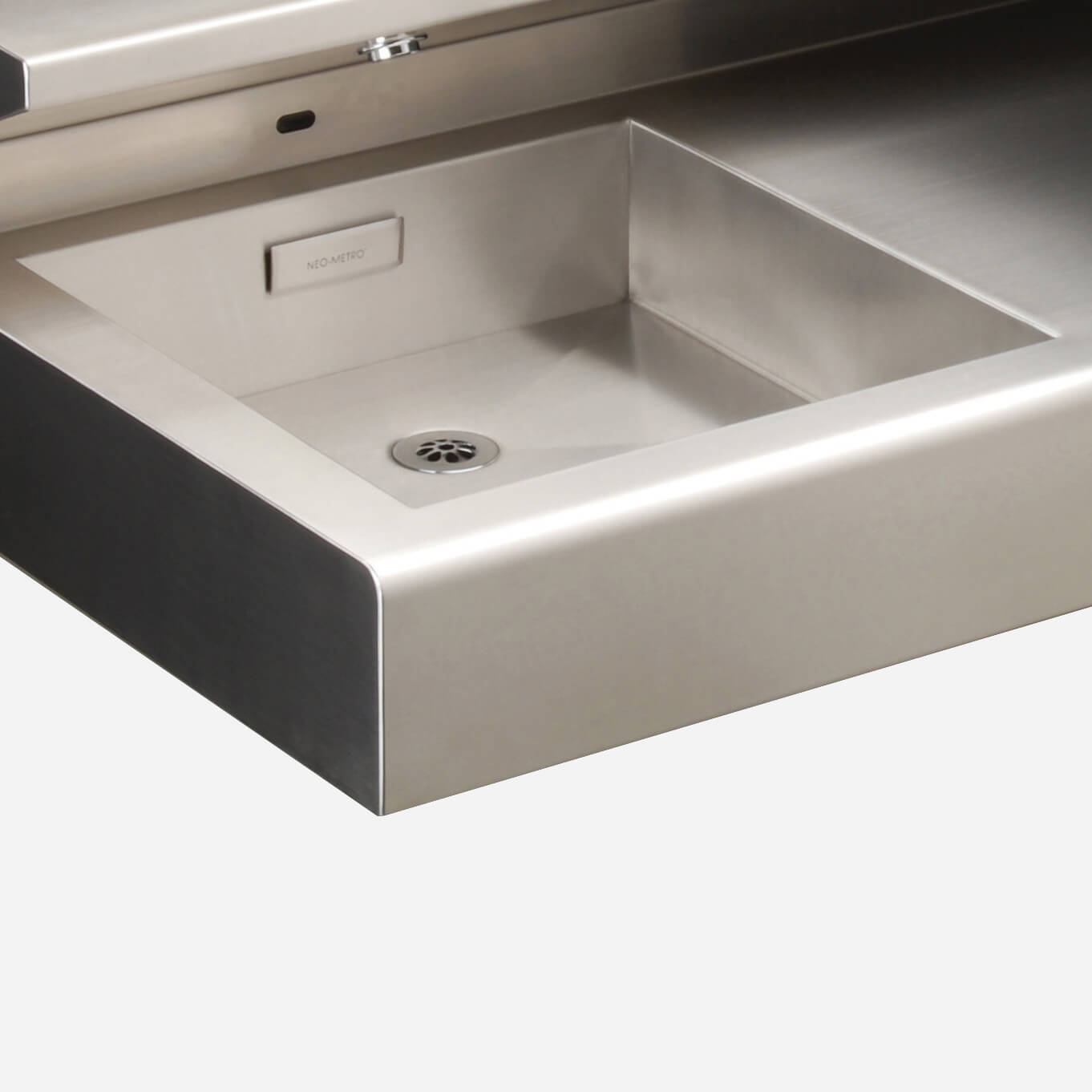

Square bowl
14.75" x 15" (375 x 381 mm)
-SQR Satin Finish
-SQR-HP Mira High Polish
Popular Options
See submittal for other possible options
