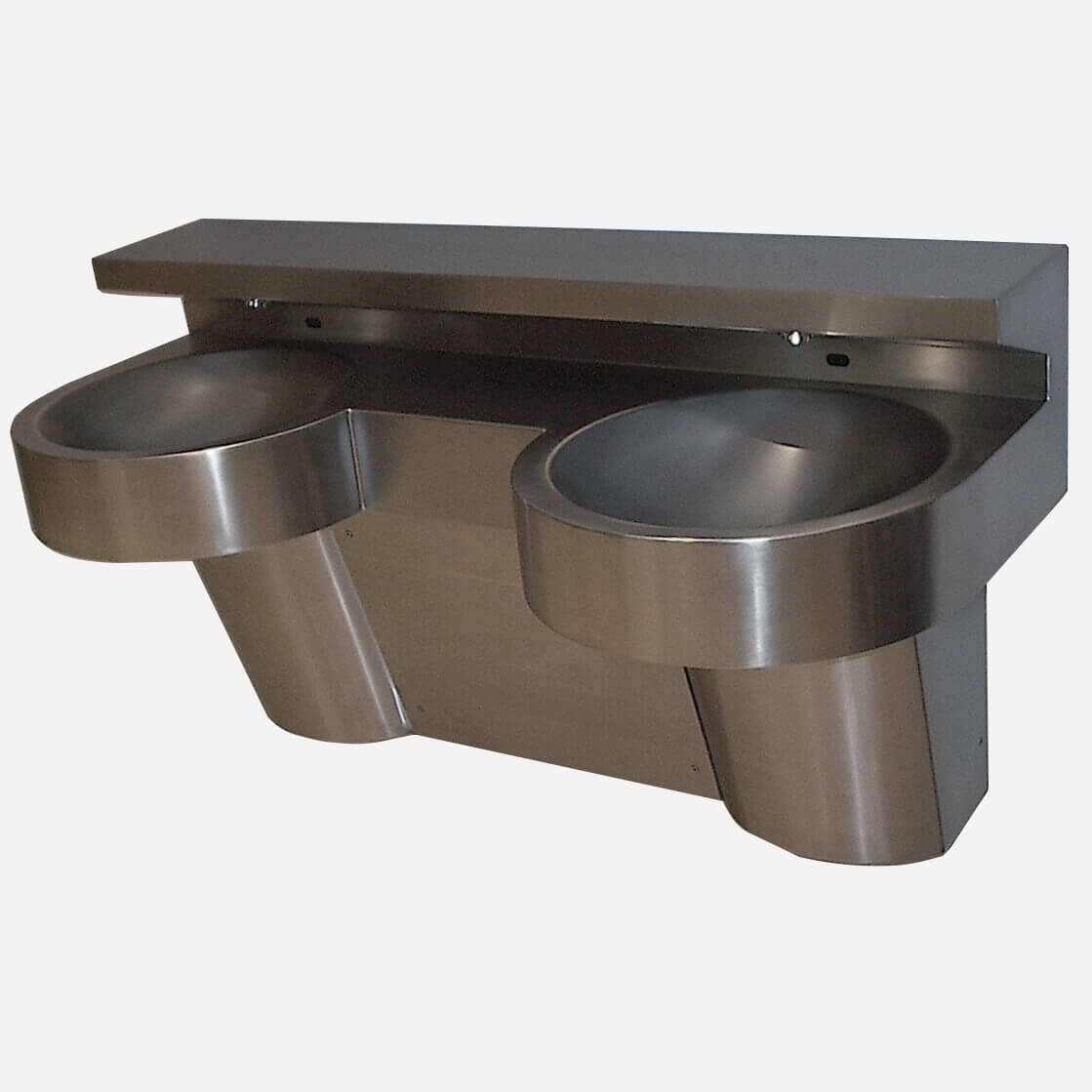

System M2 Stainless Steel Bathroom Sinks, Curved
Model 8980 Series Washbasins are straight curved and are available in one, two, three or four station units. These units offer the look and feel of commercial-grade designer basins and counter tops.
The System M2 solution merges creative design with ease of installation and care. One plumbing connection is required for multiple basin arrangements.
Available in a variety of modern styles and options including soap dispensers, valving, bottom enclosures and tankless water heaters.
Each standard height washbasin complies with ANSI, UFAS and ADA requirements. Please check your local plumbing codes.
- 1–4 stations (19” to 109”)
- Two bowl shapes—round or D-shaped—in standard satin finish or high-polish Mira finish
- Seamlessly welded stainless steel construction ensures a sleek, modern vanity and a more hygienic bathroom surface—easier to clean with fewer places for particles to accumulate
- Ideal for both new construction or easy retrofit
- Complies with ADA, ANSI, ASA, UFAS, and CSA requirements
- Water for the sink may be tempered using a thermostatic mixing valve available optionally through Neo-Metro. The valve is ASSE 1070 compliant, rated at 4.5 gallons (17 liters) per minute at 45 PSI (310 kPa)
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Two Station Curved Front System M2 | 126 KB | |||
| | Curved Front System M2: 8980-1 (1-Station), 8980-2 (2-Station), 8980-3 (3-Station), 8980-4 (4-Station) | 580 KB | |||
 | | System M2 Stainless Steel Bathroom Sinks, Curved [8980-1-RL, 8980-1-RLD, 8980-2-BKS-RL-DMJ-H, 8980-3-BKS-RL-DMJ-H 8980-4-RLD-IS, 8980-4-RL-IS.rfa] | 0 | 2 MB | ||
| | System M2 Stainless Steel Bathroom Sinks, Curved [8980-1-RL, 8980-1-RLD, 8980-2-BKS-RL-DMJ-H, 8980-3-BKS-RL-DMJ-H 8980-4-RLD-IS, 8980-4-RL-IS.rfa] | 0 | 4 MB | ||
| | Faucet Option for System M2 | 0 | 126 KB | ||
| | Soap Option for System M2 | 0 | 151 KB | ||
| | Sensor Operated Valve Option for System M2 | 0 | 161 KB | ||
| | Range Adjustment Sensor Operated Valve on System M2 or Wash Fountains | 0 | 179 KB | ||
| | Close Elbow used on Ebb and System M2 | 0 | 140 KB | ||
| | One Station Curved Front System M2 | 0 | 118 KB | ||
| | One Station Curved Front System M2 with Backsplash | 0 | 152 KB | ||
| | One Station Curved Front System M2 with Shelf | 0 | 153 KB | ||
| | Two Station Curved Front System M2 with Backsplash | 0 | 160 KB | ||
| | Two Station Curved Front System M2 with Shelf | 0 | 133 KB | ||
| | Three Station Curved Front System M2 | 0 | 127 KB | ||
| | Three Station Curved Front System M2 with Backsplash | 0 | 166 KB | ||
| | Three Station Curved Front System M2 with Shelf | 0 | 138 KB | ||
| | Four Station Curved Front System M2 | 0 | 129 KB | ||
| | Four Station Curved Front System M2 with Backsplash | 0 | 162 KB | ||
| | Four Station Curved Front System M2 with Shelf | 0 | 133 KB | ||
| | Typical Install for Curved Front System M2 with Hand Operated Valve | 0 | 282 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Sinks, Basins & Troughs Brochure (pdf) | 0 | 2 MB | ||
| | 8980 Series or 8981 Series -H (Hand Operation) | 0 | 111 KB | ||
| | Cleaning guidelines for Neo-Metro products | 0 | 252 KB | ||
| | Most significant project Morris Group International family has ever work on | 0 | 87 KB |
Specifications
| Accessibility | ADA Compliant |
| Material | Stainless Steel |
| Mount | Wall Mounted |
| Certifications | ASME A112.18.1, CSA B125.1, cUPC |
| Basin Shape | Round, D-Shaped |
| Stations | 2 Station, 3 Station, 4 Station |
| Brand | System M2, Acorn ConTrols® Inside |

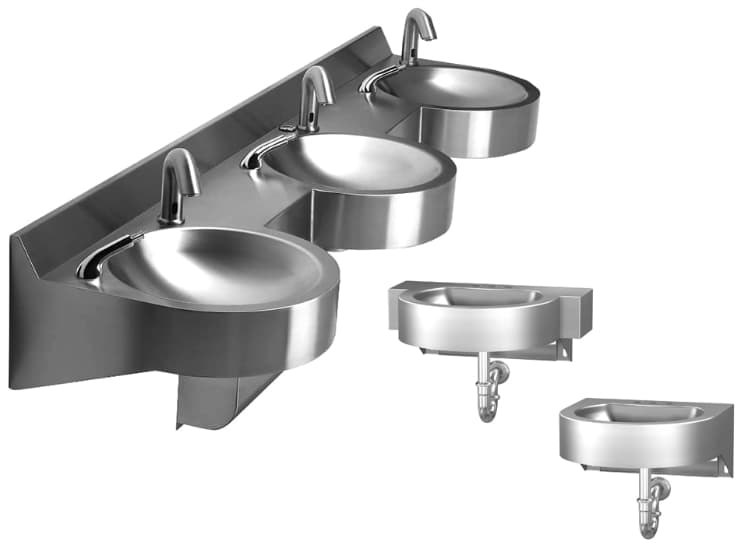

Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | BKS (Stainless Steel Deck) | Option: Splash Panels - 3" 60° Backsplash on Stainless Steel Deck | ||
 | DMJ-H | Faucet: Push Button, Deck-Mounted J-Spout | ||
 | DMJ-SO | Faucet: Plug-In, Sensor-Activated, Deck-Mounted J-Spout | ||
 | DML-H | Faucet: Push Button, Deck-Mounted L-Spout | ||
 | DML-SO | Faucet: Plug-In, Sensor-Activated, Deck-Mounted L-Spout | ||
 | ECL | Option: Deck Extension, Left | ||
 | ECR | Option: Deck Extension, Right | ||
 | H0 | Option: Faucet Mounting - No Hole Faucet | ||
 | H1 | Option: Faucet Mounting - Single Hole | ||
 | H38 | Option: Faucet Mounting - 8" Centerset | ||
 | IS | Option: Integral Shelf on Stainless Steel Deck | ||
 | OF | Option: Basin Overflow | ||
 | PDM | Option: Soap - Metering Liquid Soap Dispenser | ||
 | RL | Option: Bowl Style - Round | ||
 | RLD | Option: Bowl Style - D-Shape |
Models
Typical deck styles with model numbers per station

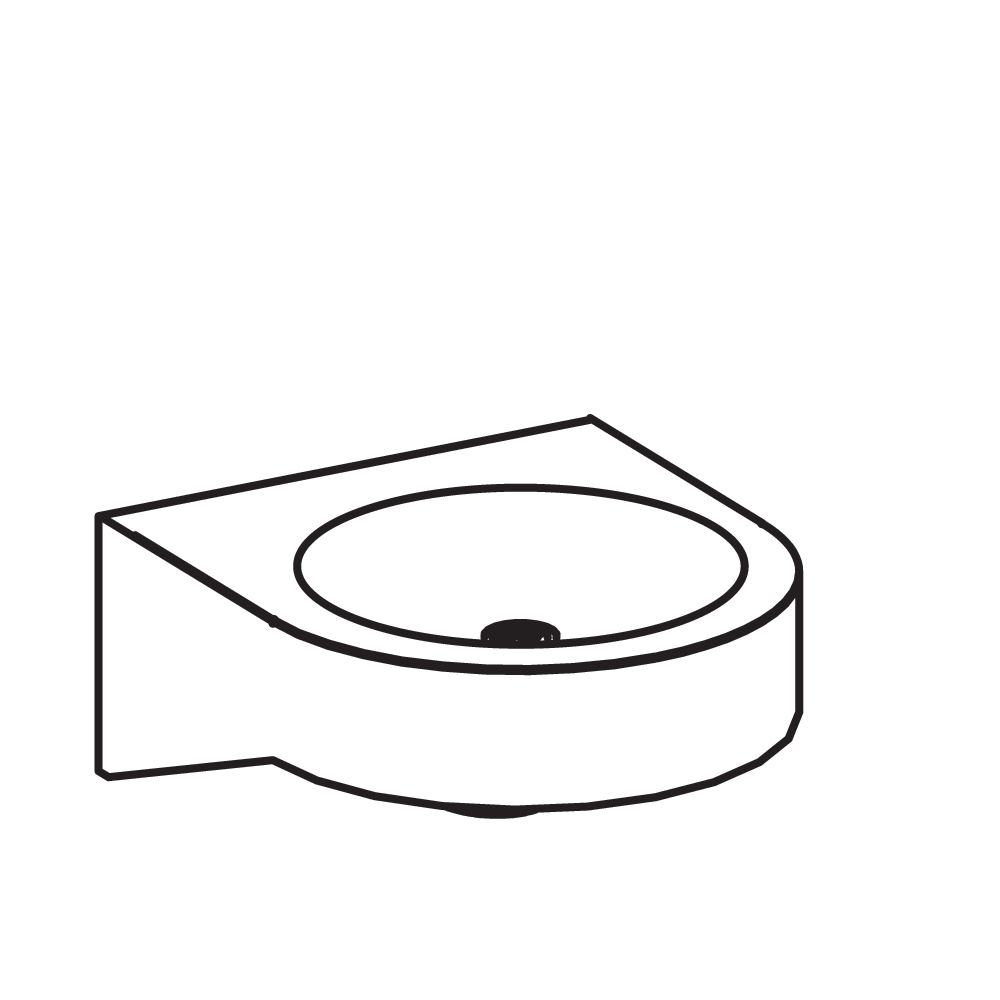

Standard deck style
8980-1
One-Station 19" (483 mm)
install guide
8980-2
Two-Station 49" (1,245 mm)
install guide
8980-3
Three-Station 79" (2,007 mm)
install guide
8980-4
Four-Station 109" (2,769 mm)
install guide
Suggested deck mounted faucets available
-DMJ | J-Spout Faucet; -DML | L-Spout
install guide faucet
install guide pushbutton operation
install guide sensor operation
adjust guide 9 volt sensor

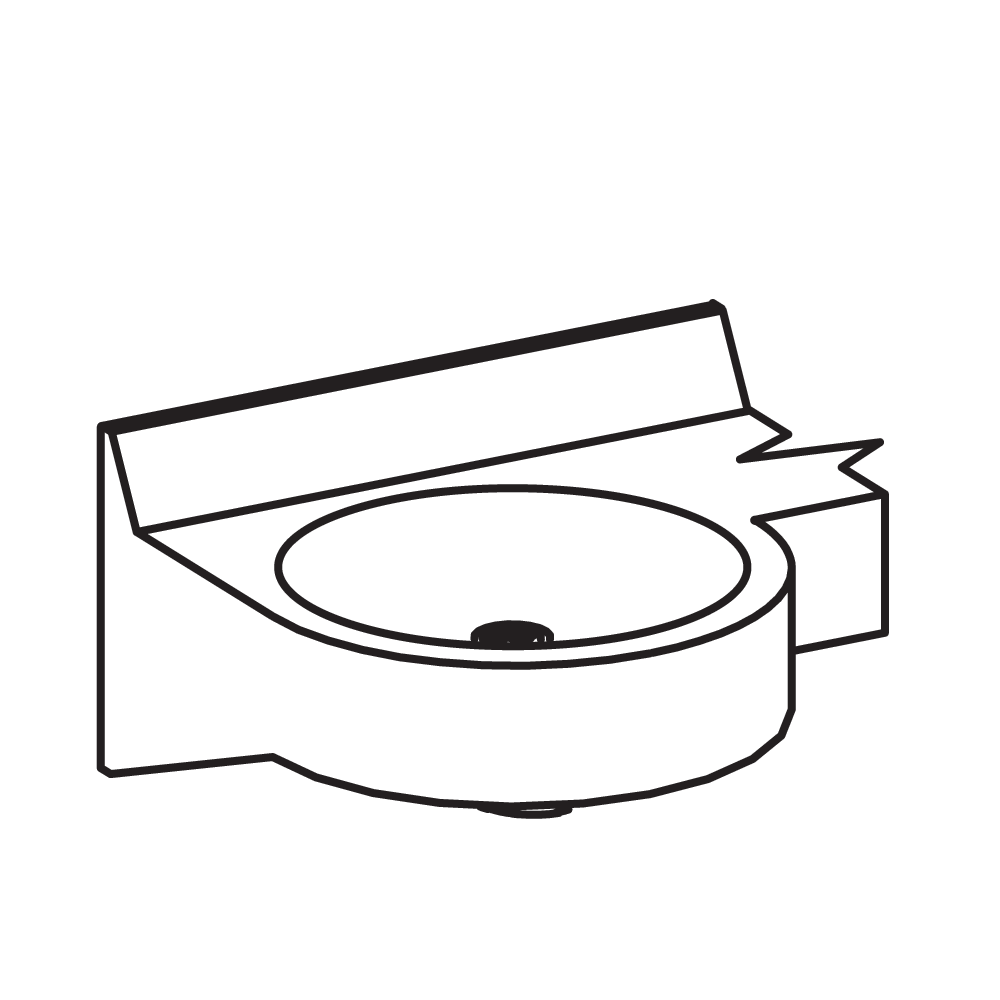

With backsplash
8980-1-BKS
One-Station 19" (483 mm)
install guide
8980-2-BKS
Two-Station 49" (1,245 mm)
install guide
8980-3-BKS
Three-Station 79" (2,007 mm)
install guide
8980-4-BKS
Four-Station 109" (2,769 mm)
install guide
Suggested deck mounted faucets available
-DMJ | J-Spout Faucet;
-DML | L-Spout
install guide faucet
install guide pushbutton operation
install guide sensor operation
adjust guide 9 volt sensor

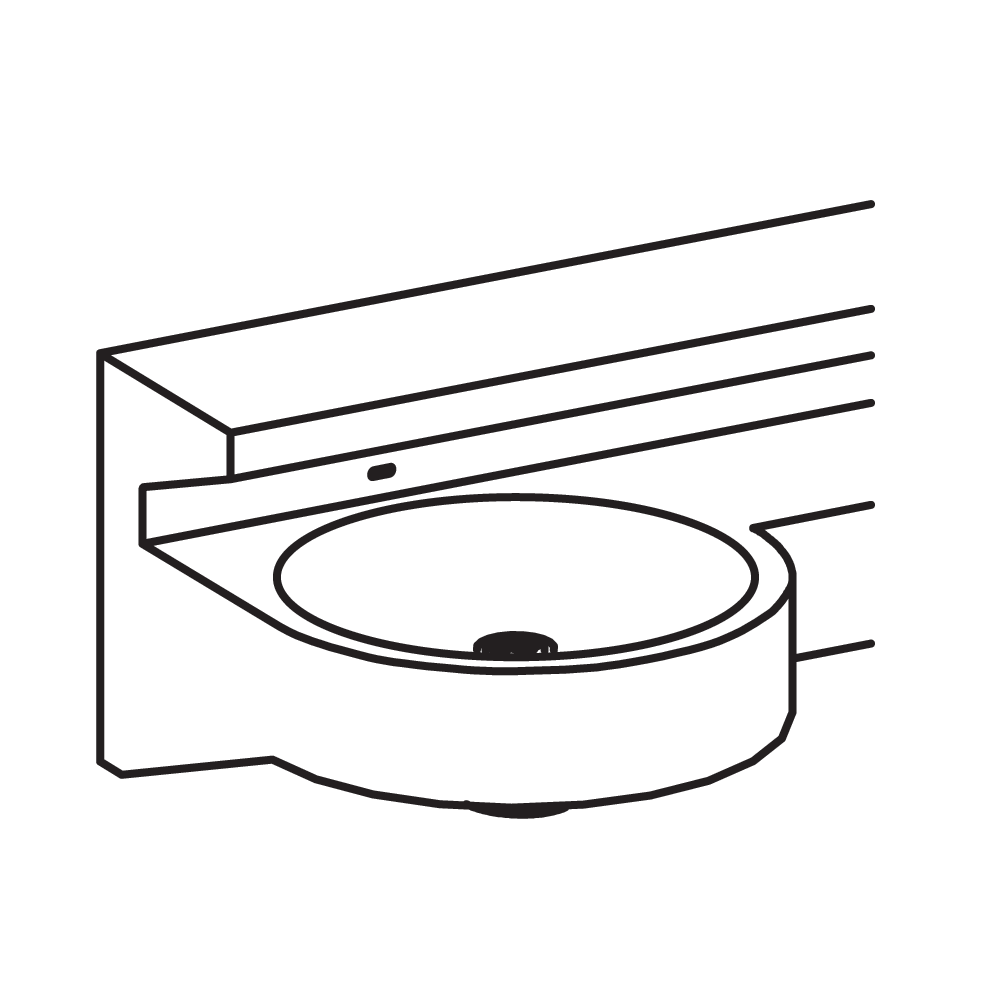

With integral shelf
8980-1-IS
One-Station 19" (483 mm)
install guide
8980-2-IS
Two-Station 49" (1,245 mm)
install guide
8980-3-IS
Three-Station 79" (2,007 mm)
install guide
8980-4-IS
Four-Station 109" (2,769 mm)
install guide
Undershelf sensor-activated spouts are provided per station install guide sensor operation
Bowl type
Round bowl
15.625" (397 mm) diameter
-RL Satin Finish
-RL-HP Mira High Polish
D-shape bowl
15.625" x 13.25" (397 x 338 mm)
-RLD Satin Finish
-RLD-HP Mira High Polish
Popular Options
See submittal for other possible options
