Model 3800 Series
Slab-Edge® Solid Surface Bathroom Trough Sink
Counter with Integral Basins is intended to be mounted to to a finished wall to accommodate ADA. The washbasin is constructed of Corterra® solid surface resin.
Slab-Edge® Solid Surface Sinks feature:
- Wall-mounted integral sink with divided basins available in the following widths:
- 30" (762 mm) one-station sloped integral sink
- 56" (1,419 mm) two-station sloped integral sink
- 80” (2,032 mm) three-station sloped integral sink
- ADA, OBC, CB Compliant
- Hinged P-Trap Enclosure is included to allow easy maintenance and to conceal valve, supply and waste connections
- Optional sensor operation
- Water for the sink may be tempered using a thermostatic mixing valve available optionally through Neo-Metro. The valve is ASSE 1070 compliant, rated at 4.5 gallons (17 liters) per minute at 45 PSI (310 kPa)
Moonstone Metallic
Cotton Tail
Meteorite
Parchment
Blanco Matte
Blanco
Slab-Edge® series integrated sinks are constructed of a solid surface resin. All sinks are available in the colors listed.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Slab Edge® Wall Mounted Solid Surface Basin 2 Station - 56" Width; includes repair parts list | 2 MB | |||
| | Slab-Edge® Wall Mounted Cast Solid Surface Basin [3801 | one-station; 3802 | two-station; 3803 | three-station] | 300 KB | |||
 | | Slab-Edge® Wall Mounted Cast Solid Surface Basin [3801 1-station 30" wide; 3802 2-station 56" wide; 3803 3-station 80" wide] | 0 | 359 KB | ||
| | Slab-Edge® Wall Mounted Cast Solid Surface Basin [3801 1-station 30" wide; 3802 2-station 56" wide; 3803 3-station 80" wide] | 0 | 981 KB | ||
| | Slab Edge® Wall Mounted Solid Surface Basin 1 Station 30" Wide; includes repair parts list | 0 | 2 MB | ||
| | Slab Edge® Wall Mounted Solid Surface Basin 3 Station - 80" width; includes repair parts list | 0 | 2 MB | ||
| | Material Data Sheet for Acorn Corterra® solid surface including ANSI and CSA Standards Compliance, Burning Characteristics Test | 0 | 460 KB | ||
| | Sinks, Basins & Troughs Brochure (pdf) | 0 | 2 MB | ||
| | Slab-Edge - Simplicity in Installation and Design Models 3801, 3802, 3803 | 0 | 469 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
 | | How to Repair Minor Damage on a Neo-Metro Cast Solid Surface (video) | 0 | 132 KB | ||
| | Featuring Dyson Airblade™ Tap Faucet & Hand Dryer HD | 0 | 133 KB |
Specifications
| Models | 3801, 3802, 3803 |
| Legacy Models | 9151, 9152, 9153 |
| Accessibility | ADA Compliant |
| Material | Corterra® Solid Surface |
| Mount | Wall Mounted |
| Certifications | CSA B125.1, ICPA SS-1 |
| Stations | 2 Station, 3 Station |
| Waste Location | Wall Waste |
| Solid Surface Color | -OCC18 | Parchment, -OCC19 | Cotton Tail, -OCC20 | Meteorite, -OCC21 | Moonstone Metallic, -AMA | SteriTouch® Antimicrobial Additive, -OCC11 | Blanco (Glossy), -OCC11M | Blanco Matte |
| Steel Finish | -EG-22 | Black Matte Powder Coated Stainless Steel, -EG-10 | White Gloss Powder Coated Stainless Steel, -EG-00 | Custom Powder Coating, Enviro-Glaze® Powder Coating |
| Brand | Acorn ConTrols® Inside, Slab™ |
| Patent | D745,120 for Model 3801 |
Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | DMJ-H | Faucet: Push Button, Deck-Mounted J-Spout | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | H0 | Option: Faucet Mounting - No Hole Faucet | ||
 | H1 | Option: Faucet Mounting - Single Hole | ||
 | H34 | Option: Faucet Mounting - 4" Centerset | ||
 | H38 | Option: Faucet Mounting - 8" Centerset | ||
 | MC (solid surface/resin decks) | Option: Deck Mounting - Standard Wall-Mounted Arm & Carrier | ||
 | PDM | Option: Soap - Metering Liquid Soap Dispenser | ||
 | PT | Option: Daisy Strainer with Tailpiece and 1-1/2" P-Trap | ||
 | PTC (P-Trap assembly) | Option: Chrome Plated Brass Daisy Strainer and 1-1/2" P-Trap | ||
 | SO (faucet) | Faucet: Plug-in Sensor Operated Faucet for Neo-Metro Sink | ||

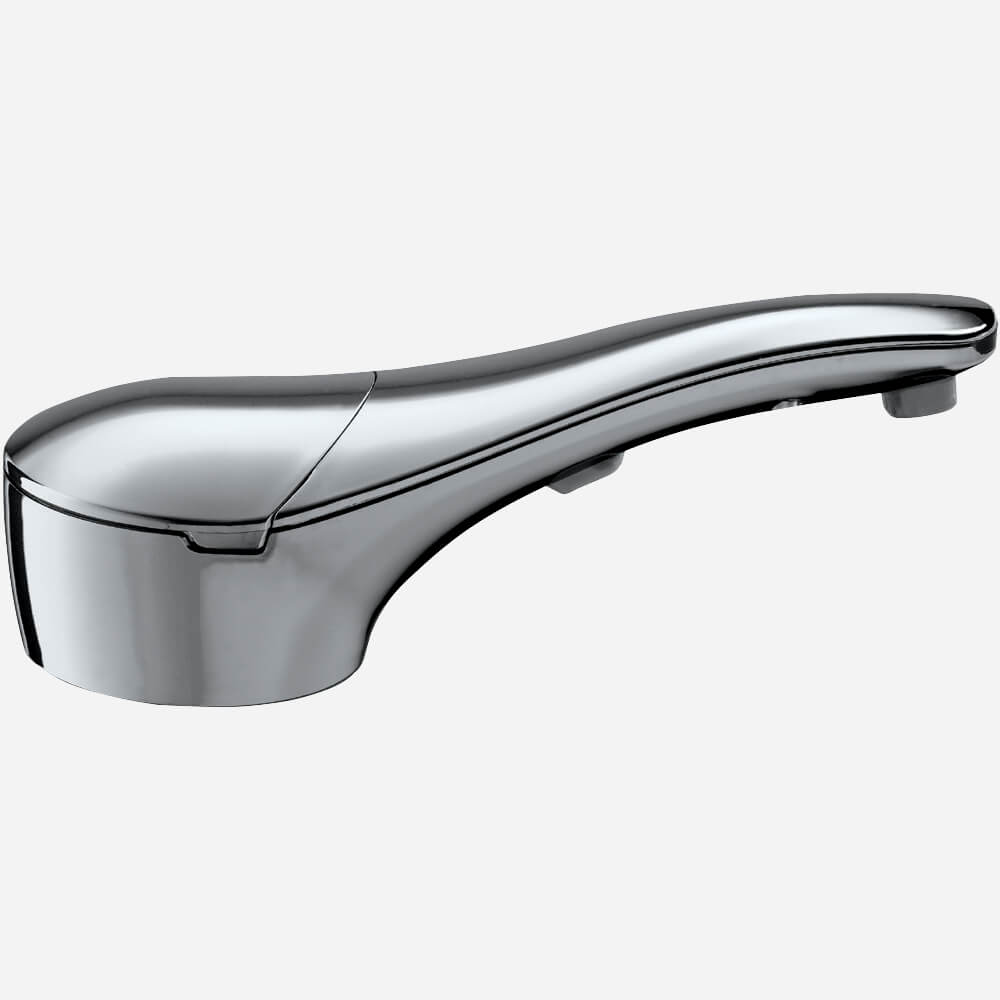

 | SOS | Option: Soap - Sensor-Activated, Deck-Mounted Dispenser | ||
 | WD04 | Faucet: Deck-Mounted Dyson® Airblade™ Wash+Dry Faucet-Hand Dryer |
Colors
Solid Surface Color
OCC18 | Parchment
OCC19 | Cotton Tail
OCC20 | Meteorite
OCC21 | Moonstone Metallic
AMA | SteriTouch® Antimicrobial Additive
OCC11 | Blanco (Glossy)
OCC11M | Blanco Matte
Steel Finish
EG-22 | Black Matte Powder Coated Stainless Steel
EG-10 | White Gloss Powder Coated Stainless Steel
EG-00 | Custom Powder Coating
Enviro-Glaze® Powder Coating
Models
Typical models are shown below

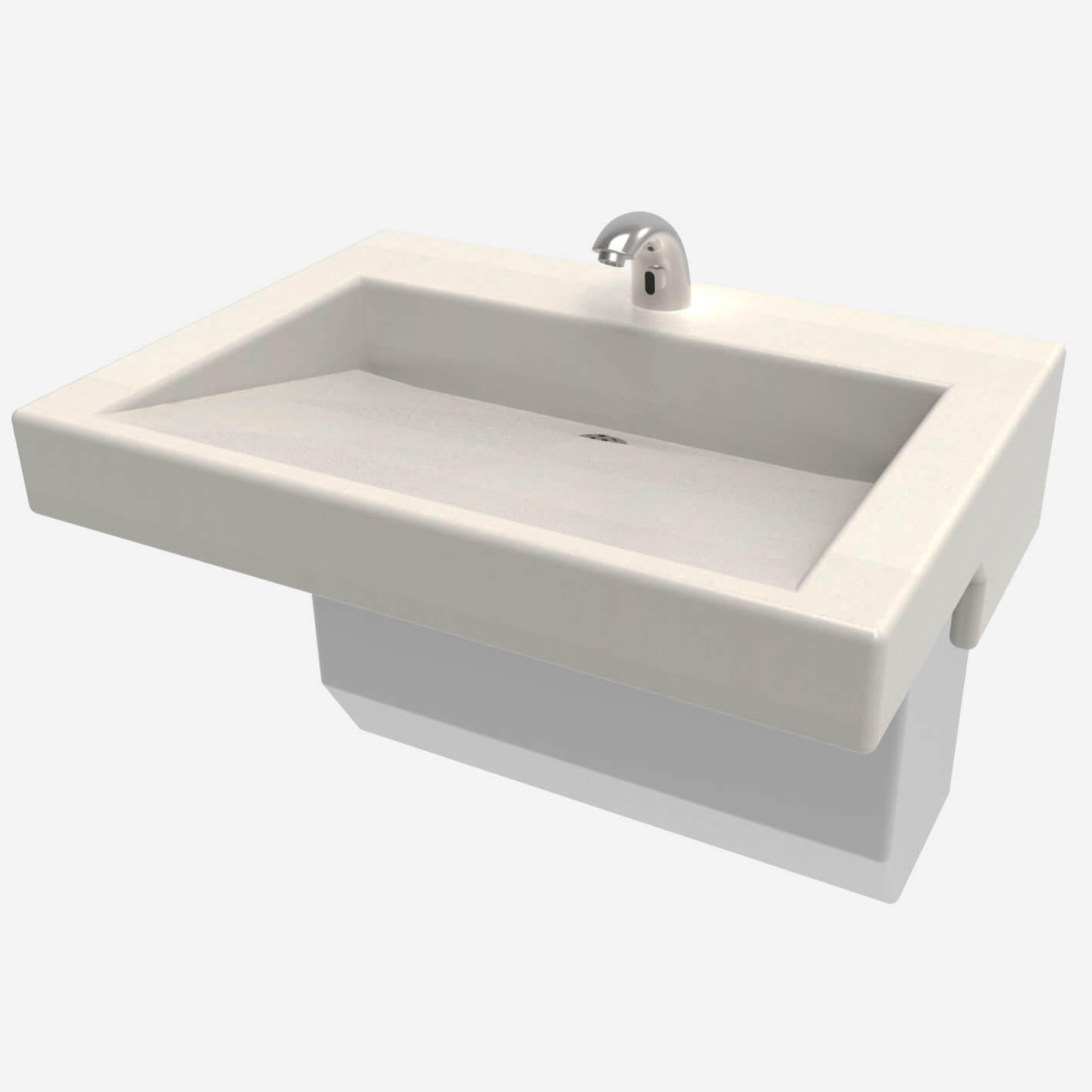

Model Number 3801
Single station 30" (762 mm) width
shown in Blanco Matte
Corterra® solid surface
submittal | install guide

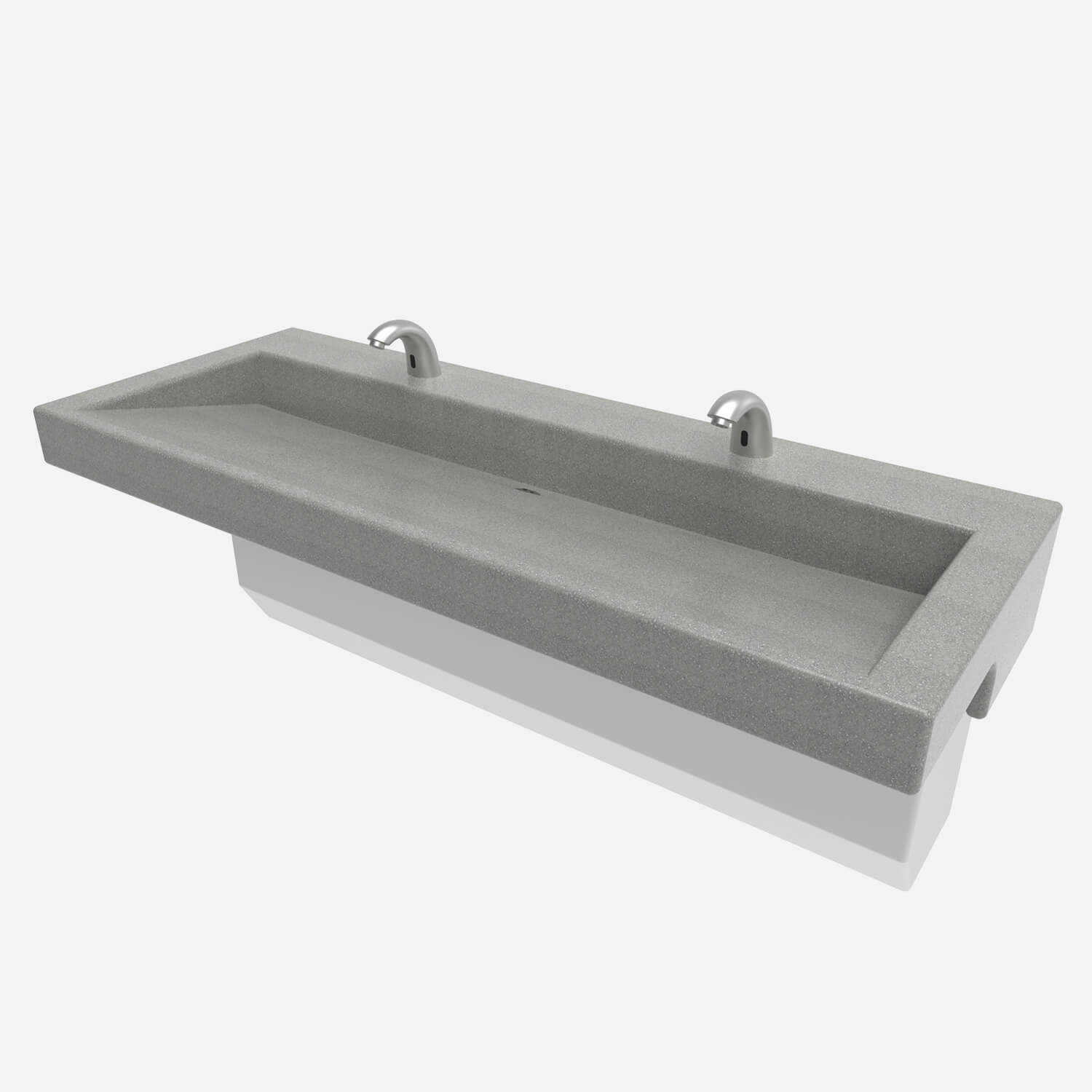

Model Number 3802
Two station 56" (1,422 mm) width
shown in Meteorite
Corterra® solid surface
submittal | install guide

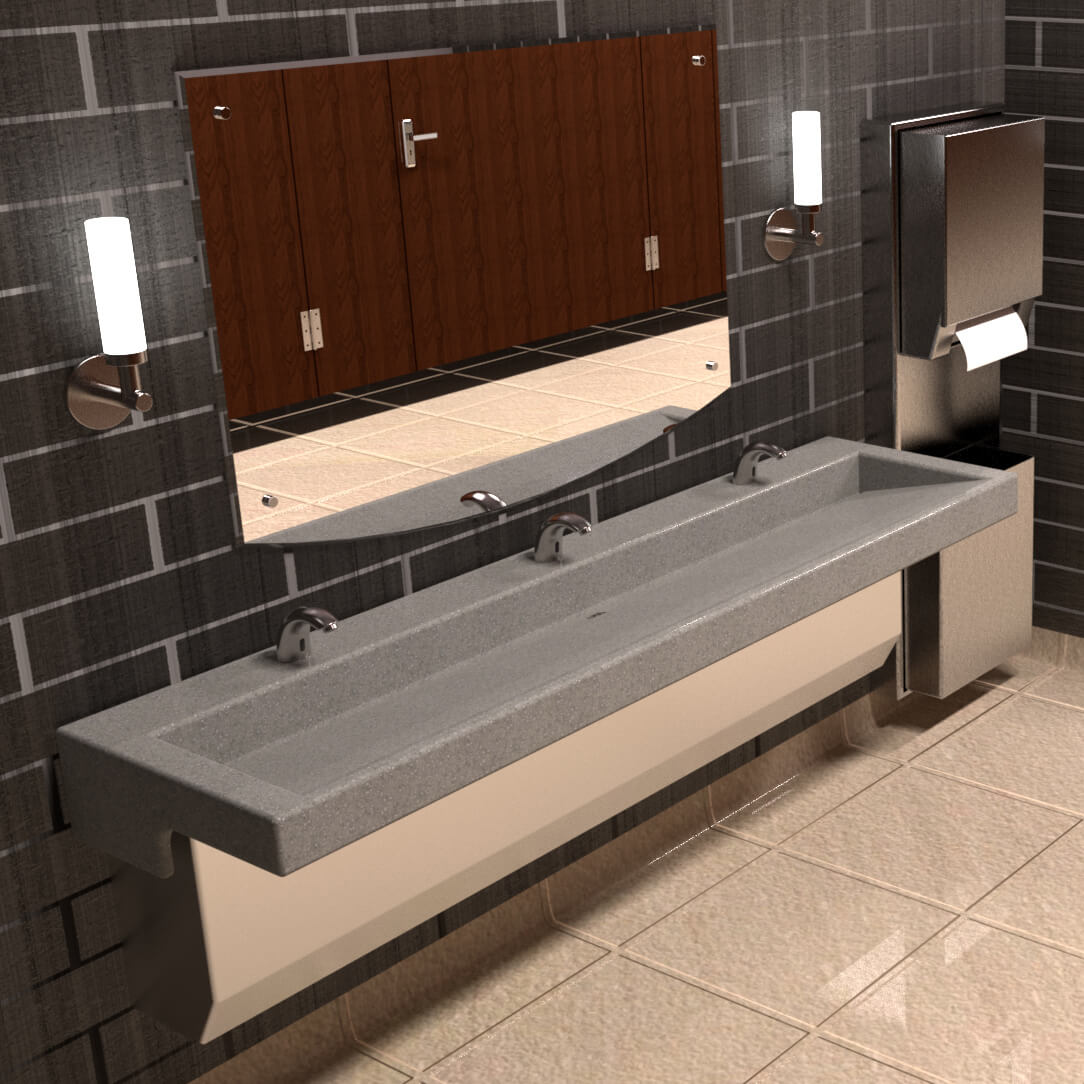

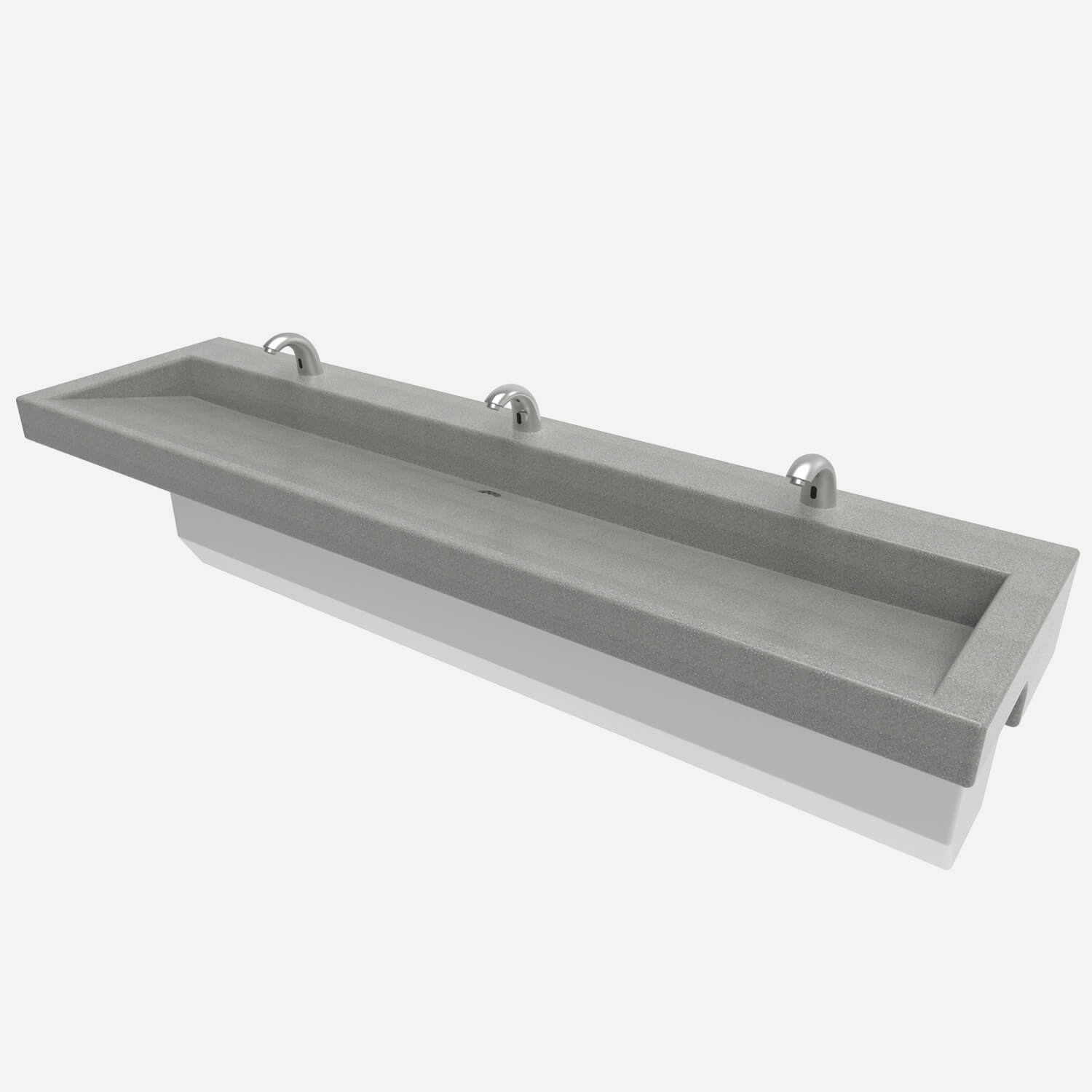

Model Number 3803
Three-Station 80" (2,032 mm) width
shown in Moonstone Metallic
Corterra® solid surface
submittal | install guide
