Model 9121 and 9141
PAT™ Solid Surface, Wall-Mounted Sink

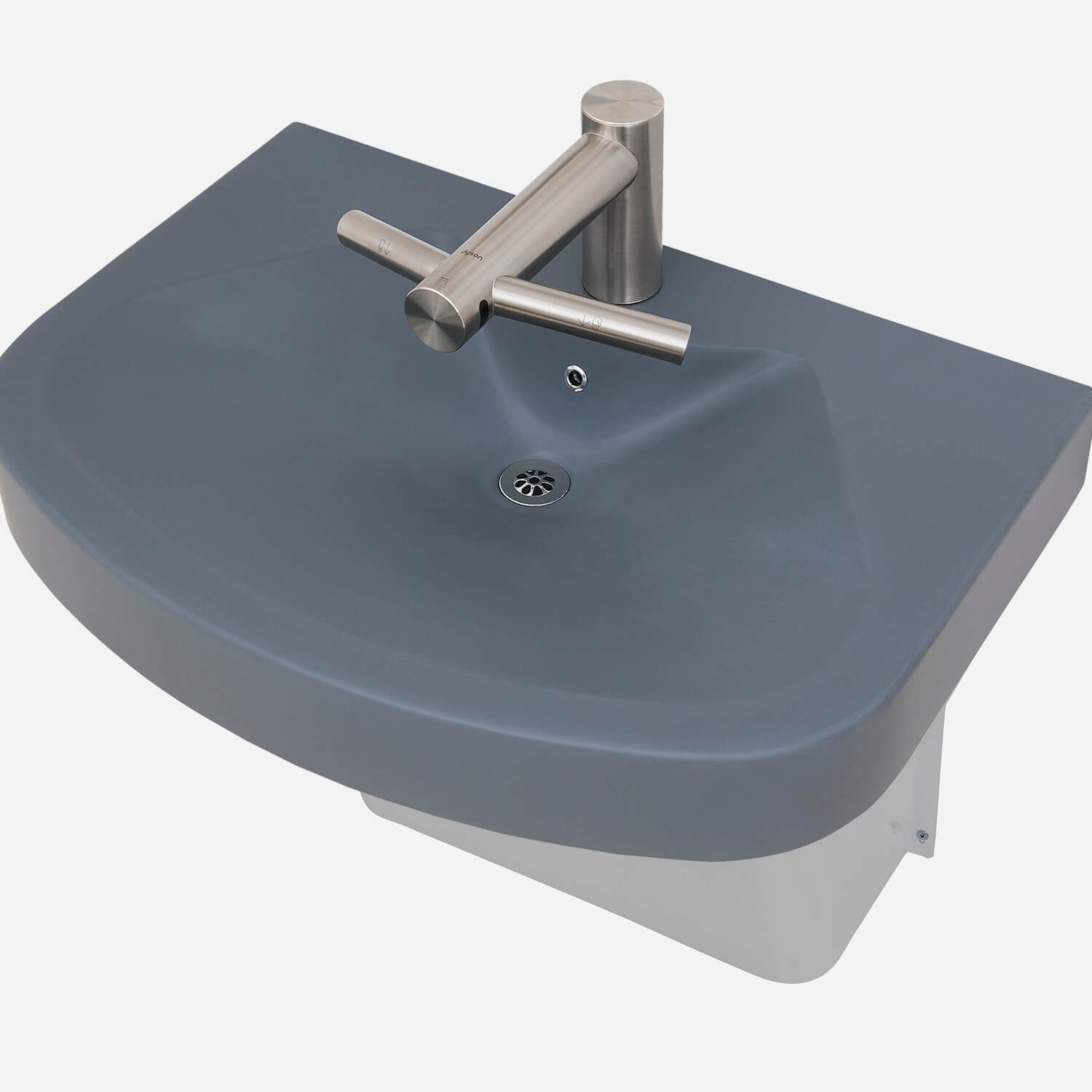

Neo-Metro offers this stylish solid surface PAT Basin. Two styles of the PAT basins are available. A removable stainless steel trap covers the drain and valves providing easy access.
Water for the sink may be tempered using a thermostatic mixing valve available optionally through Neo-Metro. The valve is ASSE 1070 compliant, rated at 4.5 gallons (17 liters) per minute at 45 PSI (310 kPa)
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Wall Mounted PAT Basin 9121 and 9141 Style | 1 MB | |||
| | 9121 PAT Basin with Round Front Edge | 388 KB | |||
 | | Neo-Metro 9121 Pat Basin with Single Hole Faucet Punching and Floor Mounted Commercial Wall Carrier | 0 | 316 KB | ||
| | Neo-Metro 9121 Pat Basin with Single Hole Faucet Punching and Floor Mounted Commercial Wall Carrier | 0 | 234 KB | ||

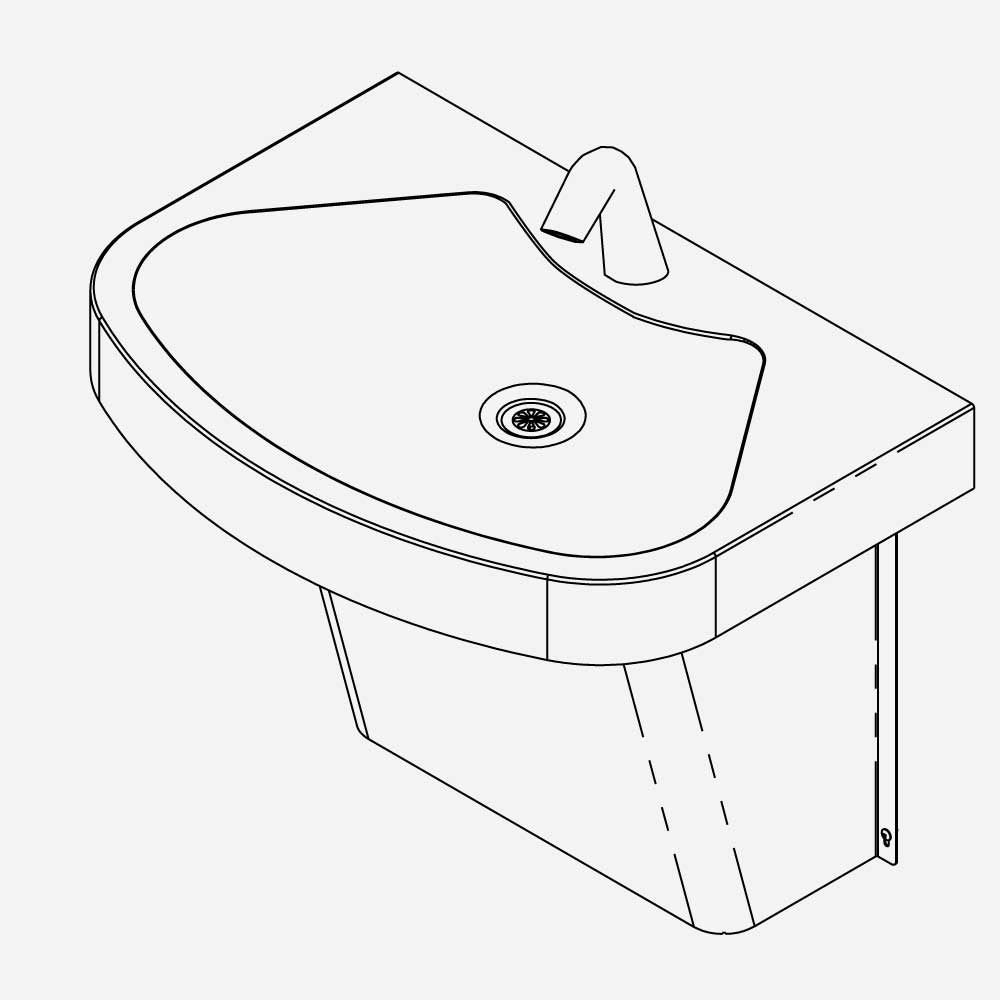

| | 9141 Basin with Large Curved Front | 0 | 298 KB | ||
| | Installing AB09 Faucet/Hand Dryer | 0 | 4 MB | ||
| | Installing AB11 Faucet/Hand Dryer | 0 | 19 MB | ||
| | Material Data Sheet for Acorn Corterra® solid surface including ANSI and CSA Standards Compliance, Burning Characteristics Test | 0 | 460 KB | ||
| | Sinks, Basins & Troughs Brochure (pdf) | 0 | 2 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Cleaning guidelines for Neo-Metro products | 0 | 252 KB | ||
 | | How to Repair Minor Damage on a Neo-Metro Cast Solid Surface (video) | 0 | 132 KB | ||
| | 9121 PAT Basin with Round Front Edge | 0 | 388 KB |
Specifications
| Accessibility | ADA Compliant |
| Steel Finish | -S | Satin Finish for PAT Basin Trap, -EG-10 | White Gloss Powder Coated for PAT Basin Trap |
| Solid Surface Color | -AMA | SteriTouch® Antimicrobial Additive, -OCC18 | Parchment, -OCC19 | Cotton Tail, -OCC20 | Meteorite, -OCC21 | Moonstone Metallic, -OCC11 | Blanco (Glossy), -OCC11M | Blanco Matte |
| Material | Corterra® Solid Surface |
| Mount | Wall Mounted |
| Options | -TE-S | Satin Finish Stainless Steel Trap Enclosure for PAT Basin, -TE-EG-10 | White Gloss Powder Coated Stainless Steel Trap Enclosure for PAT Basin, -MC | Wall Mounted Carrier/Arm, -BKS | Solid Surface Back Splash for PAT Basin, -MC-FLR | Floor Mounted Carrier/Arm, -ST70CP-12 | ASSE 1070 Tempering Valve, -OF | Basin Overflow Waste Outlet |
| Faucet Configuration | -WD04 | Dyson® Deck Mounted AirBlade™ Faucet-Hand Dryer Supplied, -WD06 | Dyson® Wall Mounted AirBlade™ Wash+Dry Faucet-Hand Dryer Supplied, -H0 | No Faucet Hole (can imply customer supplied wall mounted faucet), -H1 | Single Hole Provided for Customer Supplied Faucet |
| Environmental/Health | Lead Free, Limits Paper Towel Usage, HEPA Filtration, Space-Saving Design |
| Certifications | ICPA SS-1, cUPC |
| Patent | U.S. Design Patent, D727,475 for Model 9121, D744,074 for Model 9141 |
| Brand | Acorn ConTrols® Inside, PAT™ |
Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | BKS (solid surface) | Option: Splash Panels - Backsplash only | ||
 | H0 | Option: Faucet Mounting - No Hole Faucet | ||
 | H1 | Option: Faucet Mounting - Single Hole | ||
 | WD04 | Faucet: Deck-Mounted Dyson® Airblade™ Wash+Dry Faucet-Hand Dryer | ||
 | WD06 | Faucet: Wall-Mounted Dyson® Airblade™ Wash+Dry Faucet-Hand Dryer |
Colors
Solid Surface Color
OCC18 | Parchment
OCC19 | Cotton Tail
OCC20 | Meteorite
OCC21 | Moonstone Metallic
OCC11 | Blanco (Glossy)
OCC11M | Blanco Matte
AMA | SteriTouch® Antimicrobial Additive
Steel Finish
S | Satin Finish for PAT Basin Trap
EG-10 | White Gloss Powder Coated for PAT Basin Trap
Models
Model 9121
Model 9141
