Model 8935 Series
Neo-Basin Stainless Steel, Wall-Mounted Sink

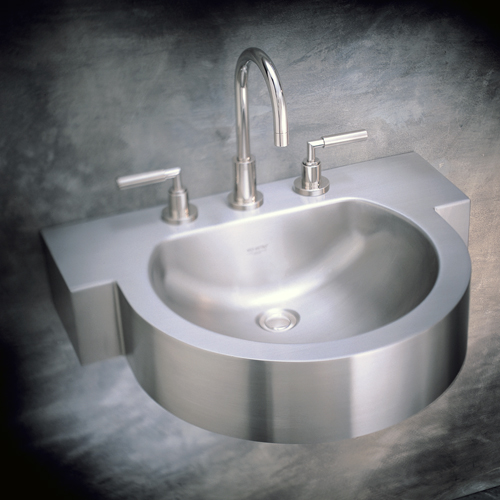

Neo-Basin is a D-shaped wall mounted stainless steel wash basin. The basin features an inner D-shaped bowl. Model 8935 features 2.5" extended counter on both sides while Model 8936 does not. A trap enclosure is standard on both versions.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Basic Install of Neo-Basin | 136 KB | ||
| | Neo-Basin with Side Shelves | 164 KB | ||
| | Neo-Basin (No Side Shelves) | 159 KB | ||
| | Option -OF | 140 KB | ||

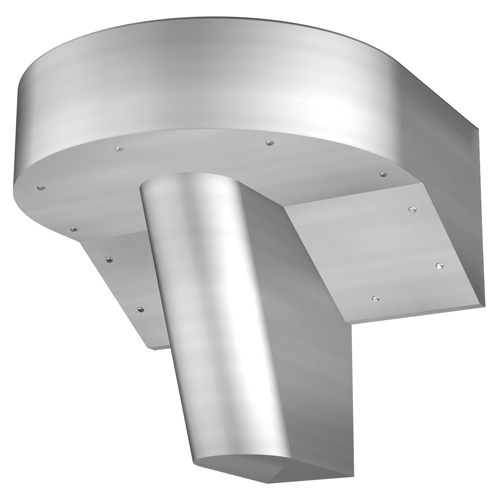

| | Enclosed Bottom on 8935 (similar for 8936) | 167 KB | ||
| | Sinks, Basins & Troughs Brochure (pdf) | 2 MB | ||
| | Cleaning guidelines for Neo-Metro products | 252 KB | ||
| | Custom Project, Kauffman Case Study | 1 MB | ||
 | | Neo-Basin with Enclosed Bottom - No Side Shelves | 452 KB | ||
 | | Neo-Basin with Enclosed Bottom - No Side Shelves | 133 KB |
Specifications
| Accessibility | ADA Compliant |
| Steel Finish | Satin Finish Stainless Steel [STANDARD - plain model number], -EG-22 | Black Matte Powder Coated Stainless Steel, -EG-10 | White Gloss Powder Coated Stainless Steel, -HP | Mira High Polish Stainless Steel |
| Material | Stainless Steel |
| Mount | Wall Mounted |
| Faucet Configuration | -H0 | No Faucet Hole (can imply customer supplied wall mounted faucet), -H1 | Single Hole Provided for Customer Supplied Faucet, -H38 | 3 Holes with 8 Inch Centerset Provided for Customer Supplied Faucet |
| Environmental/Health | Contains Recycled Material, Recyclable |
| Basin Shape | D-Shaped |
| Options | -OF | Basin Overflow Waste Outlet |
| Certifications | ASME A112.18.1, CSA B125.1, cUPC |
| Patent | U.S. Design Patent D455,200 |
Colors
Steel Finish
![Satin Finish Stainless Steel [STANDARD - plain model number]](https://assets.morrisgroupint.com/assets/2dc4b603-3210-47b1-a3c9-df9f8af60dd7.jpg)
Satin Finish Stainless Steel [STANDARD - plain model number]
EG-22 | Black Matte Powder Coated Stainless Steel
EG-10 | White Gloss Powder Coated Stainless Steel

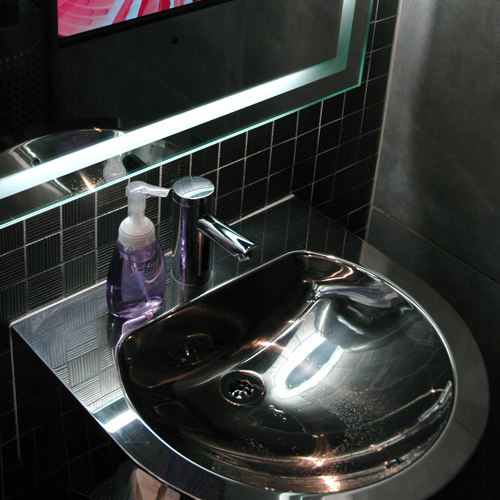

HP | Mira High Polish Stainless Steel
