HWS Commercial Stainless Steel Sink

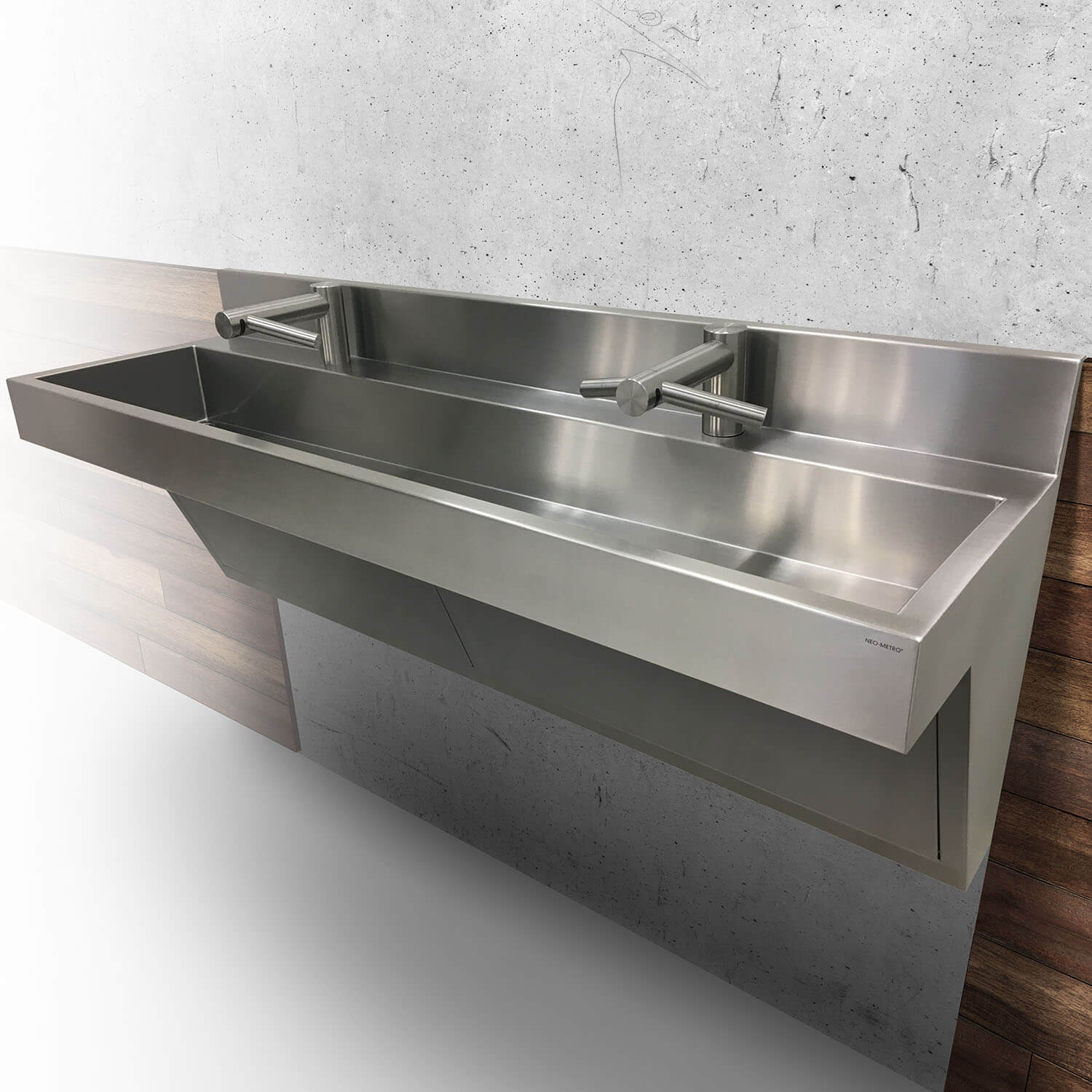

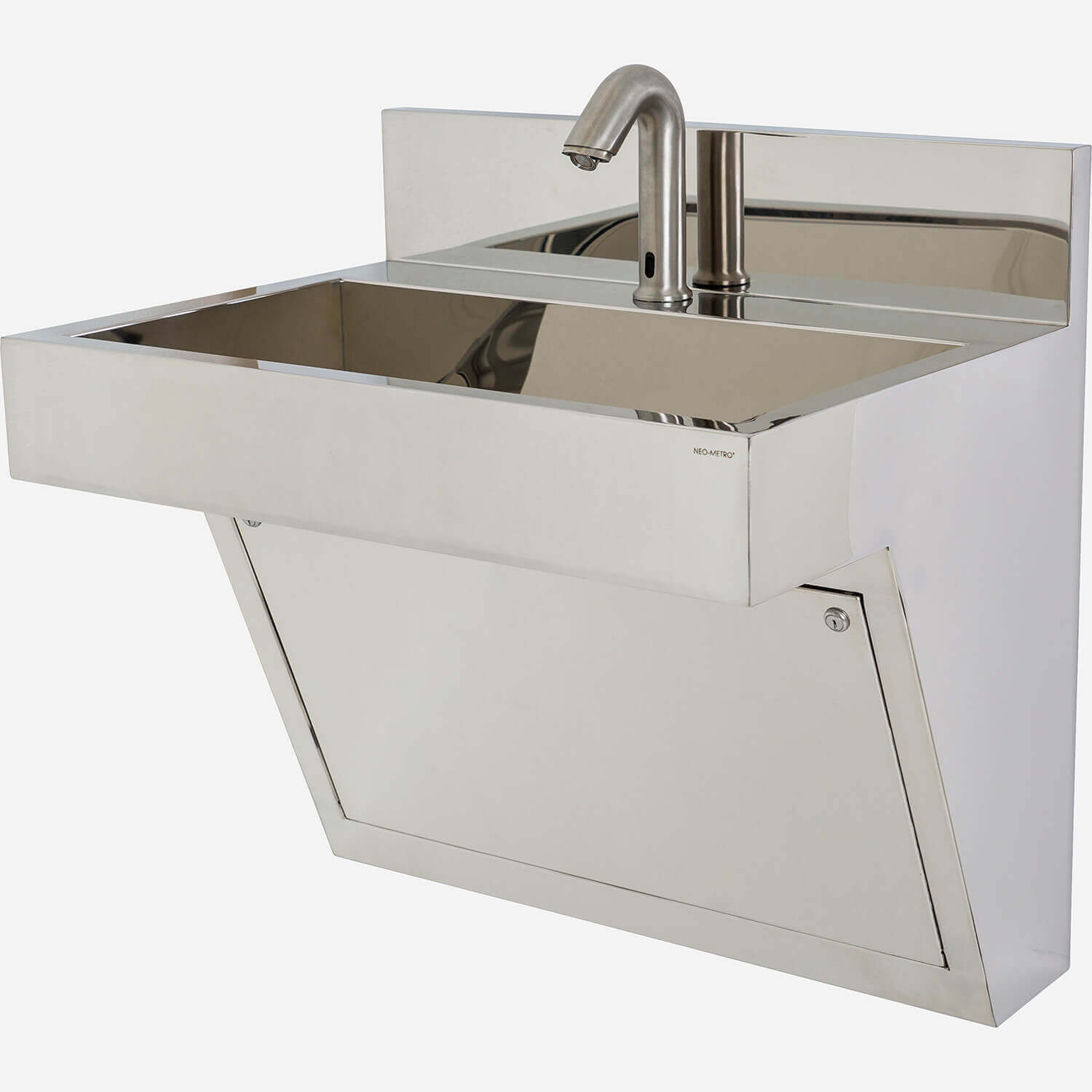

The HWS all-in-one stainless steel trough sink is a commercial hand washing sink system primarily intended for restaurants, pharmaceutical facilities, food prep facilities, food manufacturing, and other environments with stringent infection control procedures.
The high backsplash, angled basin, and offset drain all work together to keep water in the sink and minimize backsplash. The 16-gauge stainless steel construction makes it easy to clean and sanitize.
Water for the sink may be tempered using a thermostatic mixing valve available optionally through Neo-Metro. The valve is ASSE 1070 compliant, rated at 4.5 GPM (17 LPM) at 45 PSI (310 kPa)

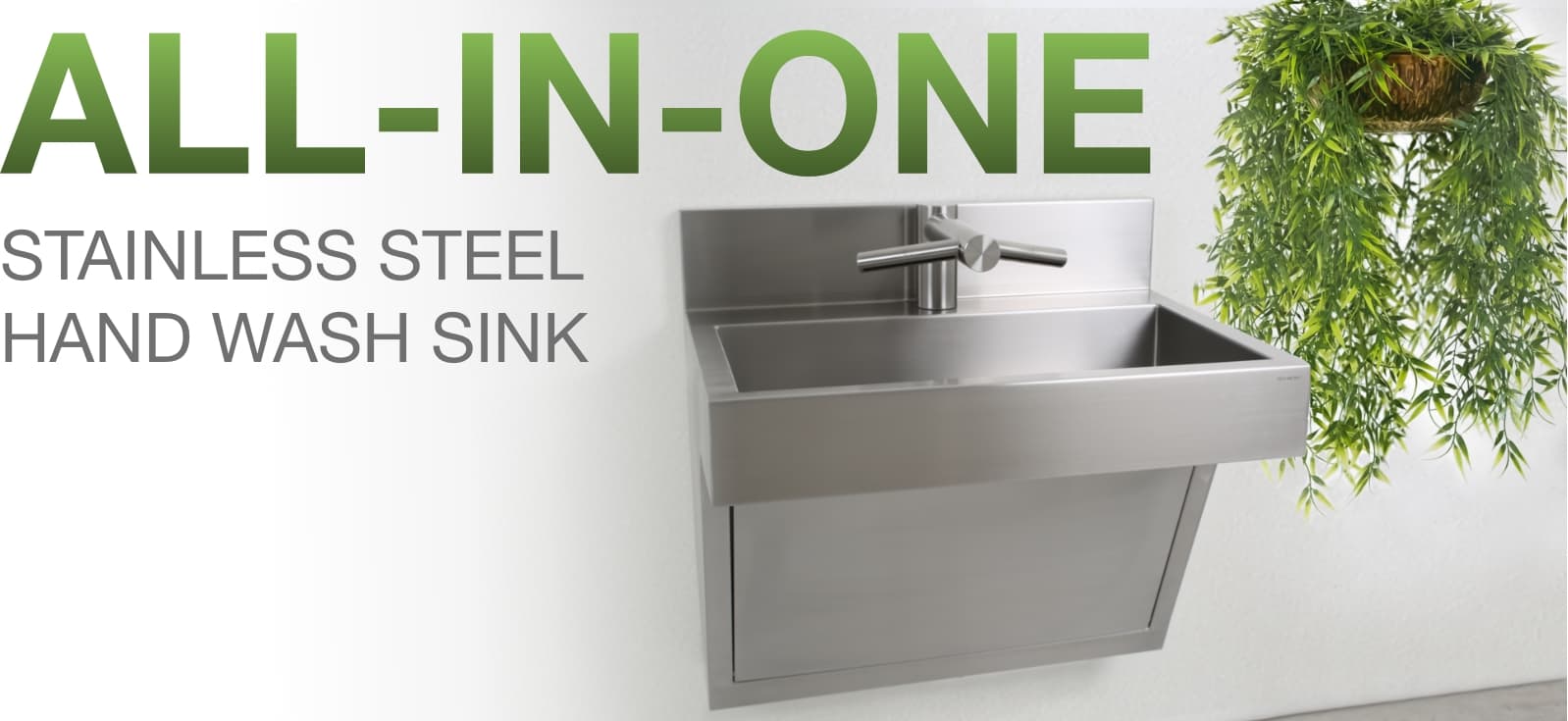

HWS All-in-One
Features
- 1. Angled Basin – Gentle slope reducing splash and forces water to drain.

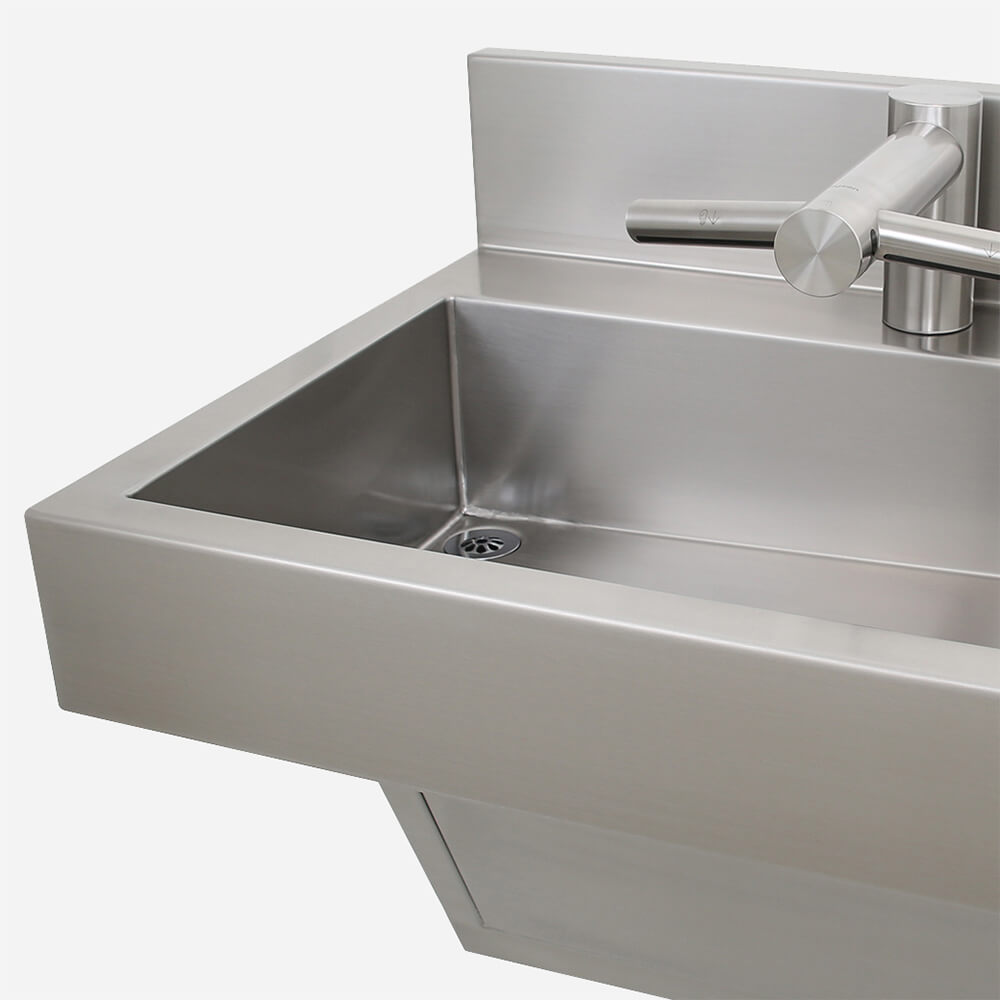

- 2. Offset Drain – Minimizes splash from the faucet and backsplash from the drain.
- 3. High Backsplash – Protects wall from water reducing bacteria.

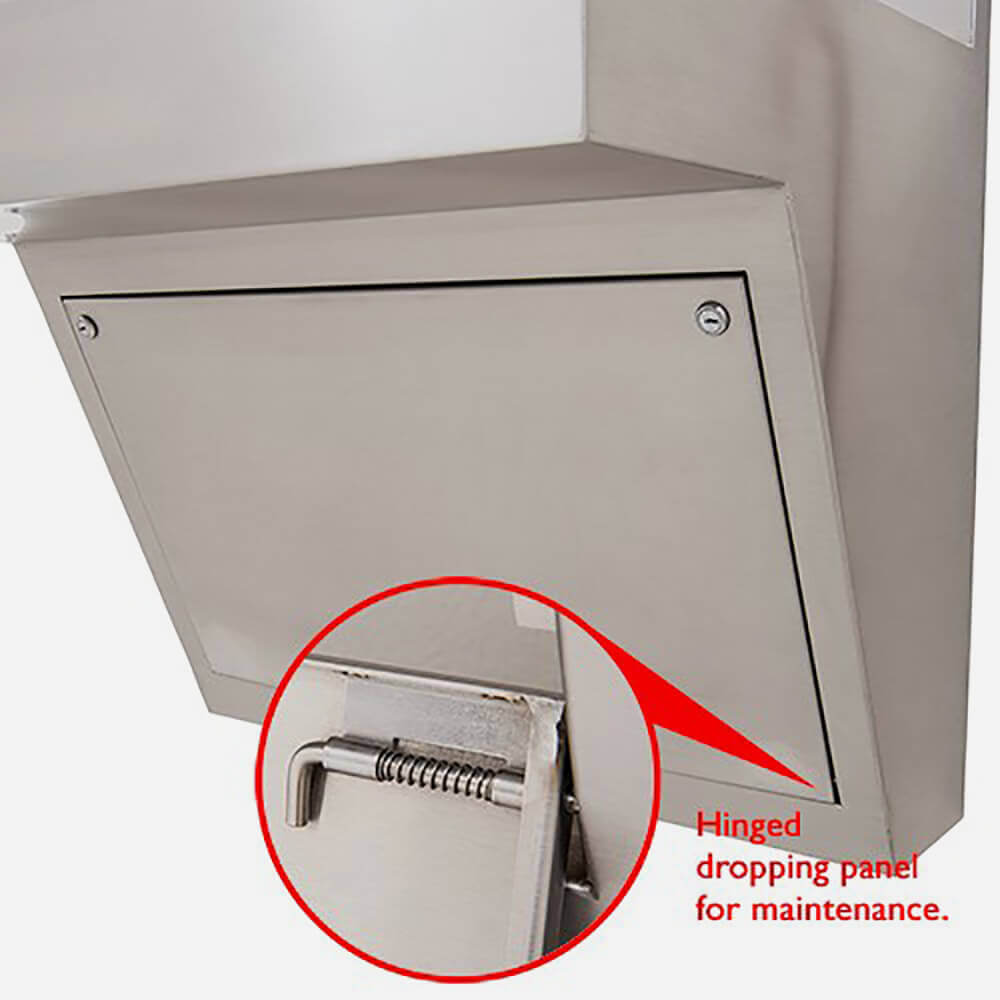

- 4. Hinged Access Panel – Front access panel for easy maintenance.
- 5. Locked Access Panel – Locking access panel to prevent vandalism.
HWS Sink Is Available in
3 Standard Sizes

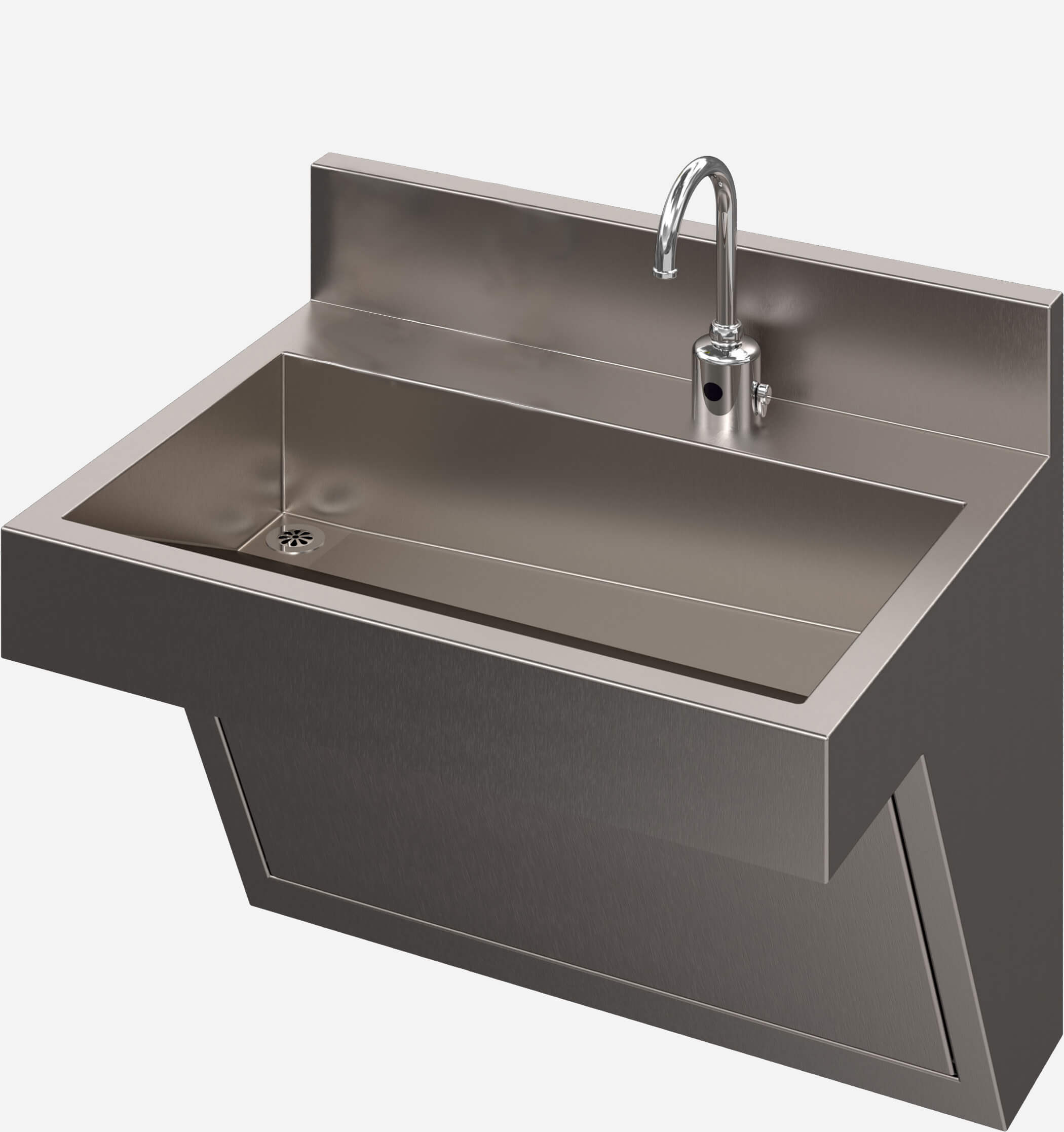

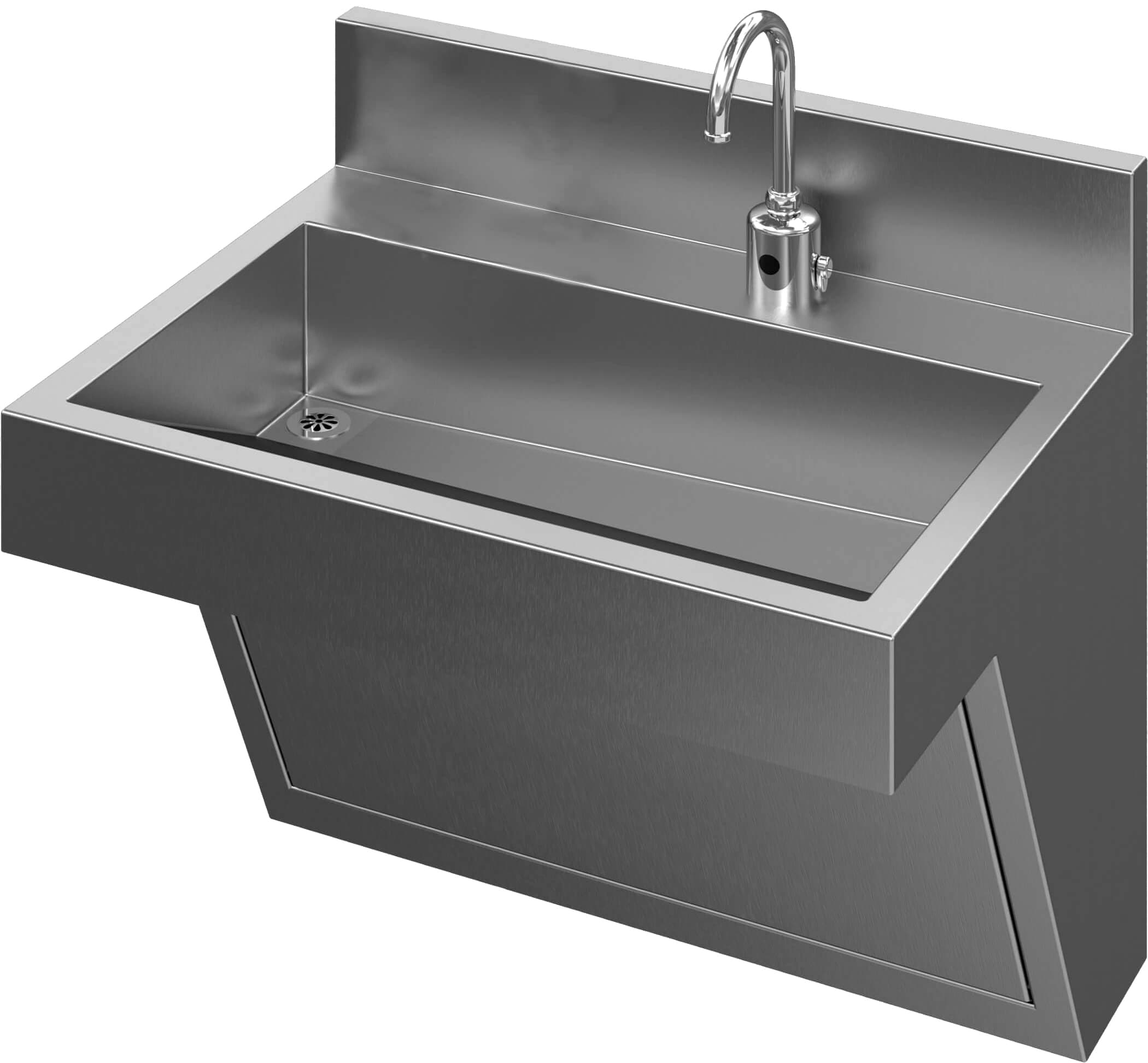

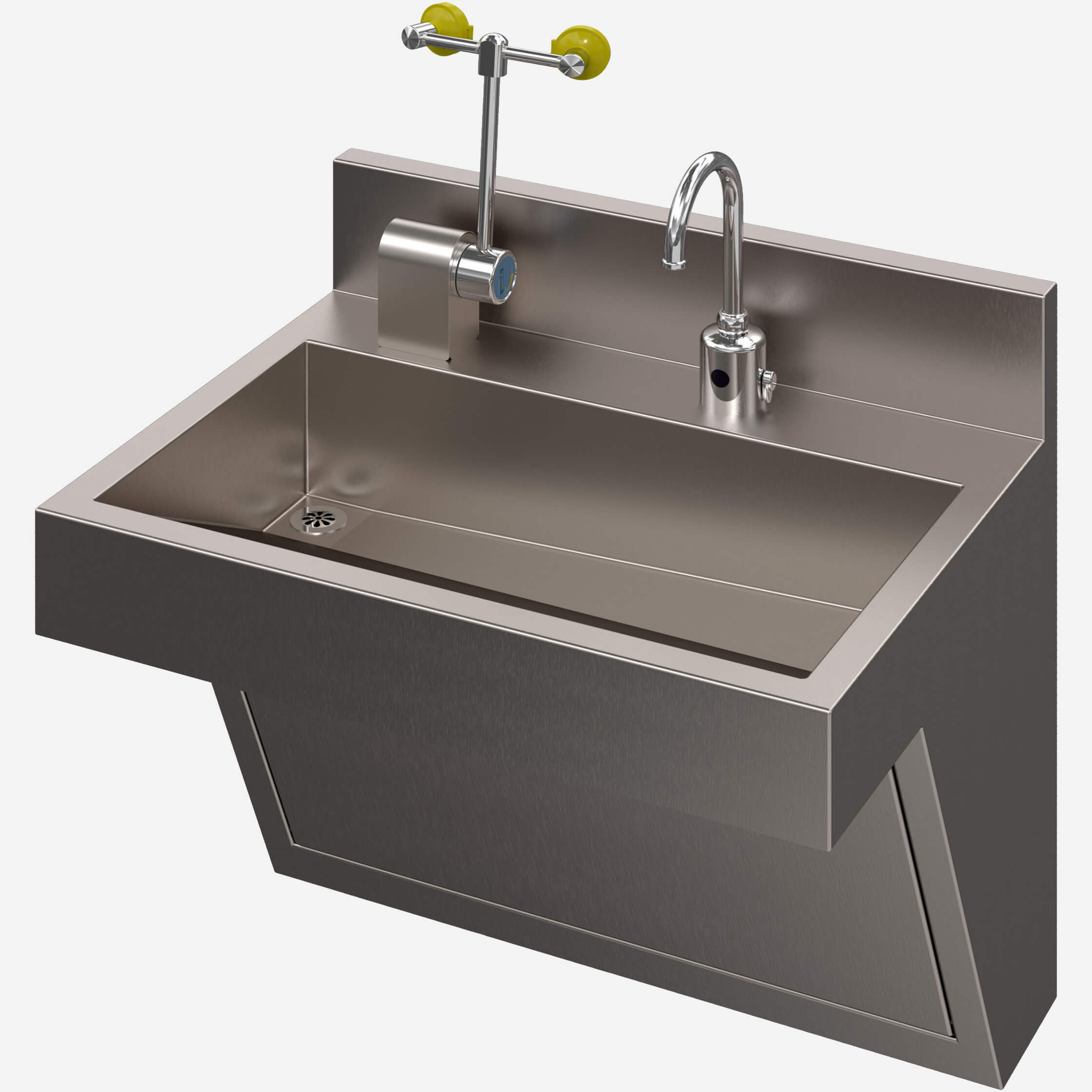

Model No. 9171
30" (762 mm) One-Station

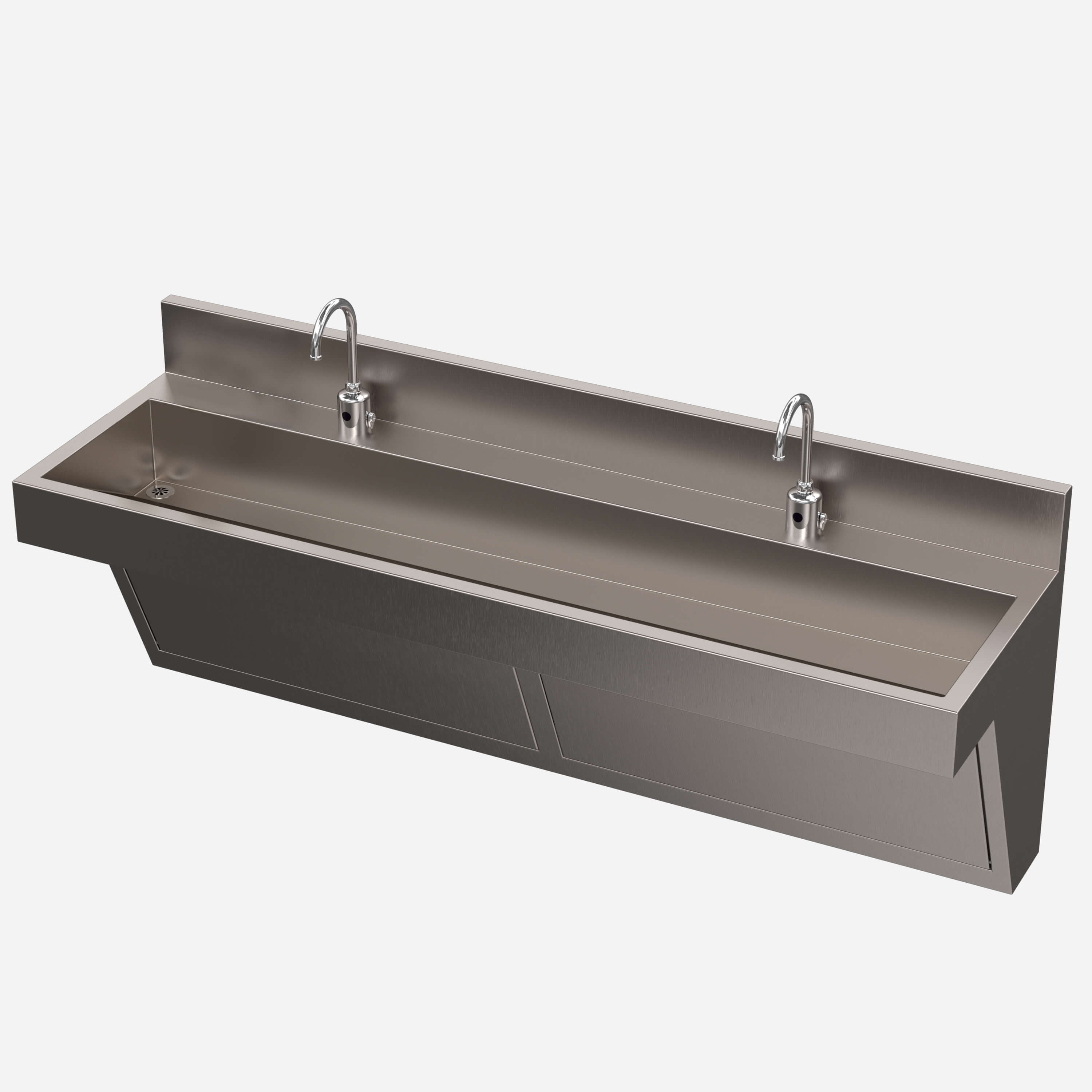

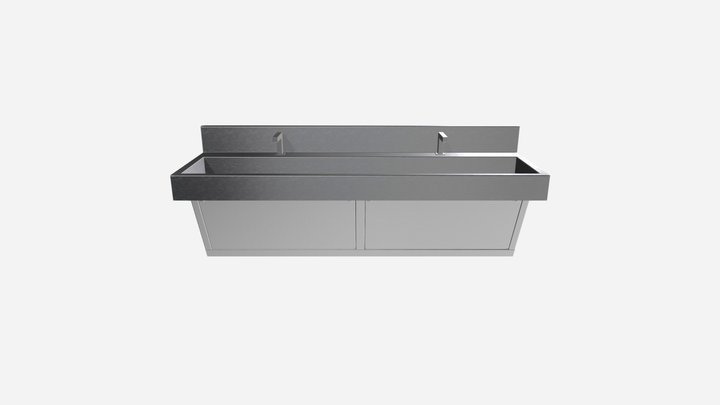

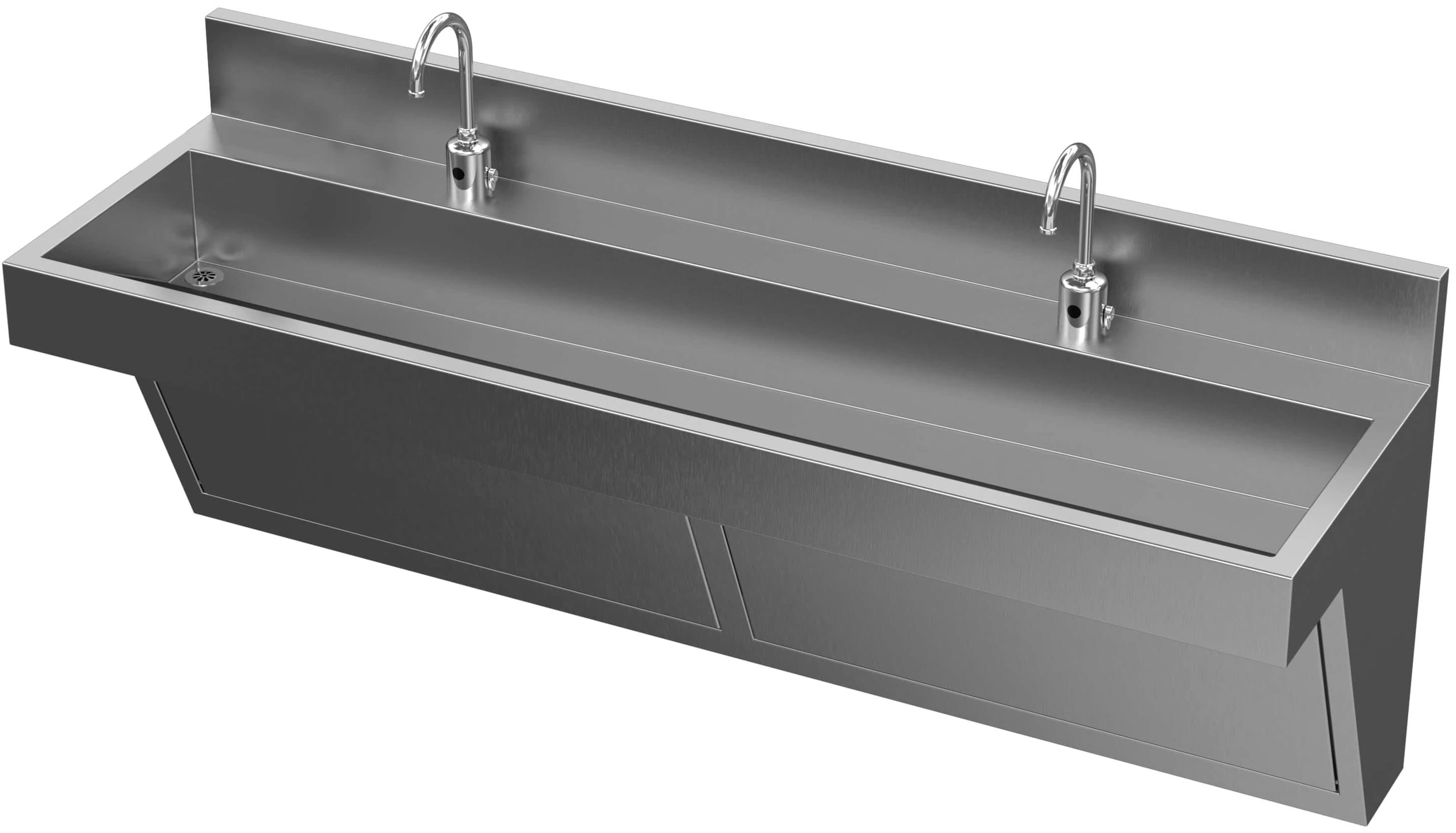

Model No. 9172
72" (1829 mm) Two-Station

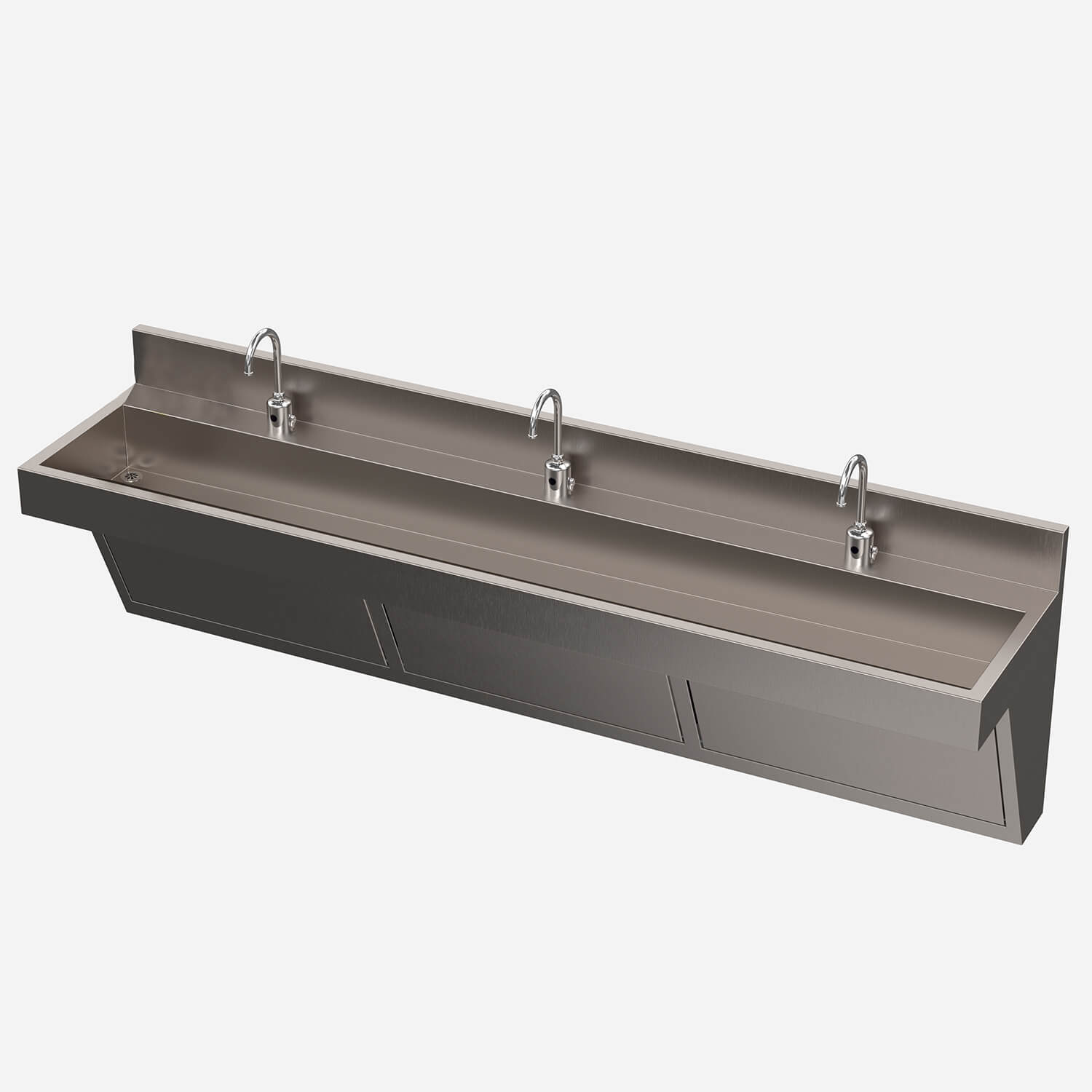

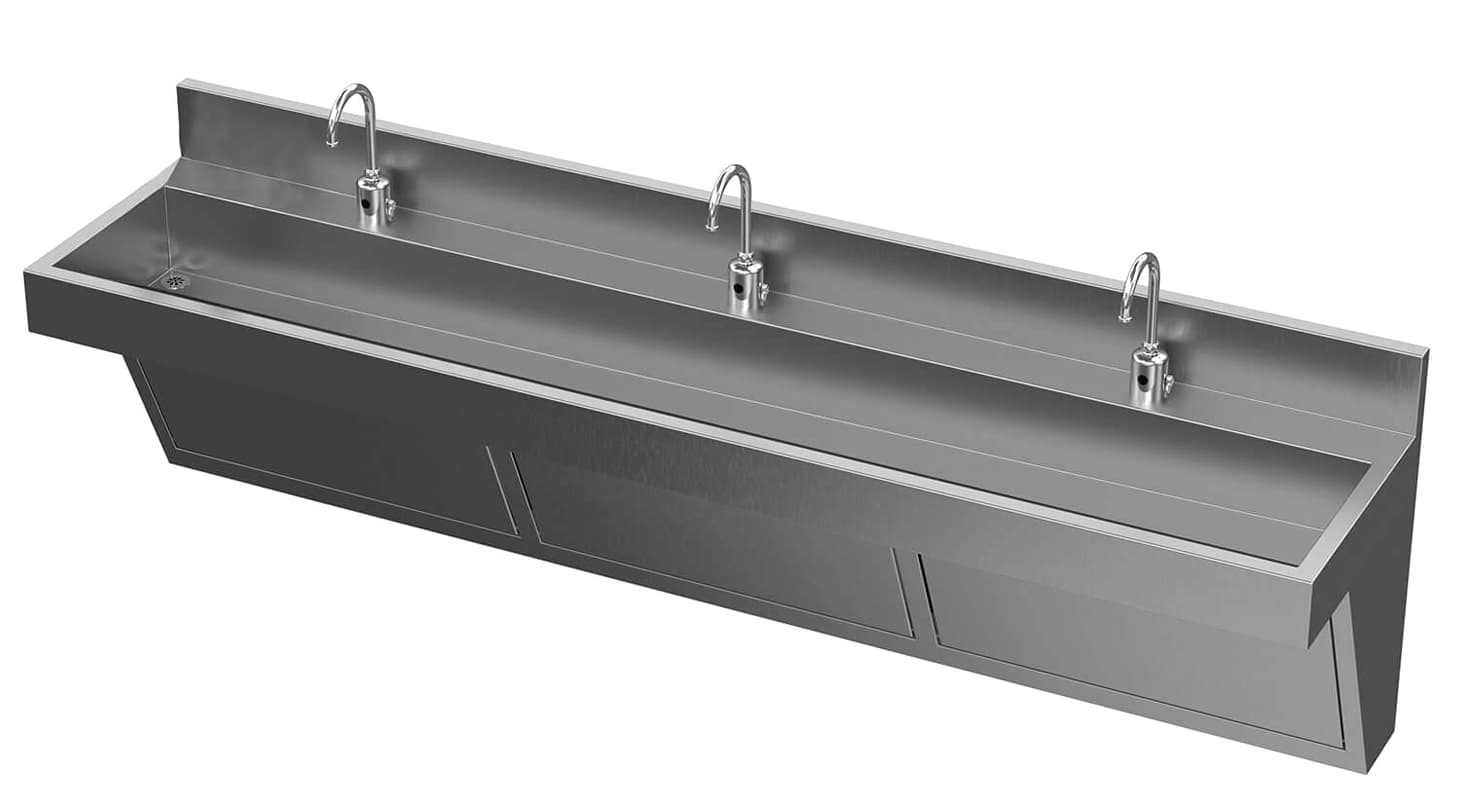

Model No. 9173
96" (2438 mm) Three-Station
P-trap(s) and grid strainer(s) are included with fixture.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | HWS All-in-One Stainless Steel Hand Wash Sink - One Station- 30 inch (762 mm) | 240 KB | |||
| | HWS All-in-One Stainless Steel Hand Wash Sink - One-Station- 30 inch (762 mm) | 691 KB | |||
 | | HWS All-in-One Stainless Steel Hand Wash Sink One Station, Two Station, Three Station | 0 | 1 MB | ||
| | HWS All-in-One Stainless Steel Hand Wash Sink - Two Station- 72 inch (1,829 mm) | 0 | 268 KB | ||
| | HWS All-in-One Stainless Steel Hand Wash Sink - Three Station - 96 inch (2,438 mm) | 0 | 273 KB | ||
| | HWS All-in-One Stainless Steel Hand Wash Sink - Two Station- 72 inch (1,829 mm) | 0 | 254 KB | ||
| | HWS All-in-One Stainless Steel Hand Wash Sink - Three Station - 96 inch (2,438 mm) | 0 | 264 KB | ||
| | Sinks, Basins & Troughs Brochure (pdf) | 0 | 2 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
 | | HWS All-in-One Stainless Steel Hand Wash Sink - One Station with Dyson Wash+Dry Faucet/Dryer | 0 | 631 KB | ||
| | HWS All-in-One Stainless Steel Hand Wash Sink - Two Station with Dyson Wash + Dry Faucet/Dryer | 0 | 69 KB | ||
| | 0 | 575 KB |
Specifications
| Models | 9171, 9172, 9173 |
| Material | Stainless Steel |
| Accessibility | ADA Compliant |
| Mount | Wall Mounted |
| Stations | 2 Station, 3 Station |
| Waste Location | Wall Waste |
| Options | -ST70CP-12 | ASSE 1070 Tempering Valve |
| Certifications | cUPC |
| Brand | Acorn ConTrols® Inside |
Options
Accessories
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|

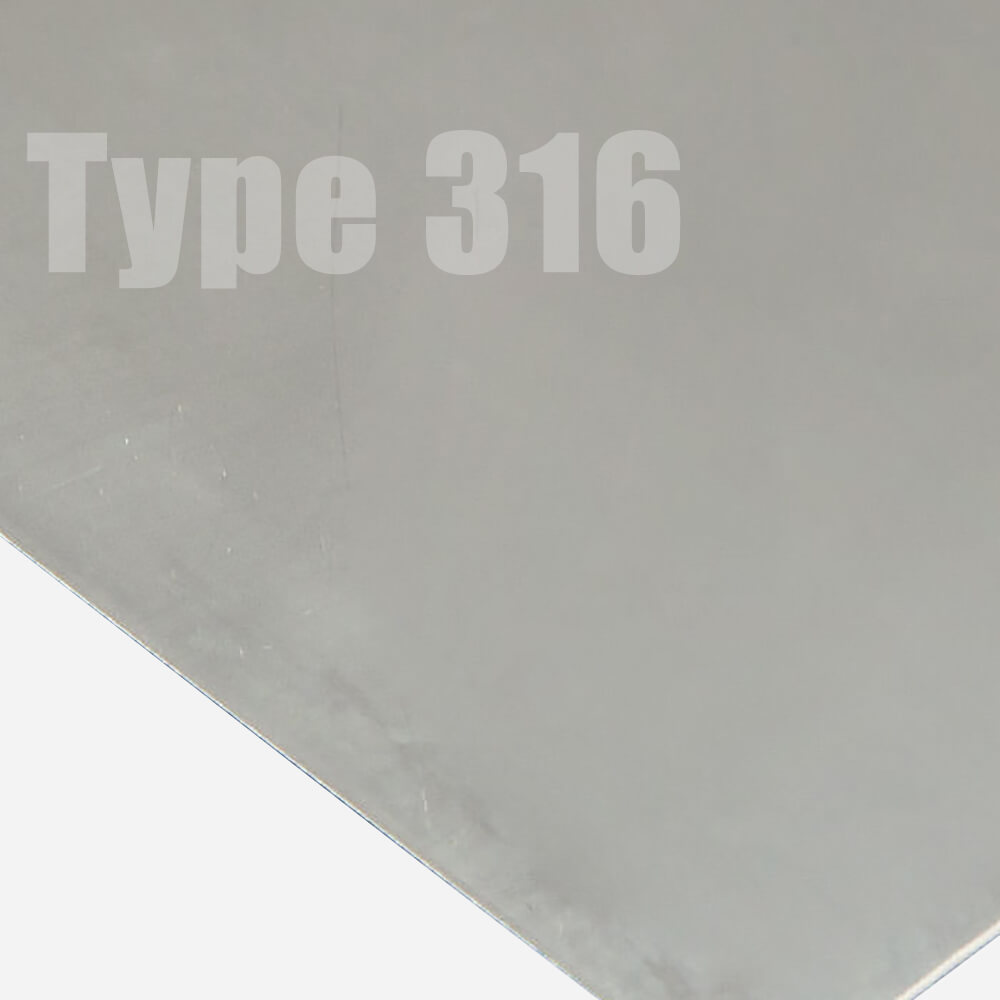

 | 316 | Option: 316 Stainless Steel | ||
 | H1 | Option: Faucet Mounting - Single Hole | ||
 | H34 | Option: Faucet Mounting - 4" Centerset | ||
 | H38 | Option: Faucet Mounting - 8" Centerset | ||

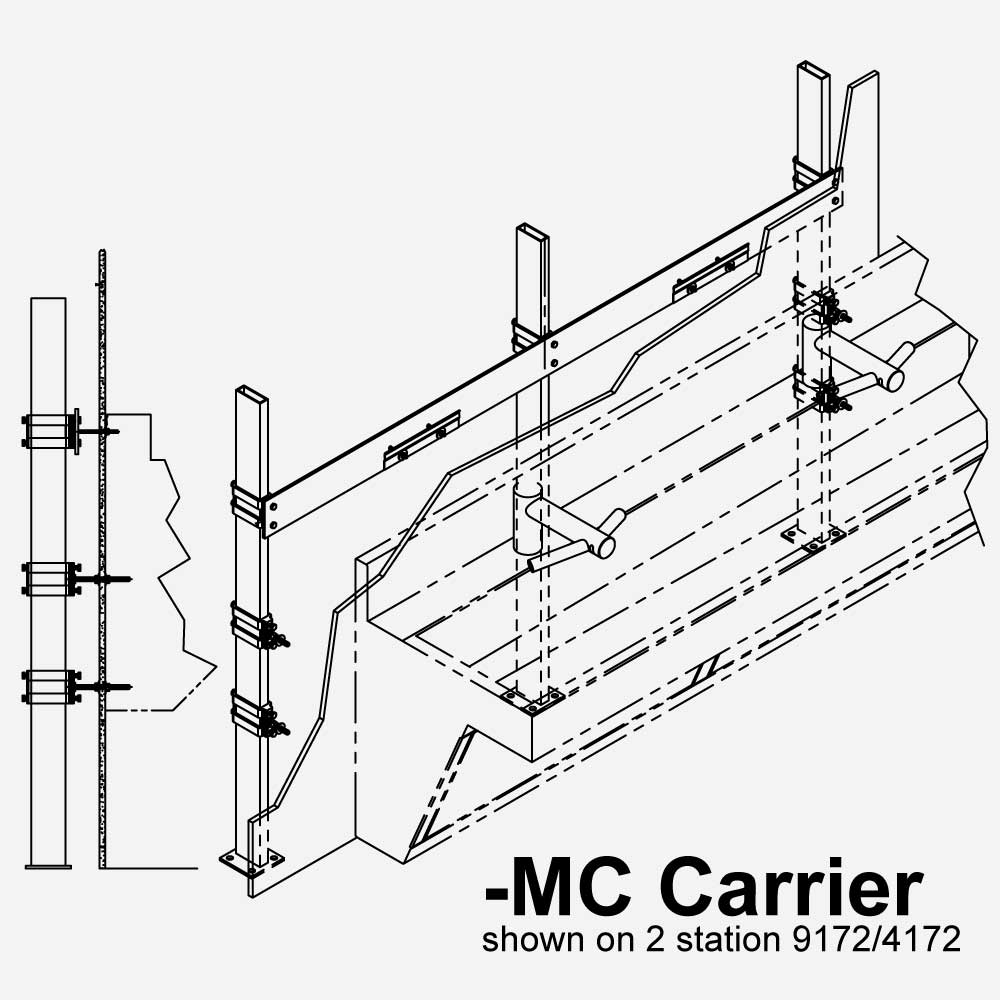

 | MC (9170 Series Sinks) | Option: Sink Mounting Carrier for 9170 Series Sinks | ||

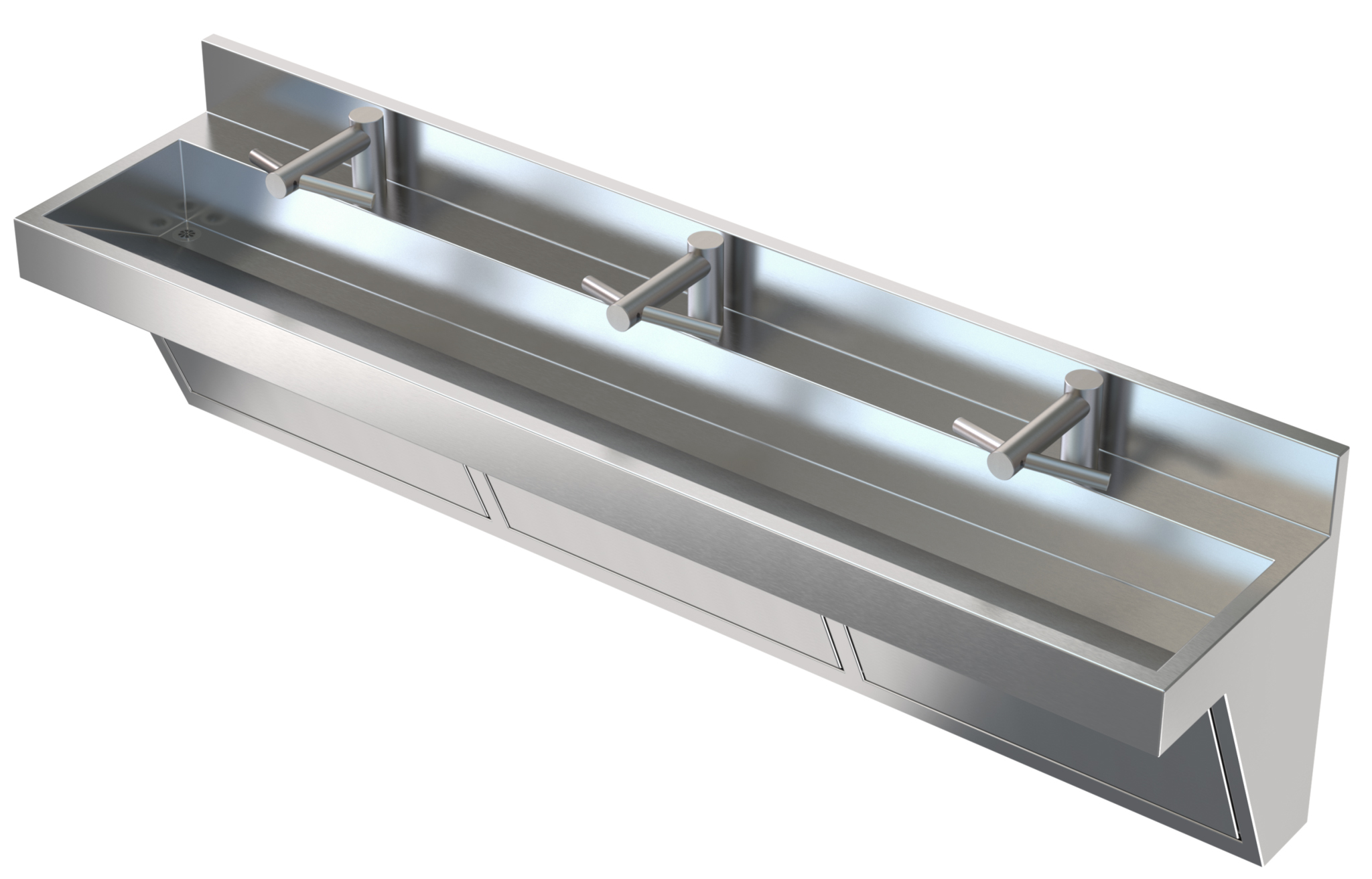

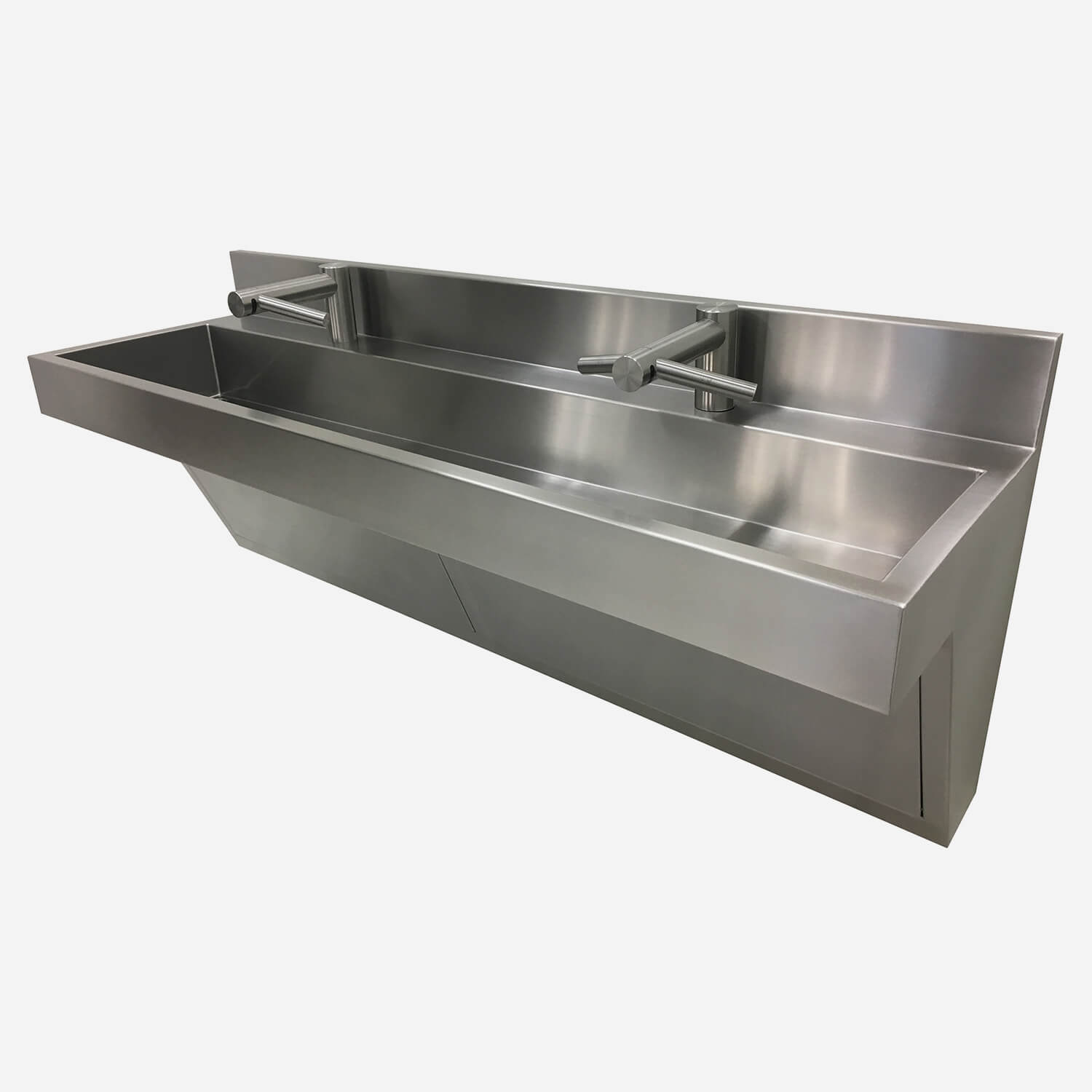

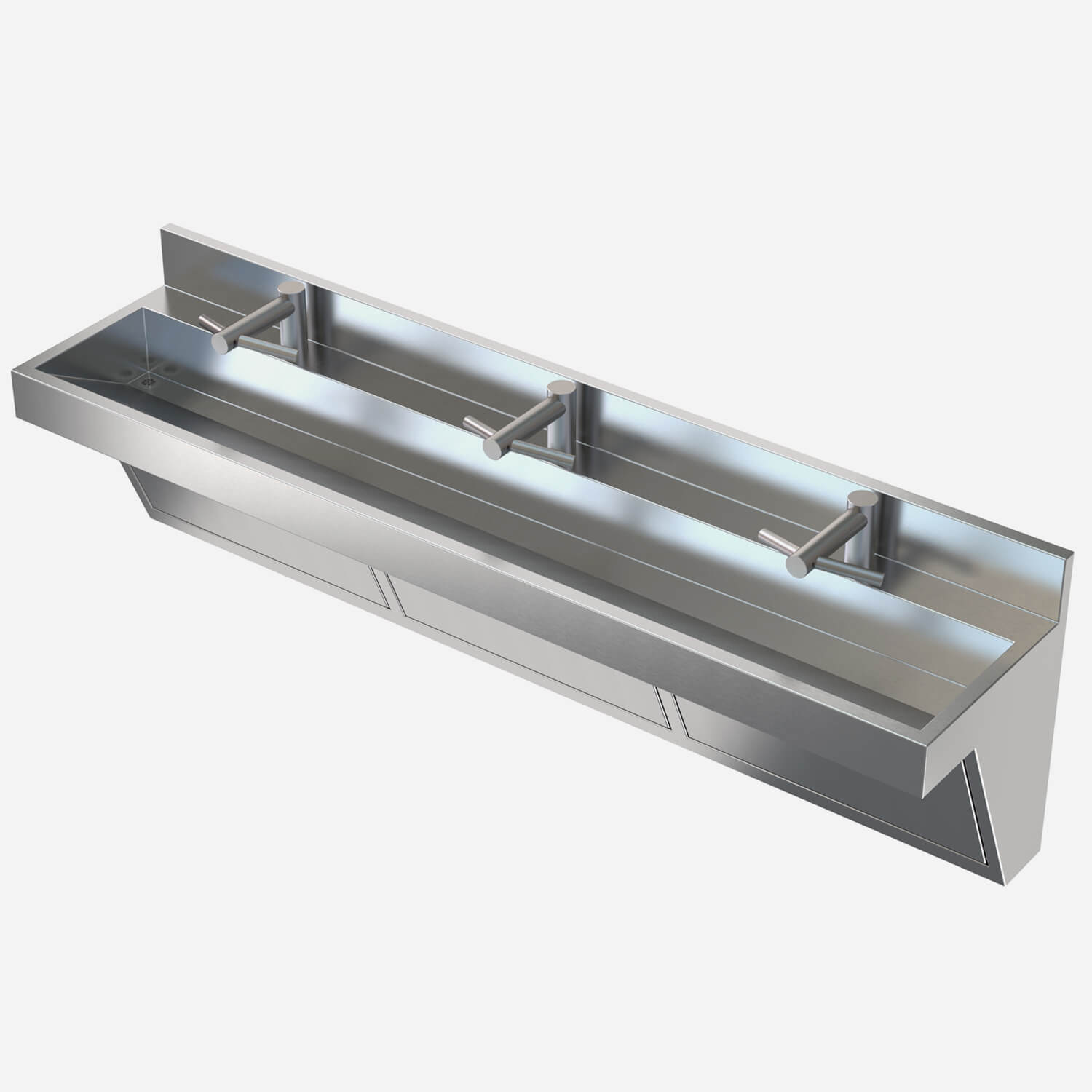

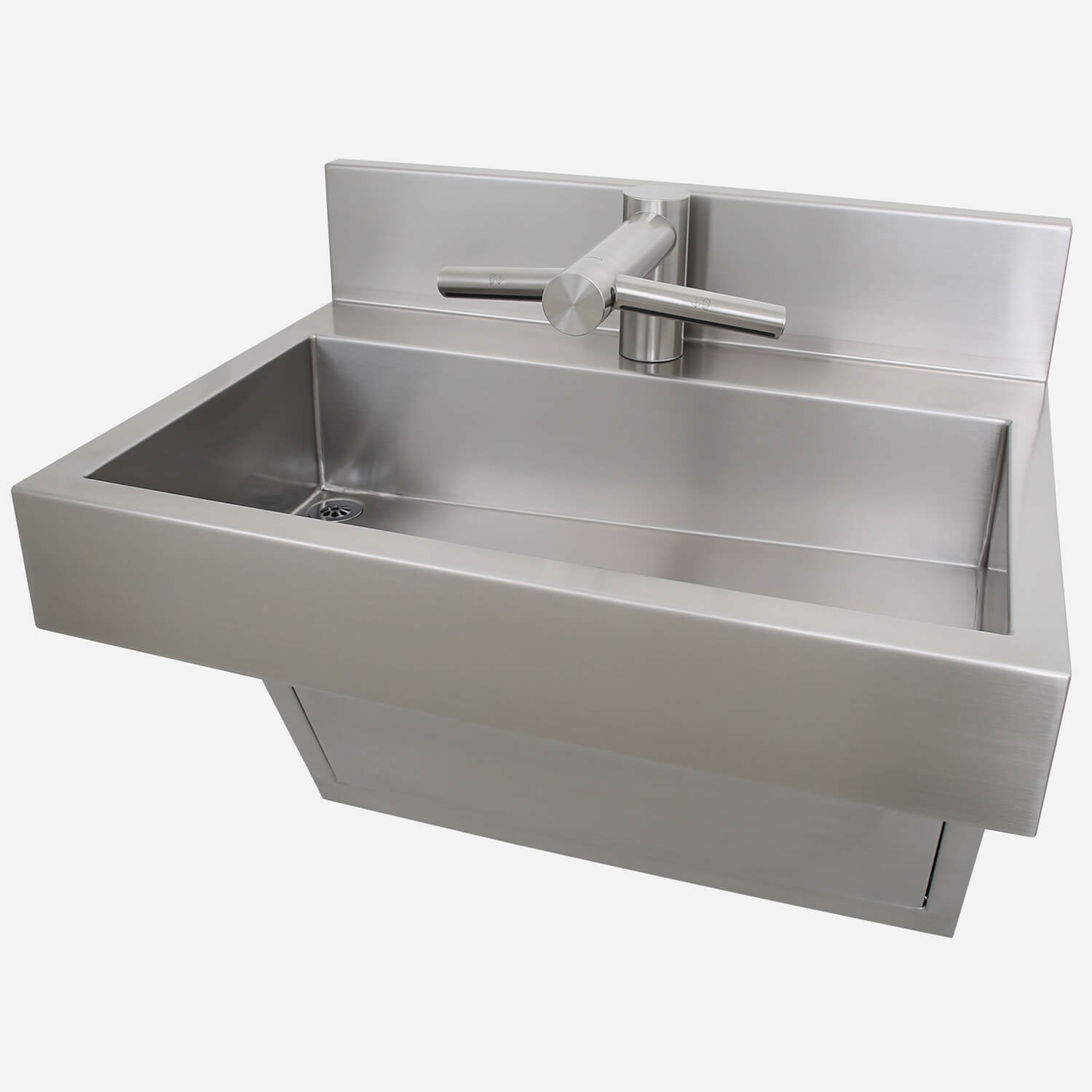

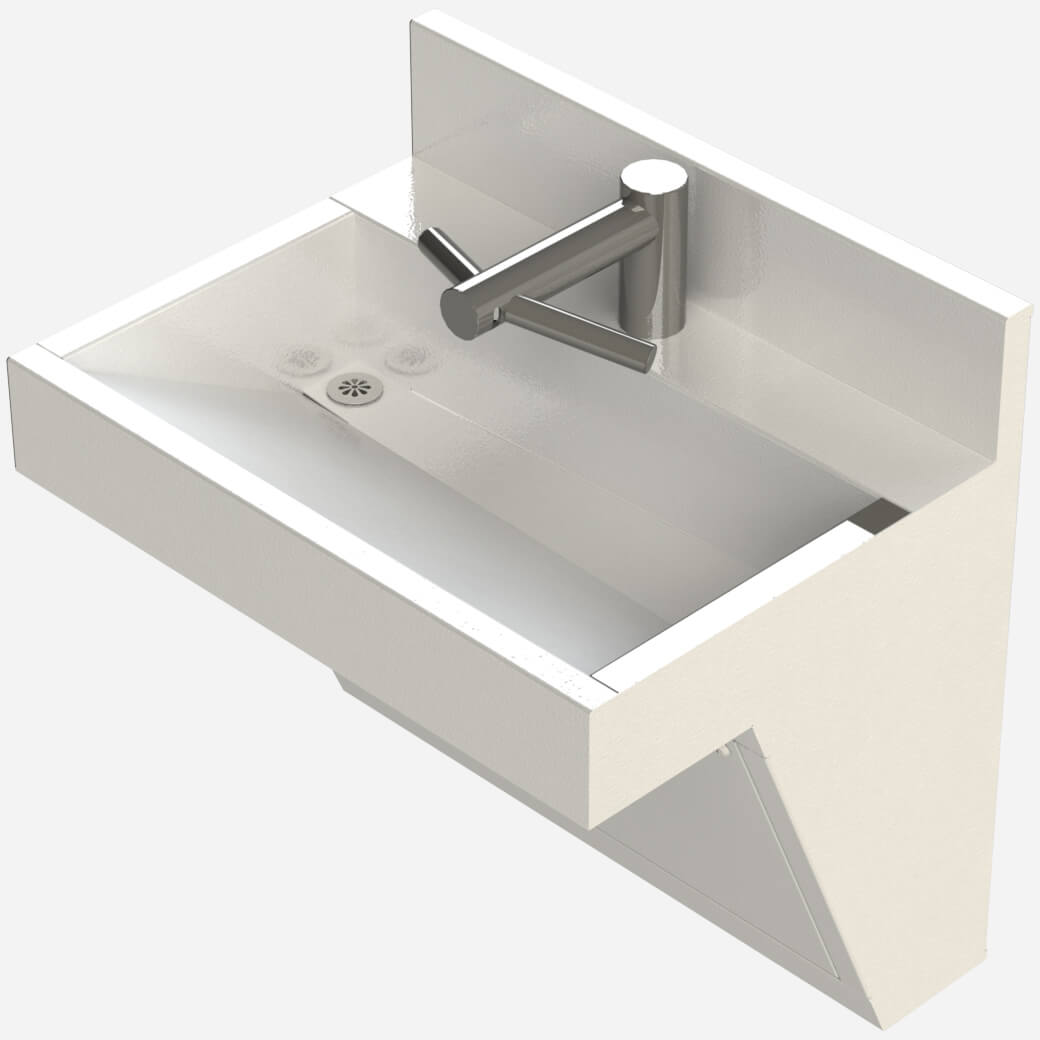

 | WD04 | Faucet: Deck-Mounted Dyson® Airblade™ Wash+Dry Faucet-Hand Dryer |
Models
Typical models are shown below
