Resin Bathroom Vanity with EBB® Sink

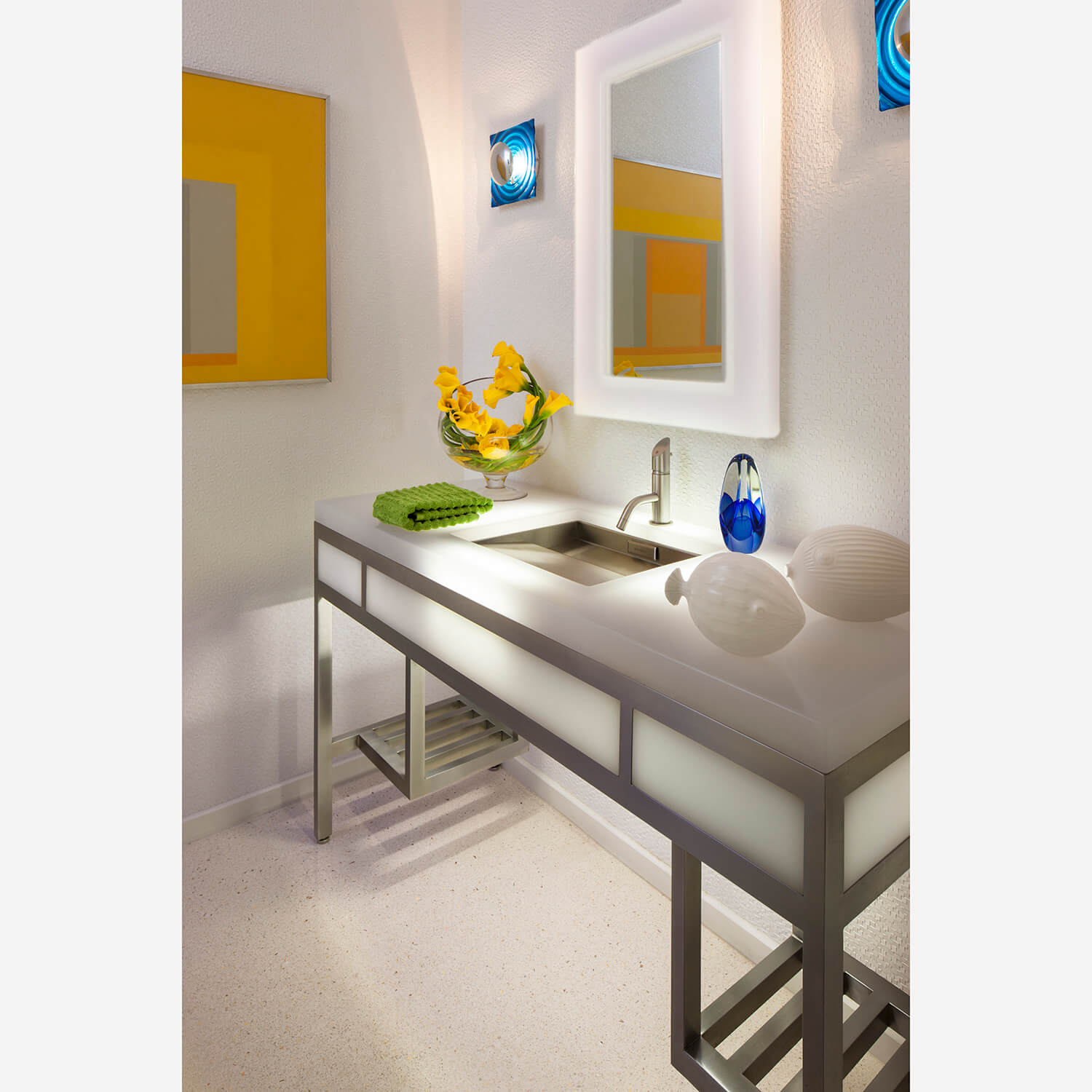

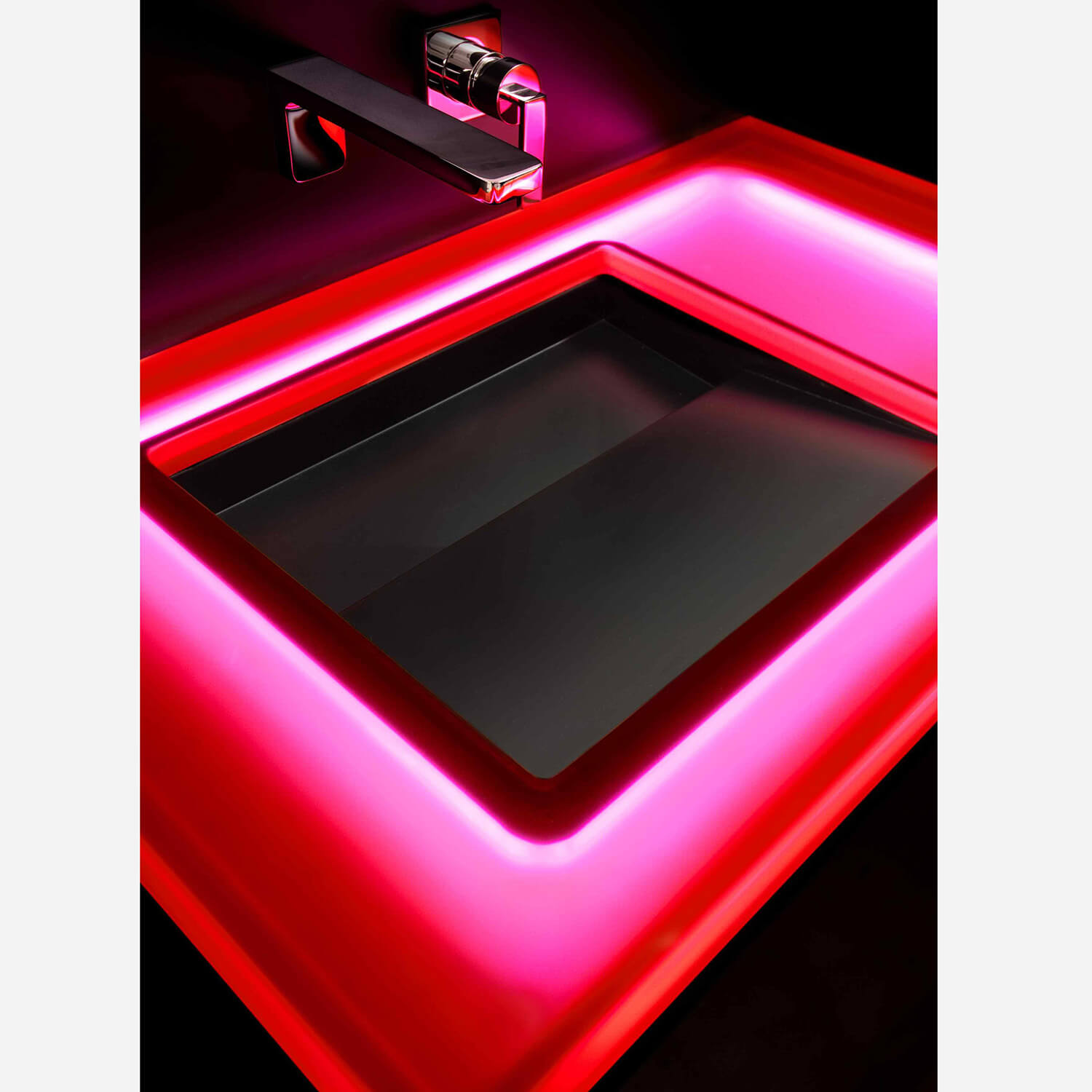

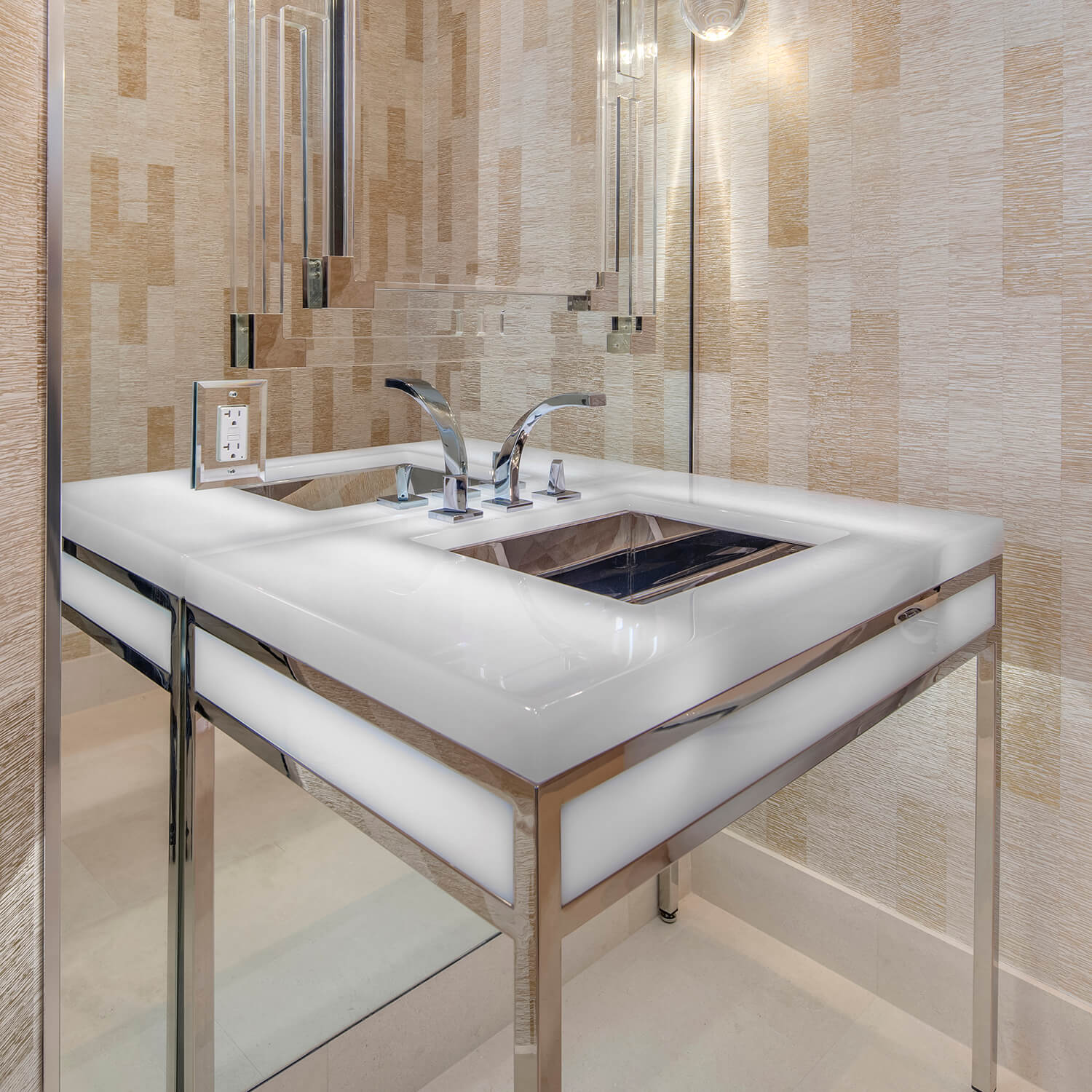

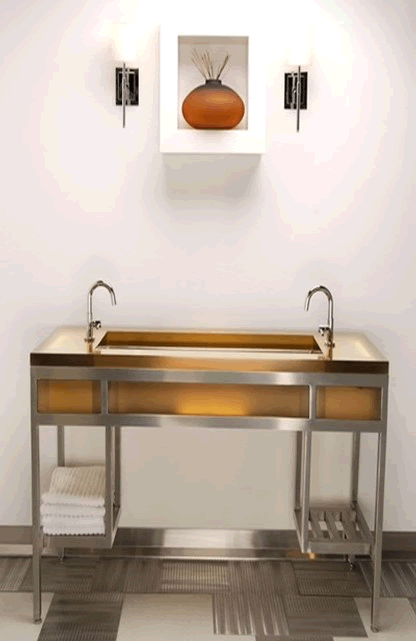

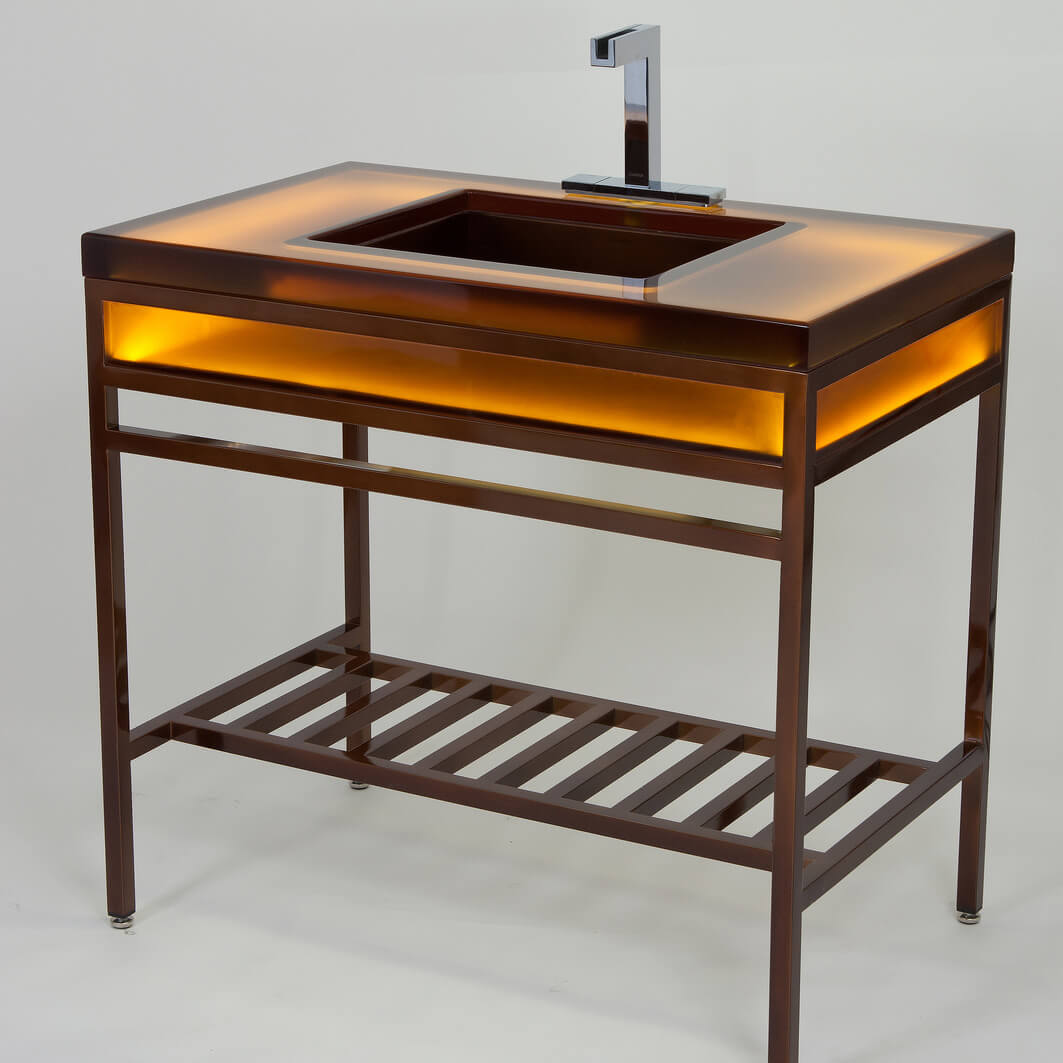

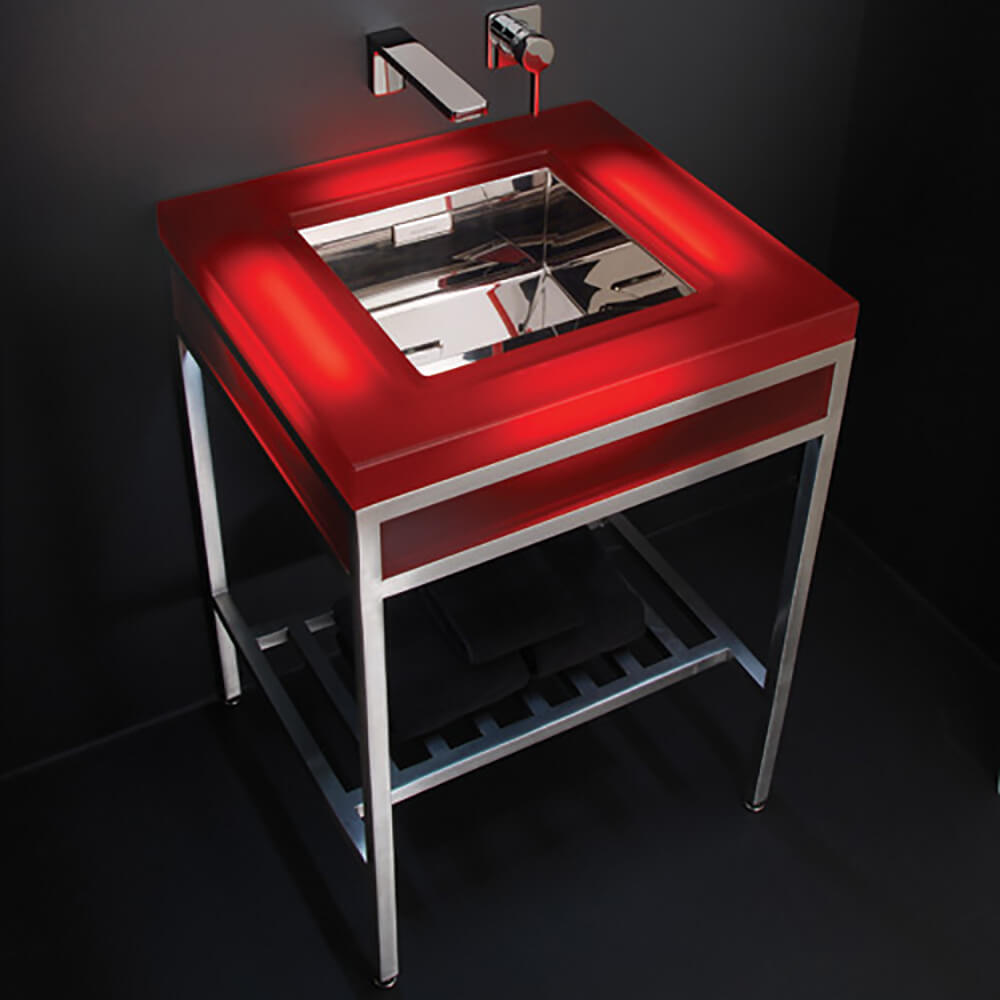

EBB Console includes Models 9108, 9110, and 9112 Combining the unique design of the EBB® basin with a cast resin countertop, the EBB Concept Console provides a fixture that will highlight any bath or restroom. Standard consoles include models of 24", 36", or 55" (610, 914, or 1,400 mm) lengths. Using a translucent cast resin countertop, an often requested option for lighting is available. Options of Towel Bar (-TBS) and Shelf (-SS) are also available.

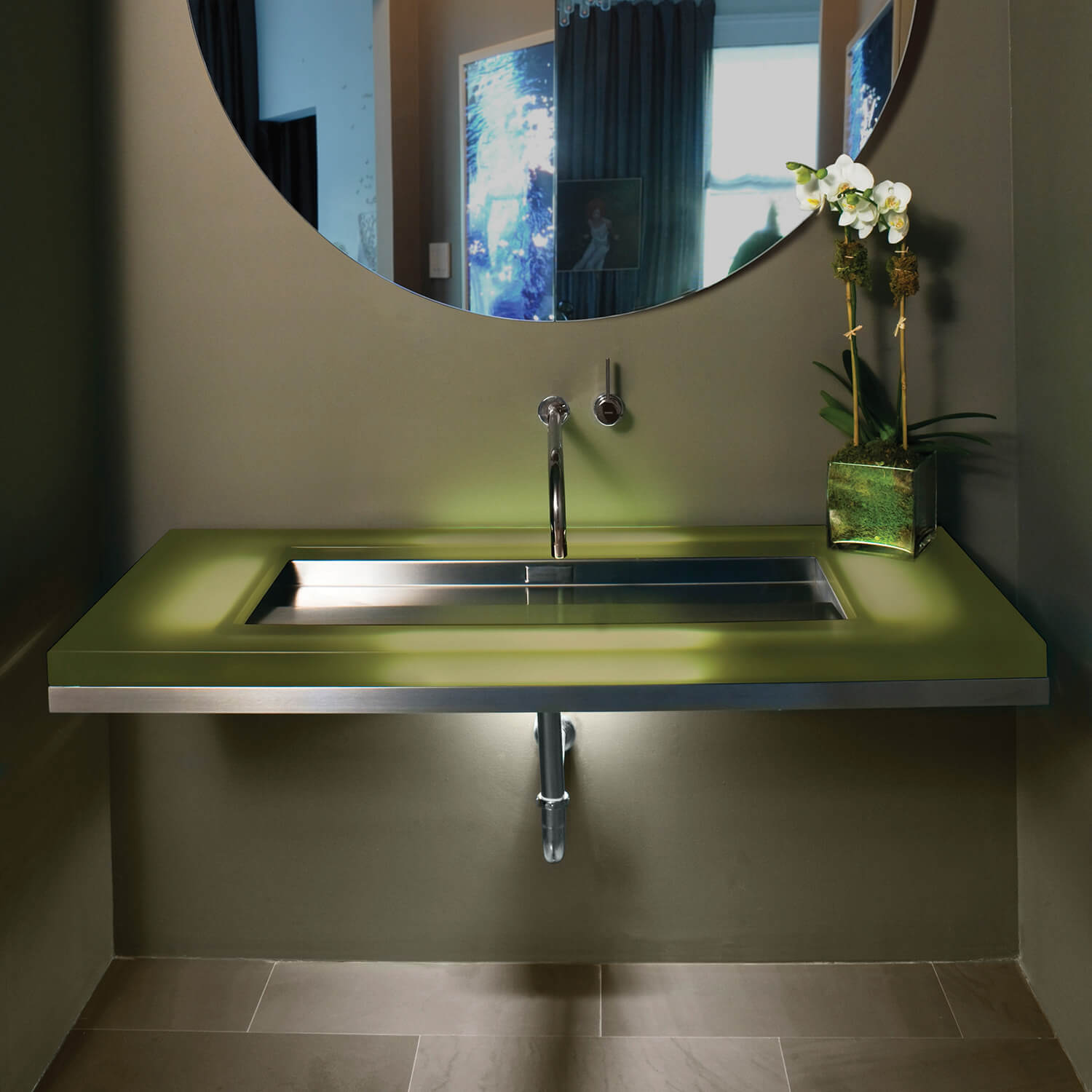

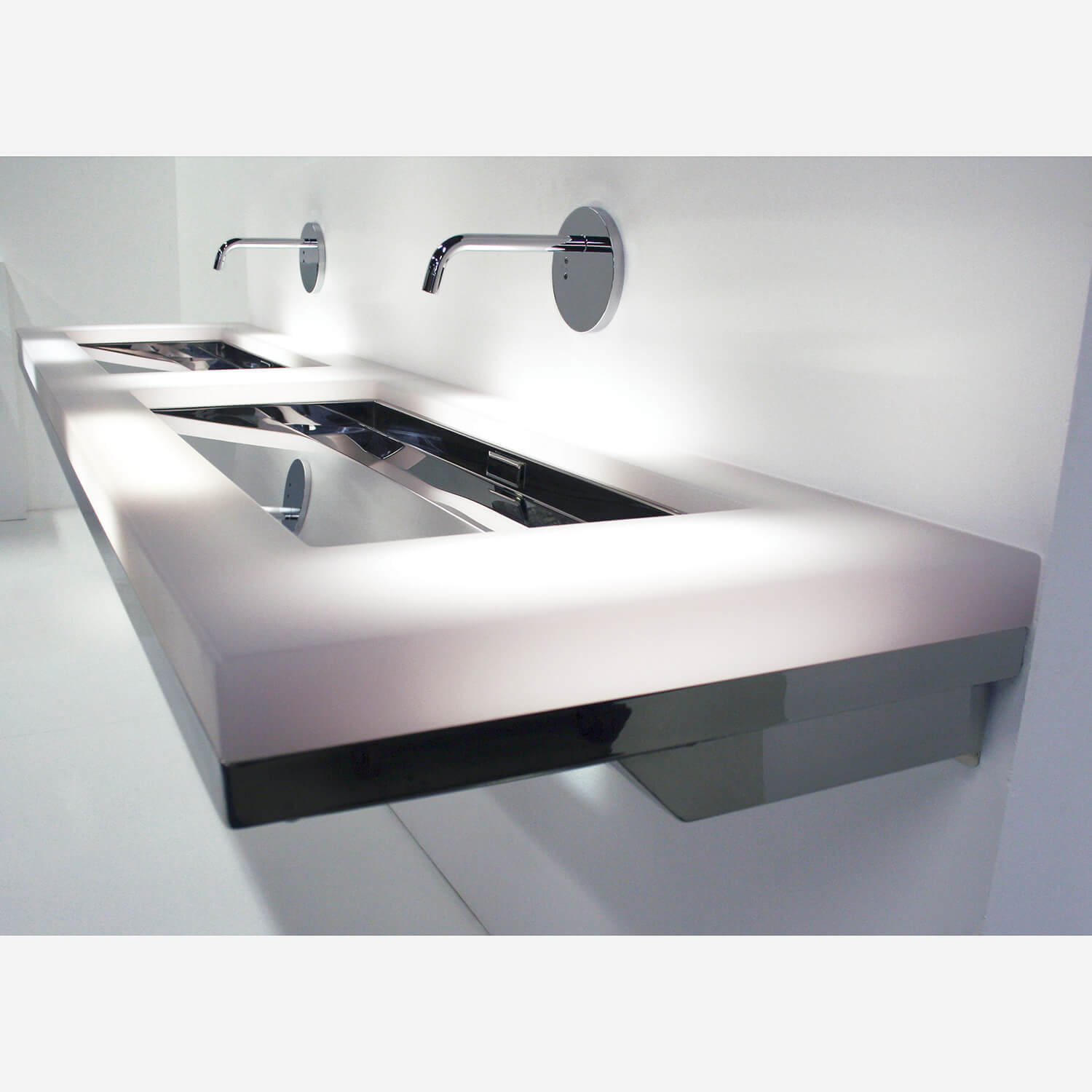

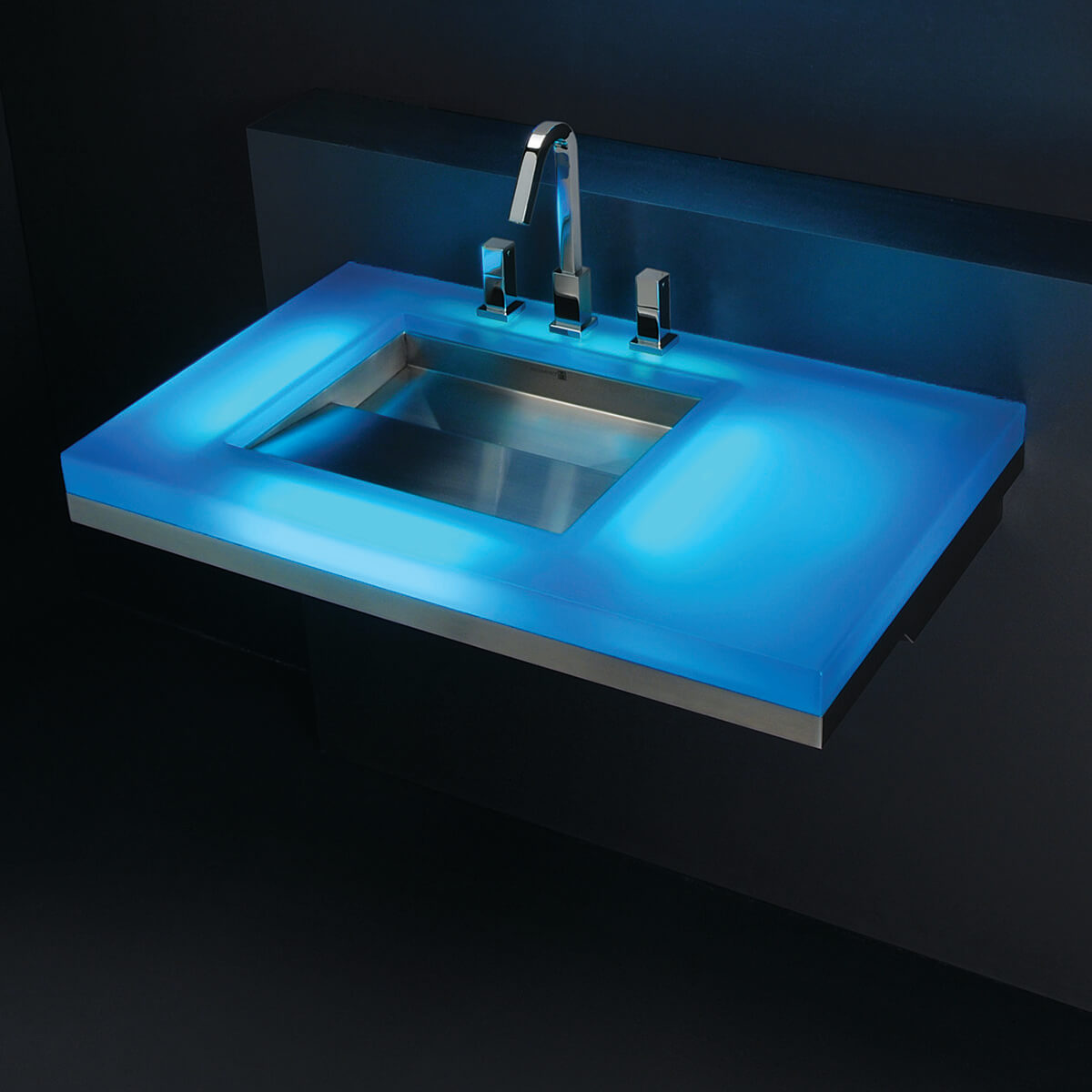

Ebb Wall Mount includes Models 9108-WM, 9110-WM, 9112-WM Combining the unique design of the EBB® basin with a cast resin countertop, the EBB Concept Wall-Mounted Deck provides a fixture that will highlight any bath or restroom. Standard units include models of 24", 36", or 55" (610, 914, or 1,400 mm) lengths. Using a translucent cast resin countertop, an often requested option for lighting is available.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | 24 Inch Ebb Console | 158 KB | |||
| | 24 Inch Ebb Console | 837 KB | |||
| | 24 Inch Wall Mounted Ebb Deck | 0 | 853 KB | ||
| | 36 Inch Wall Mounted Ebb Deck | 0 | 807 KB | ||
| | 36 Inch Ebb Console | 0 | 709 KB | ||
| | 55 Inch Wall Mounted Ebb Deck | 0 | 822 KB | ||
| | 55 Inch Ebb Console | 0 | 311 KB | ||
| | Custom faucet drilling configurations for Ebb Concept 9108 | 0 | 152 KB | ||
| | Custom faucet drilling configurations for Ebb Concept 9110 | 0 | 108 KB | ||
| | Custom faucet drilling configurations for Ebb Concept 9112 | 0 | 160 KB | ||
| | 36 Inch Ebb Console | 0 | 166 KB | ||
| | 55 Inch Ebb Console | 0 | 170 KB | ||
| | 24 Inch Ebb Wall Mount Deck with Standard Carrier | 0 | 140 KB | ||
| | 24 Inch Ebb Deck with Heavy Duty Floor Mounted Carrier | 0 | 197 KB | ||
| | 36 Inch Ebb Deck with Standard Carrier | 0 | 196 KB | ||
| | 36 Inch Ebb Deck with Heavy Duty Floor Mounted Carrier | 0 | 196 KB | ||
| | Close Elbow used on Ebb and System M2 | 0 | 140 KB | ||
| | 55 Inch Ebb Deck with Standard Carrier | 0 | 176 KB | ||
| | 55 Inch Ebb Deck with Heavy Duty Floor Mounted Carrier | 0 | 193 KB | ||
| | Assembly of 24 Inch Ebb Console | 0 | 149 KB | ||
| | Assembly of 36 Inch Ebb Console | 0 | 153 KB | ||
| | Assembly of 55 Inch Ebb Console | 0 | 149 KB | ||
| | Drilling instructions for Cast Resin or Cast Solid Surface | 0 | 193 KB | ||
| | Material Data Sheet for Acorn Corterra® solid surface including ANSI and CSA Standards Compliance, Burning Characteristics Test | 0 | 460 KB | ||
| | Sinks, Basins & Troughs Brochure (pdf) | 0 | 2 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Cleaning guidelines for Neo-Metro products | 0 | 252 KB |
Specifications
| Models | 9108, 9110, 9112, 9108-WM, 9110-WM, 9112-WM |
| Options | -TBS | Towel Bar (matches frame finish), -LGT | LED Lighting Kit, -LGT-220 | LED Lighting Kit (220 Volt), -OF | Basin Overflow Waste Outlet with Concealing Plate, -SS | Storage Shelf (matches frame finish) |
| Steel Finish | -S | Satin Finish Stainless Steel Frame, -HP | Mira High Polish Stainless Steel Frame, -EG-10 | White Gloss Powder Coated Stainless Steel Frame, -EG-22 | Black Matte Powder Coated Stainless Steel Frame, -EG-07 | Black Gloss Powder Coated Stainless Steel, -EG-26 | White Matte Powder Coated Stainless Steel, -EG-00 | Custom Powder Coating |
| Resin Color | -RDC01 | Cloud Nine, -RDC02 | Stealth Fog (opaque smoke resin), -RDC03 | Yokan (amber resin), -RDC04 | Oceana (aqua resin), -RDC05 | Skye (blue resin), -RDC06 | Cranjuice (red resin), -RDC07 | Wineberry (purple resin), -RDC08 | Green Tea (dark green resin), -RDC09 | Green Apple (green resin), -RDC11 | Tangerine Dream (orange resin), -RDC12 | Blueberry (turquoise), -RDC00 | Custom (customer specified resin/solid surface) |
| Solid Surface Color | -AMA | SteriTouch® Antimicrobial Additive, -OCC18 | Parchment, -OCC19 | Cotton Tail, -OCC20 | Meteorite, -OCC21 | Moonstone Metallic, -OCC11 | Blanco (Glossy), -OCC11M | Blanco Matte |
| Material | Resin, Corterra® Solid Surface |
| Mount | Free Standing, Wall Mounted |
| Basin Shape | 3676-OF | 14" x 33" Blanco (white) Solid Surface Basin with Integral Overflow for 9112 Deck, 3678-OF | 14" x 14" Blanco (white) Solid Surface Basin with Integral Overflow for 9108 Deck, 3679-OF | 14" x 17" Blanco (white) Solid Surface Basin with Integral Overflow for 9110 Deck, 3668 | 14" EBB Deep Basin, 3669 | 14" EBB Basin (Shallow) for 9108 Deck, Hidden Drain, EBB Inset Basin, 3673 | 17" EBB Basin (Shallow) for 9110 Deck, 3671 | 36" Deep EBB Basin, 3672 | Symmetric EBB Basin for 9112 Deck, 3674 | 36" EBB Basin (Shallow) for 9112 Deck |
| Basin Configuration | -LH | Left-Hand Configuration, -RH | Right-Hand Configuration, -CTR | Centered Basin Configuration |
| Accessibility | ADA Compliant |
| Additional Accessibility Notes | Only 9108-WM-3669, 9110-WM-3673, 9112-WM-3674 are ADA compliant |
| Certifications | CSA B125.1, cUPC, ASME A112.18.1, ICPA SS-1 |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|

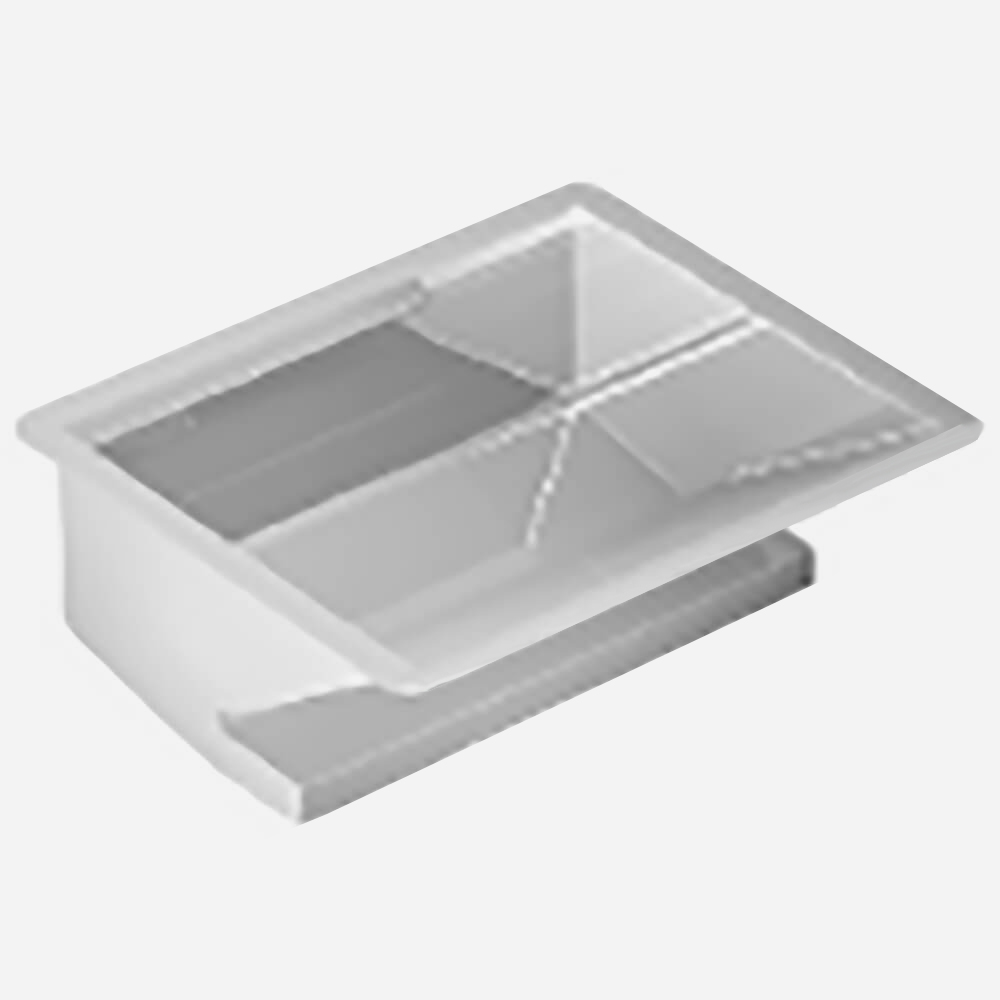

 | 3668 | Option: Bowl Style - 14"W Deep Ebb Inset Basin | ||
 | 3669 | Option: Bowl Style - 14"W Shallow Ebb Inset Basin | ||

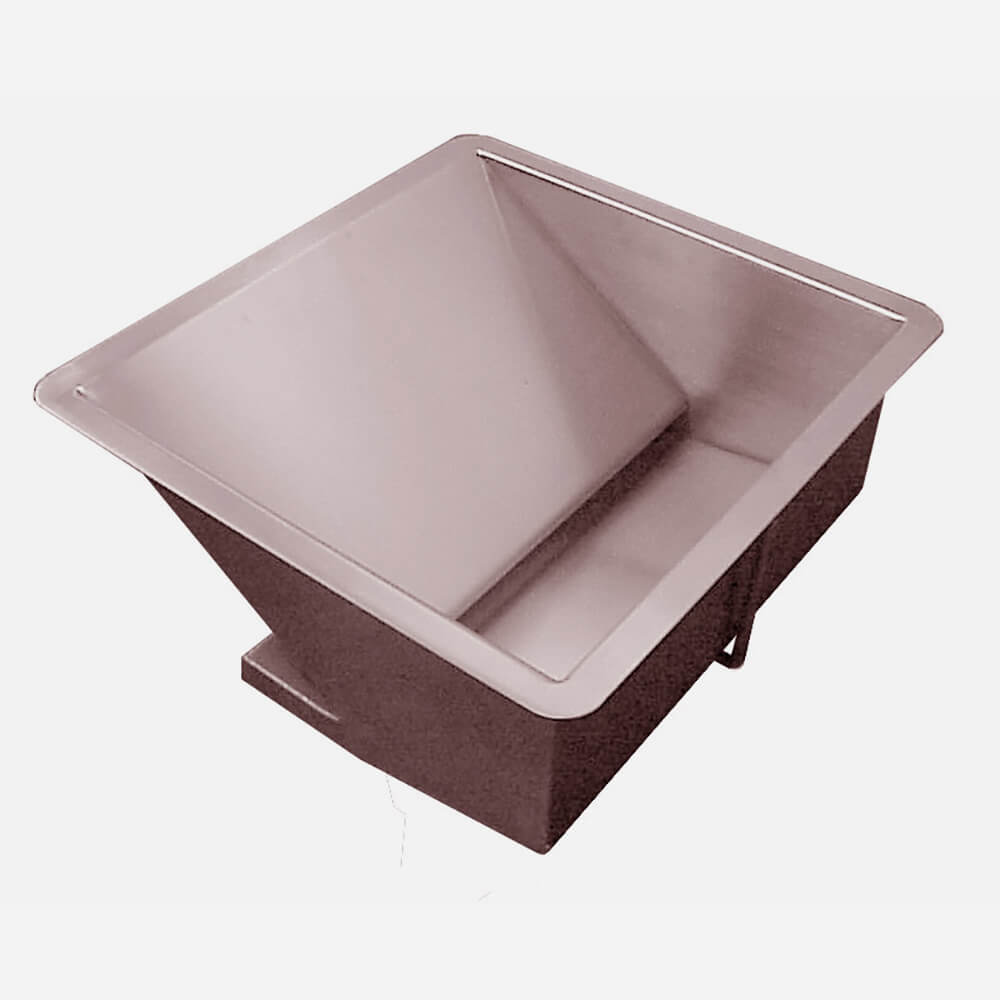

 | 3670 | Option: Bowl Style - 17"W Deep Ebb Inset Basin | ||
 | 3671 | Option: Bowl Style - 36"W Deep Ebb Inset Basin | ||

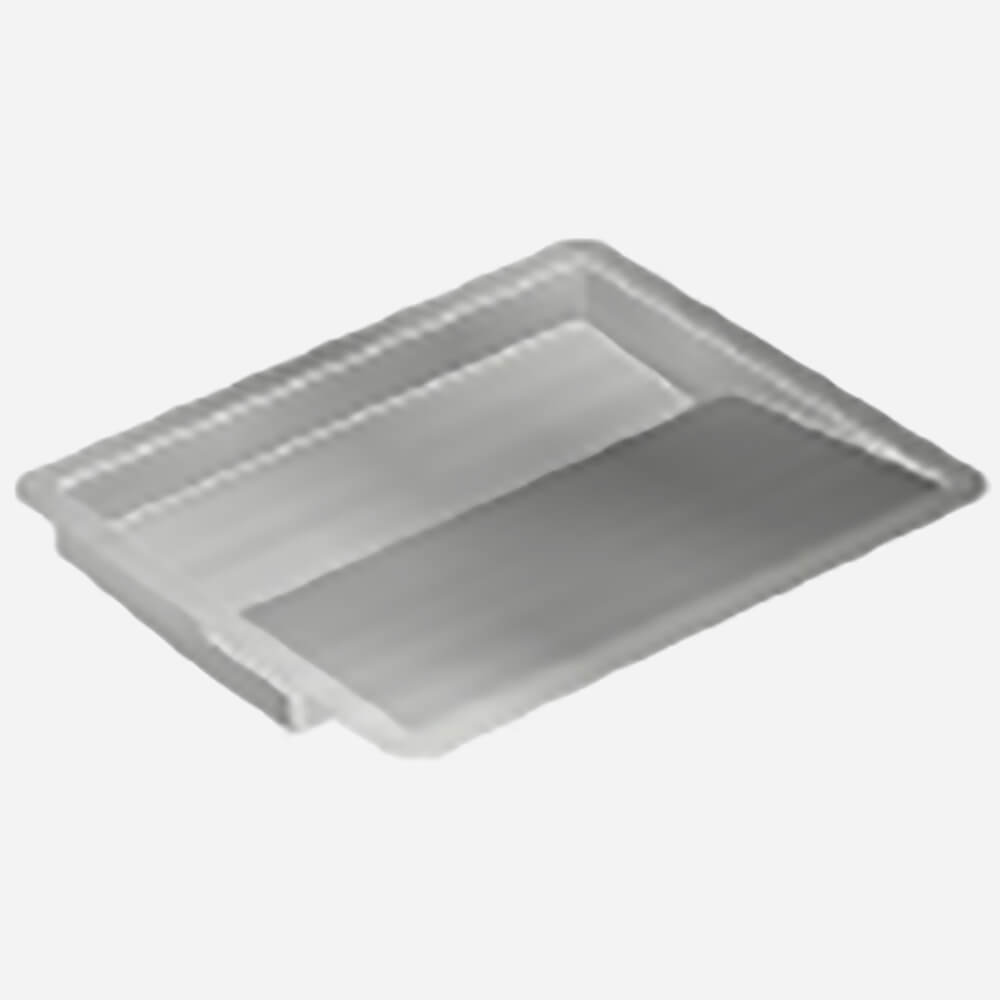

 | 3673 | Option: Bowl Style - 17"W Shallow Ebb Inset Basin | ||
 | 3674 | Option: Bowl Style - 36"W Shallow Ebb Inset Basin | ||

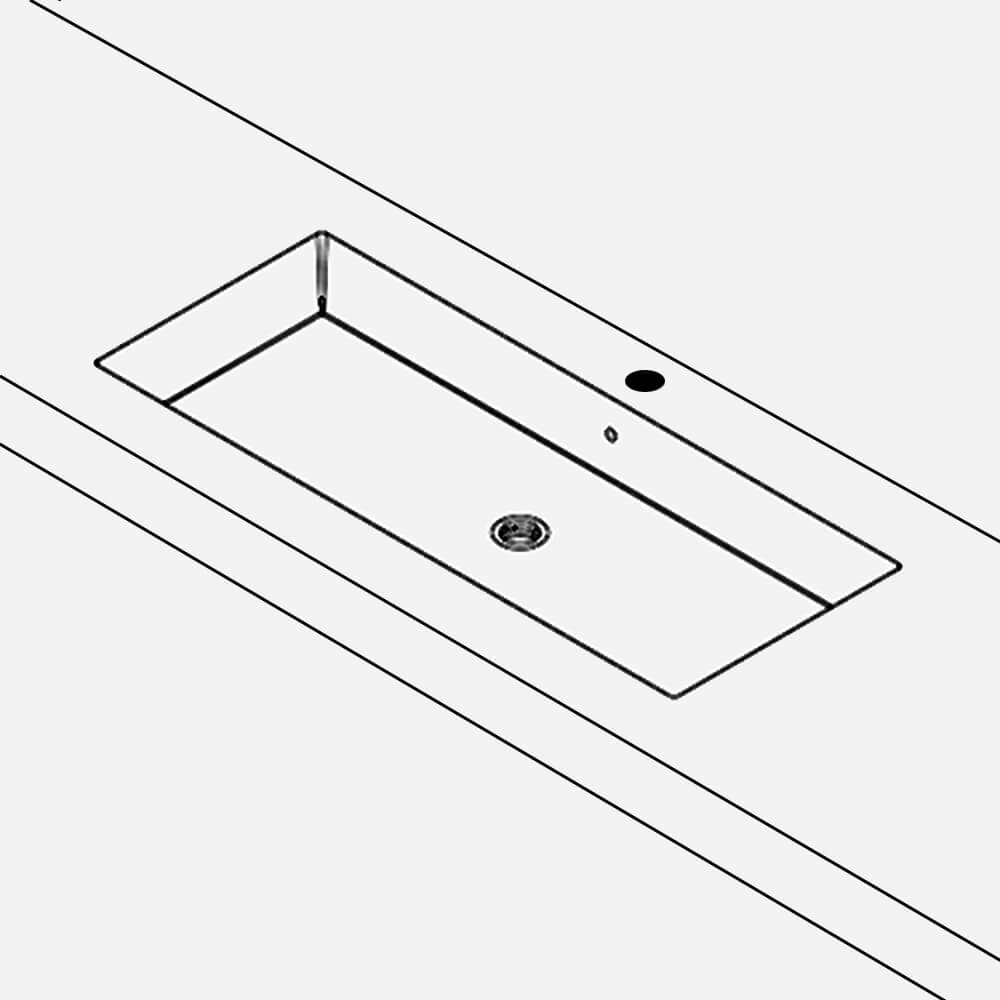

 | 3676 | Option: Bowl Style - Long Rectangular Solid Surface | ||

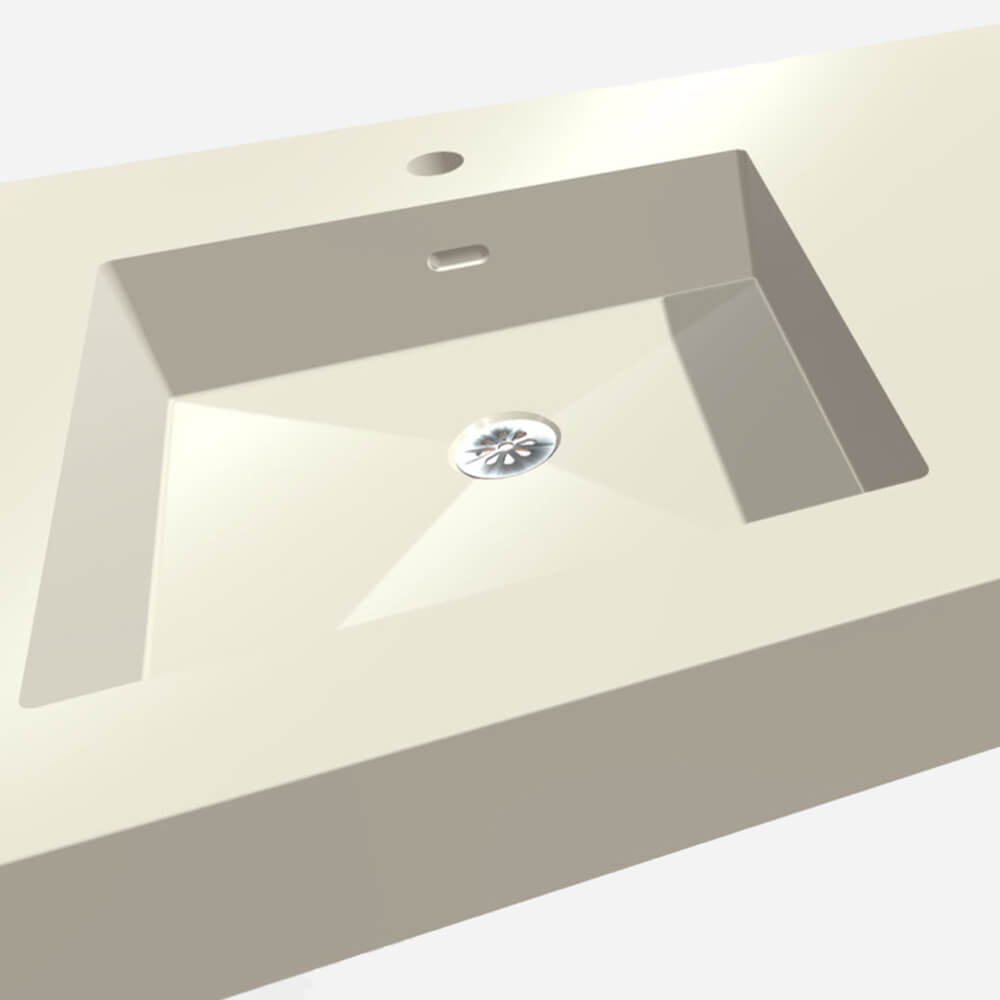

 | 3679 | Option: Bowl Style - Rectangular Solid Surface | ||
 | BBSQ | Option: Bowl Style - Square Solid Surface | ||
 | MC (solid surface/resin decks) | Option: Deck Mounting - Standard Wall-Mounted Arm & Carrier | ||
 | MC-FLR | Option: Deck Mounting - Commercial Floor-Mounted Arm & Carrier | ||

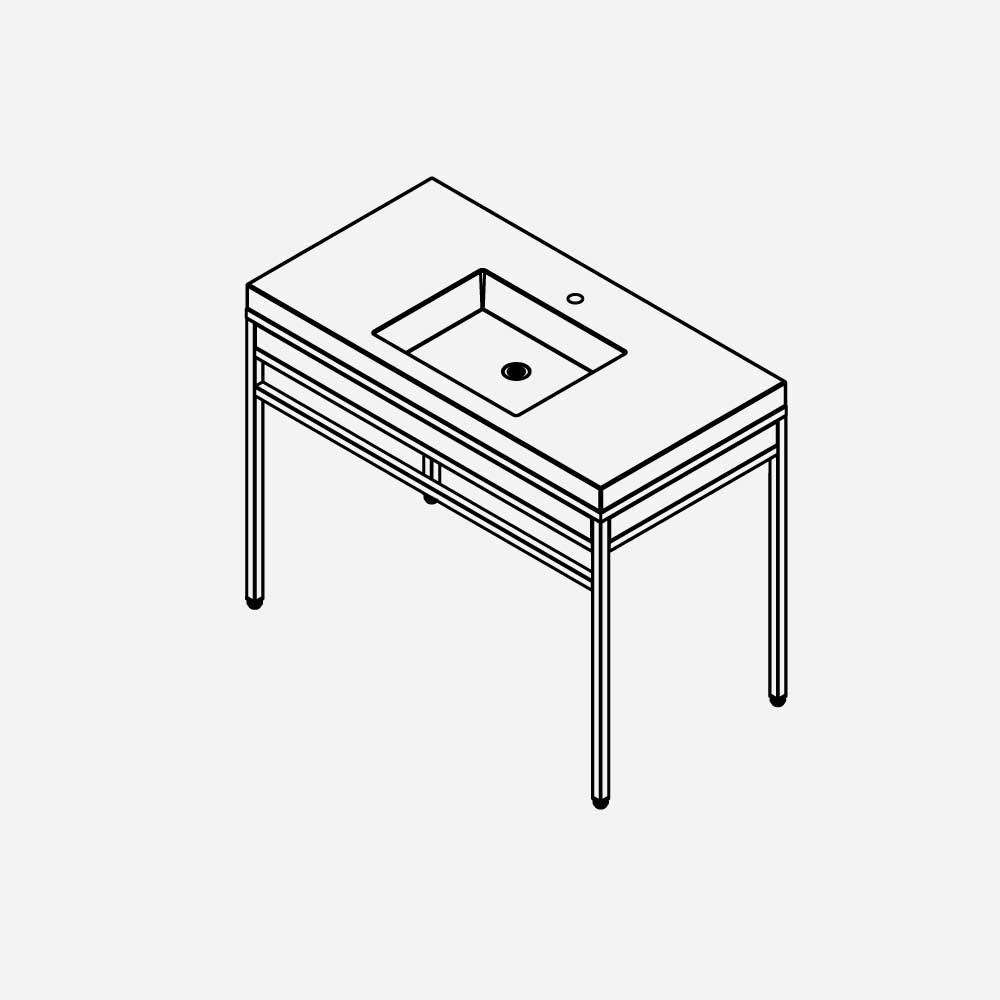

 | TBS | Option: Stainless Steel Towel Bar |
Colors
Resin Color
RDC01 | Cloud Nine
RDC02 | Stealth Fog (opaque smoke resin)
RDC03 | Yokan (amber resin)
RDC04 | Oceana (aqua resin)
RDC05 | Skye (blue resin)
RDC06 | Cranjuice (red resin)
RDC07 | Wineberry (purple resin)
RDC08 | Green Tea (dark green resin)
RDC09 | Green Apple (green resin)
RDC11 | Tangerine Dream (orange resin)
RDC12 | Blueberry (turquoise)
RDC00 | Custom (customer specified resin/solid surface)
Solid Surface Color
AMA | SteriTouch® Antimicrobial Additive
OCC18 | Parchment
OCC19 | Cotton Tail
OCC20 | Meteorite
OCC21 | Moonstone Metallic
OCC11 | Blanco (Glossy)
OCC11M | Blanco Matte
Steel Finish
S | Satin Finish Stainless Steel Frame
HP | Mira High Polish Stainless Steel Frame
EG-10 | White Gloss Powder Coated Stainless Steel Frame
EG-22 | Black Matte Powder Coated Stainless Steel Frame
EG-07 | Black Gloss Powder Coated Stainless Steel
EG-26 | White Matte Powder Coated Stainless Steel
EG-00 | Custom Powder Coating
Models
Typical models are shown below; -TBS, -SS, are available for each length model.

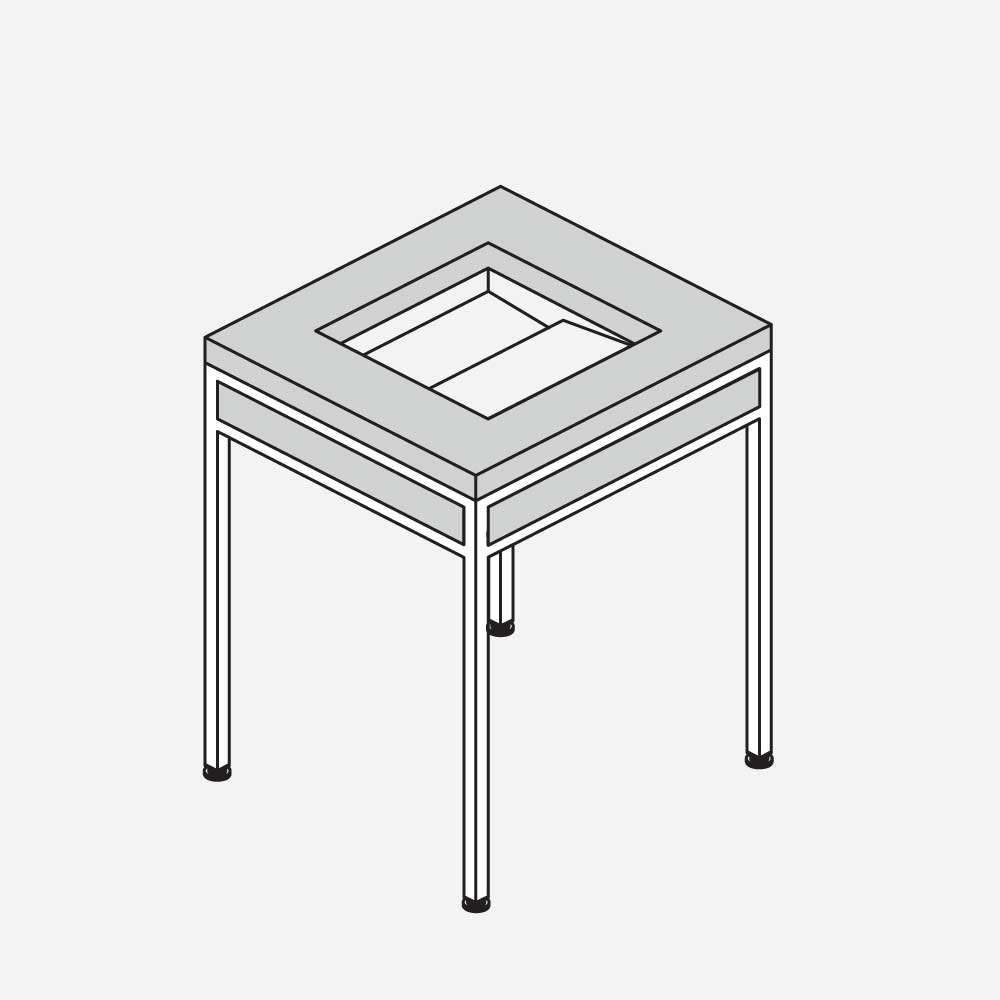

Model 9108
Standard basic console
24" (609 mm) width
Submittal | Install Guide | Assembly Guide
Model 9110
Standard basic console
36" (915 mm) width
Submittal | Install Guide | Assembly Guide

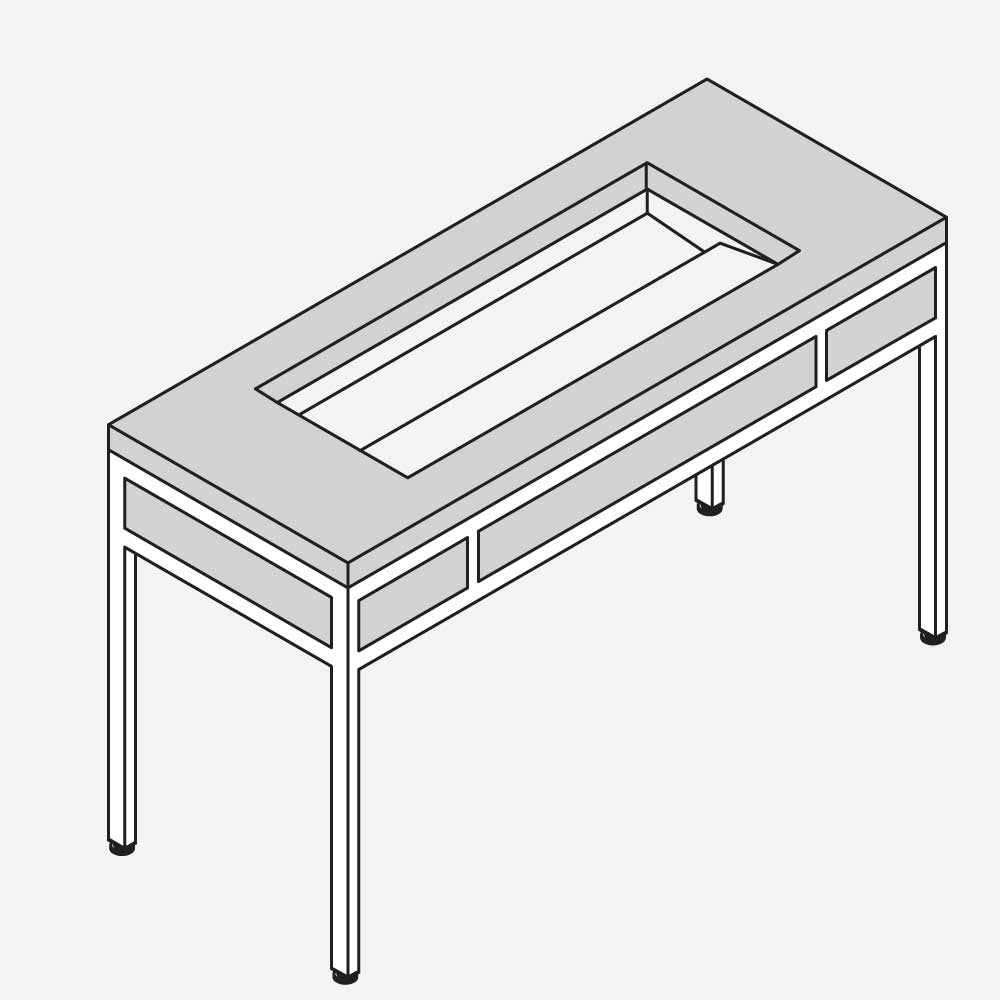

Model 9112
Standard basic console
55" (1,400 mm) width
Submittal | Install Guide | Assembly Guide

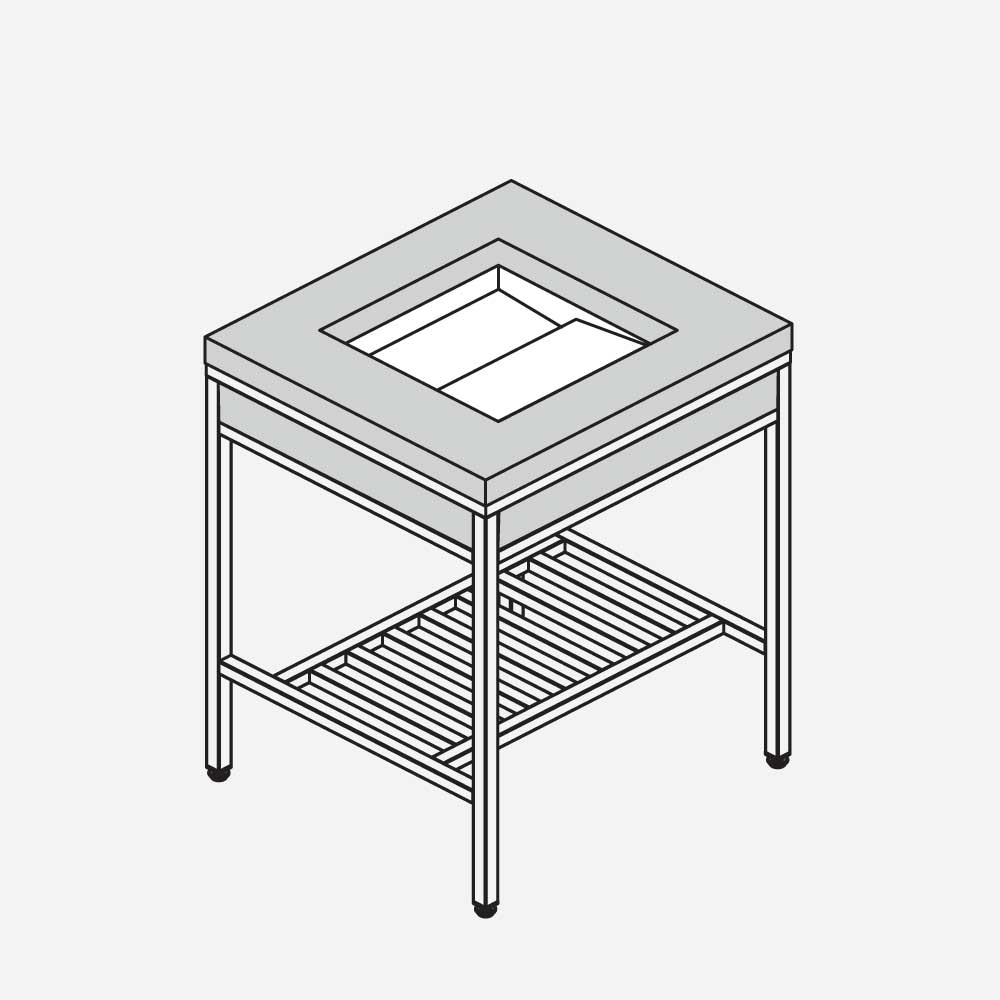

Model 9108-SS
With slat shelving
24" (609 mm) width console
Submittal | Install Guide | Assembly Guide

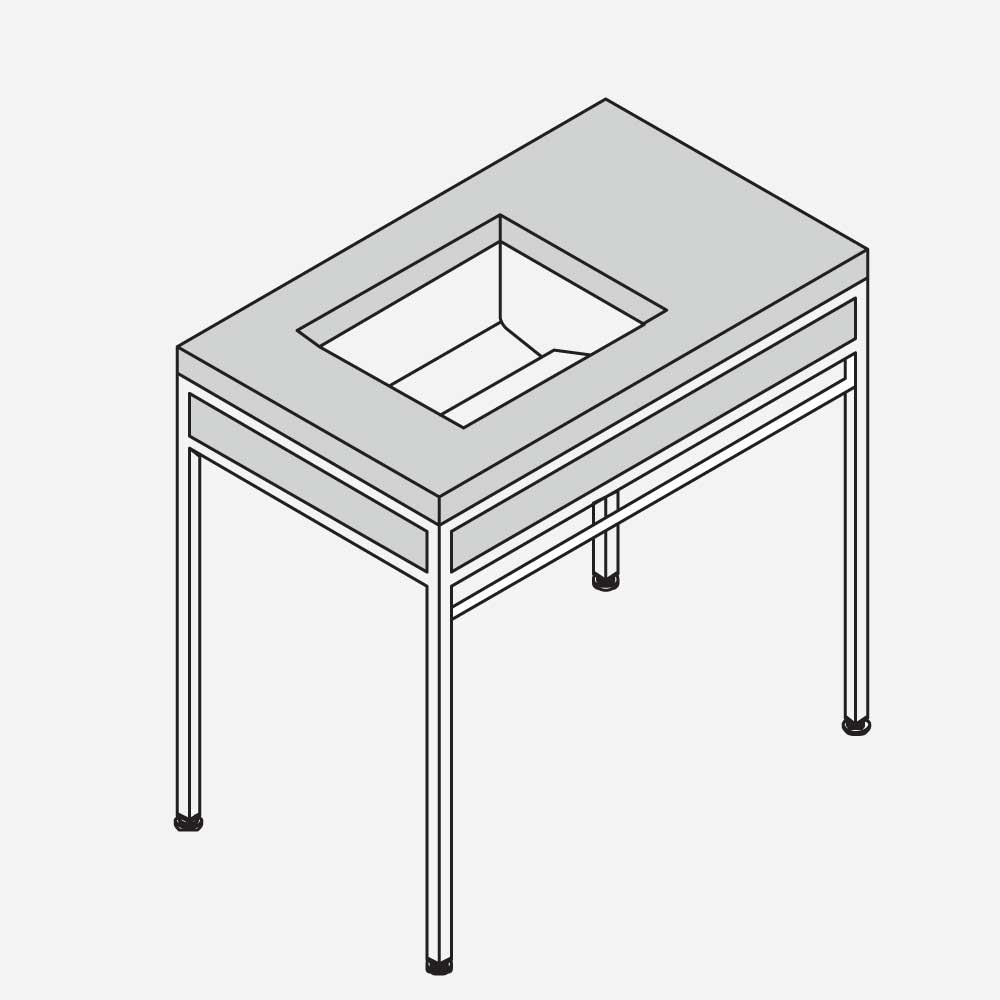

Model 9110-TBS
With towel bar
36" (915 mm) width console
Submittal | Install Guide | Assembly Guide

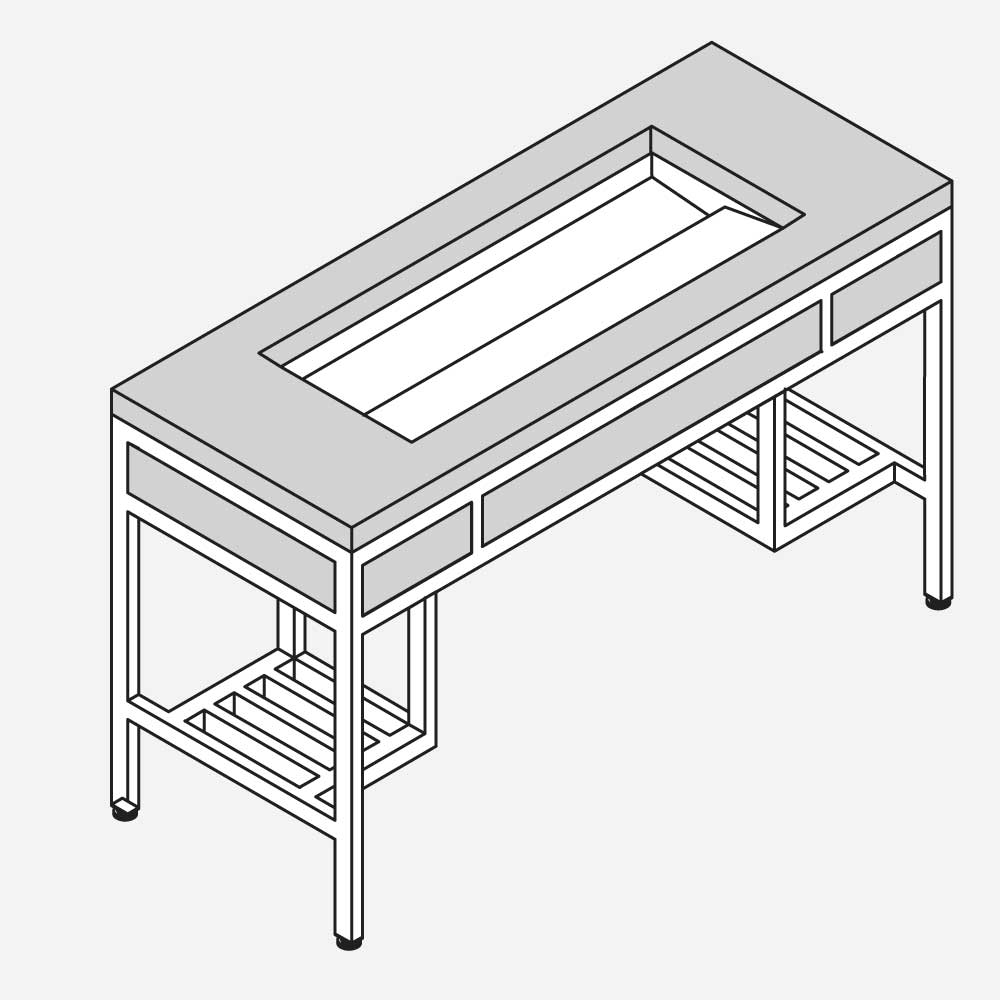

Model 9112-SS
With slat shelving
55" (1,400 mm) width console
Submittal | Install Guide | Assembly Guide

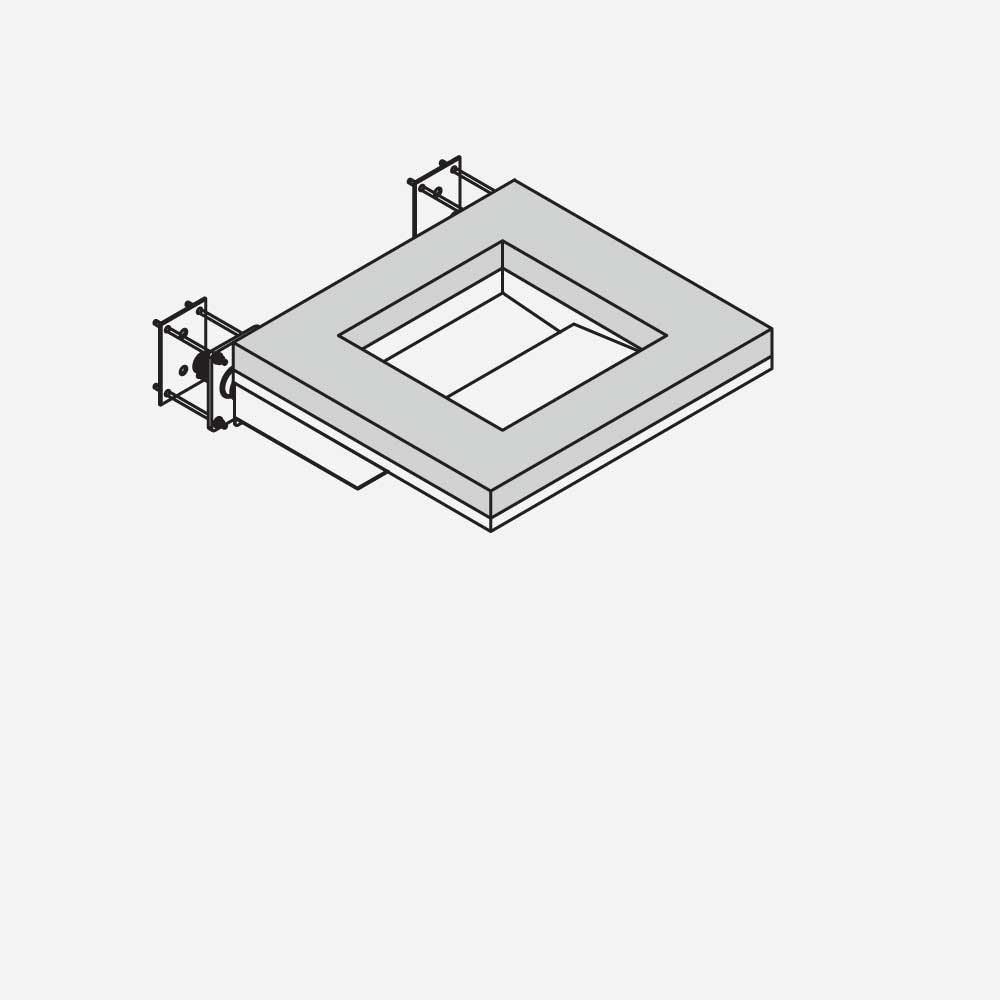

Model 9108-WM-MC
Light commercial carrier arms
24" (609 mm) width wall mount deck
Submittal | Install Guide

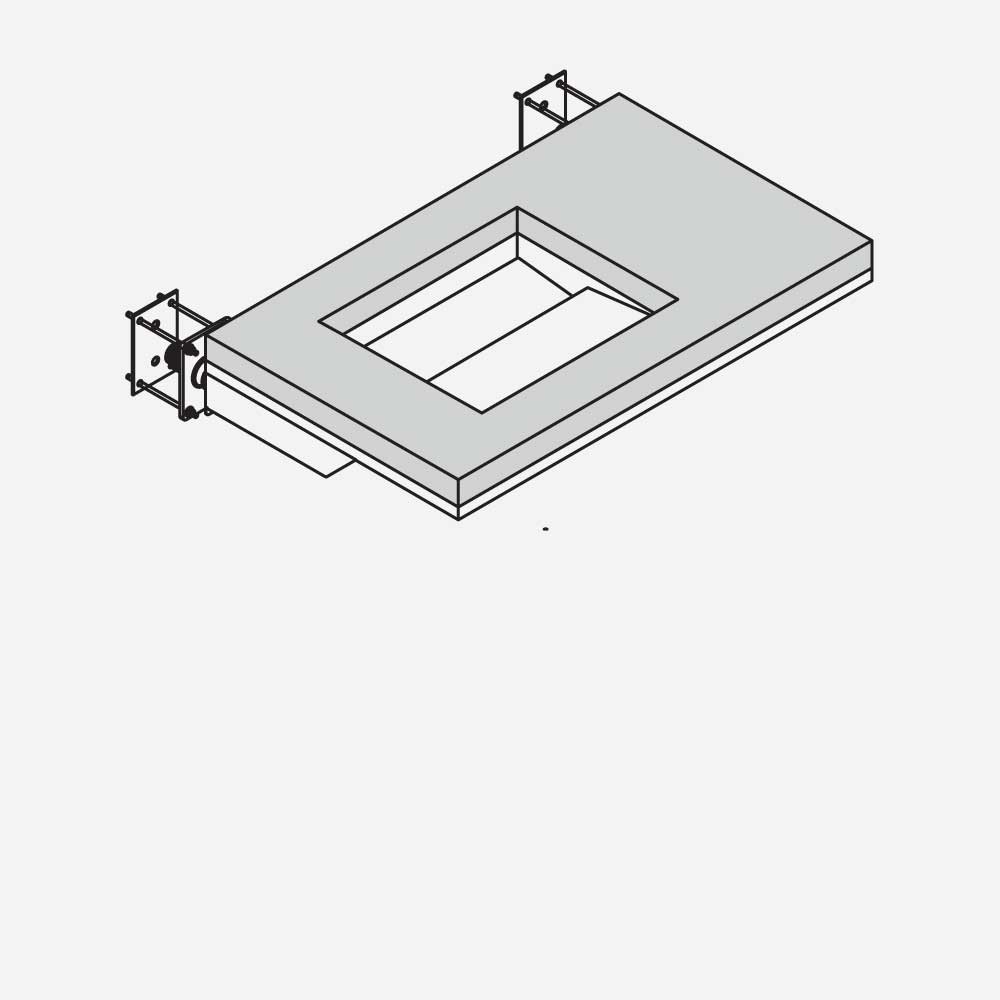

Model 9110-WM-MC
Light commercial carrier arms
36" (915 mm) width wall mount deck
Submittal | Install Guide

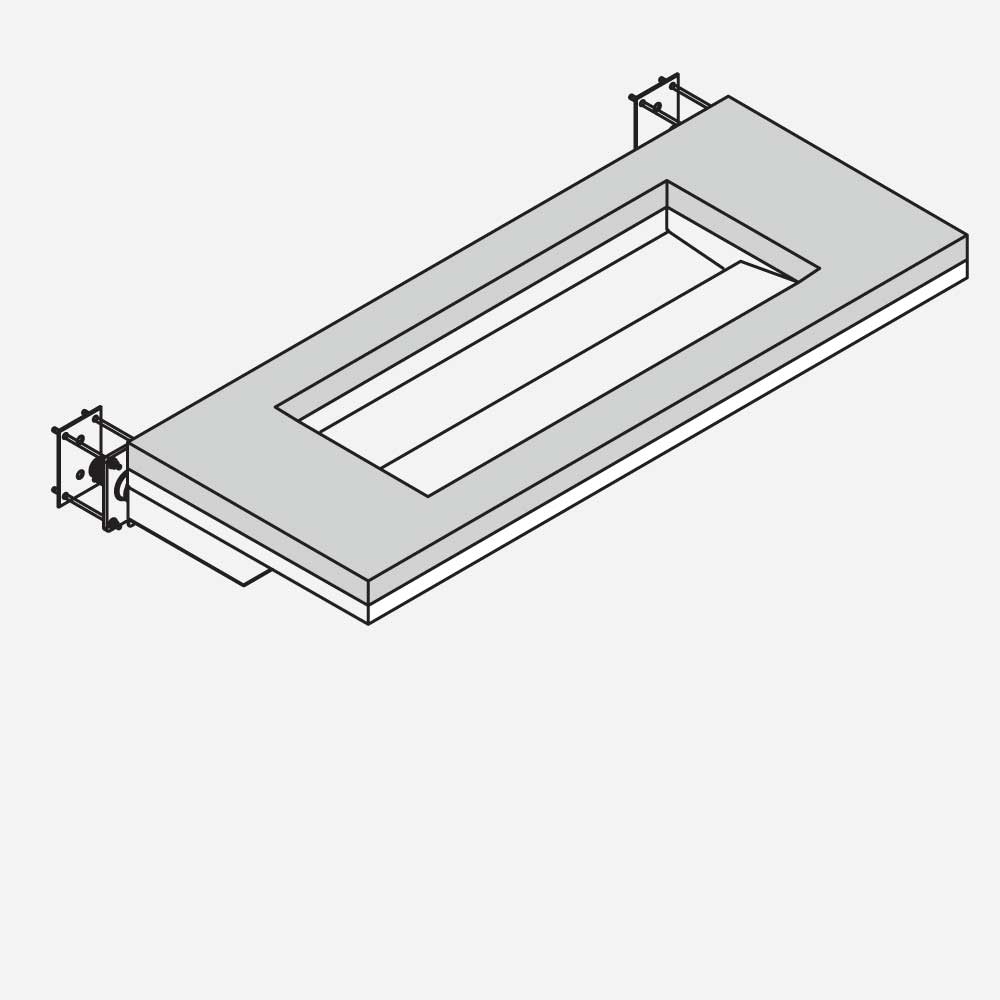

Model 9112-WM-MC
Light commercial carrier arms
55" (1,400 mm) width wall mount deck
Submittal | Install Guide

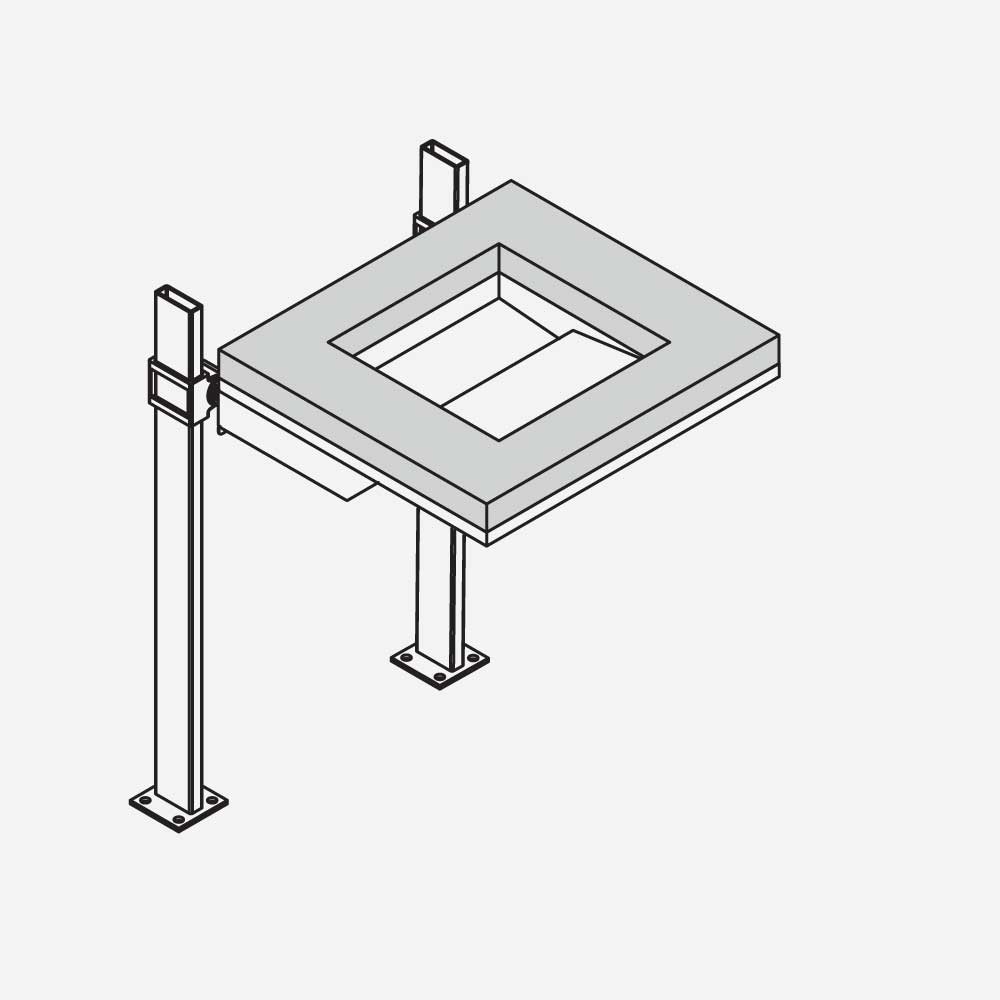

Model 9108-WM-MC-FLR
Heavy-duty floor mount carrier
24" (609 mm) width wall mount deck
Submittal | Install Guide

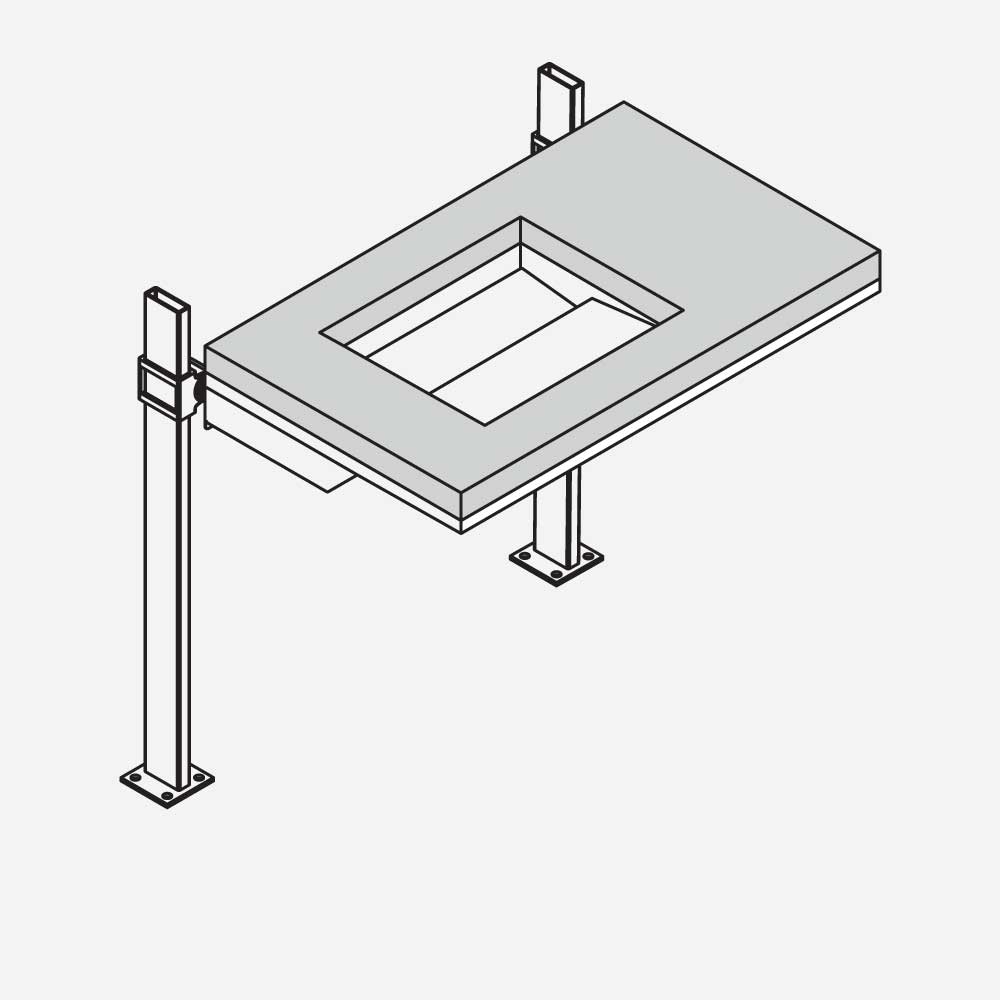

Model 9110-WM-MC-FLR
Heavy-duty floor mount carrier
36" (915 mm) width wall mount deck
Submittal | Install Guide

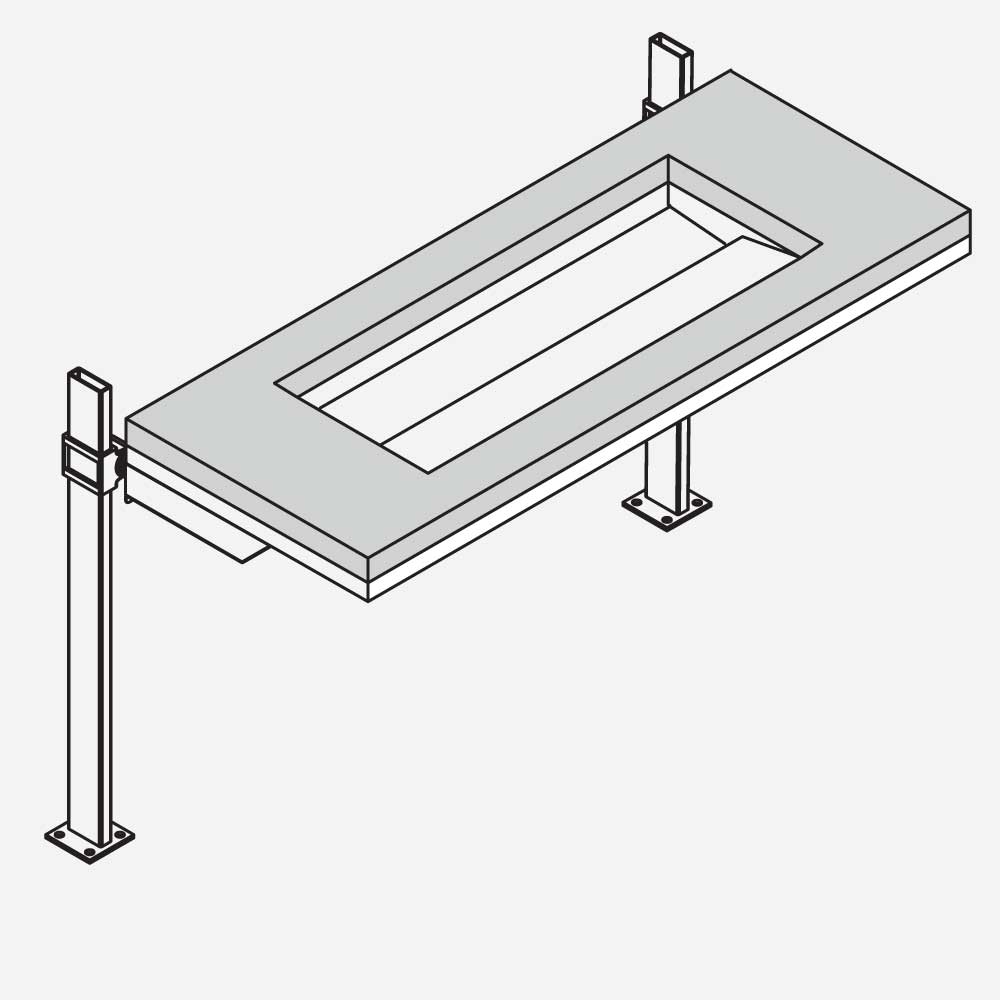

Model 9112-WM-MC-FLR
Heavy-duty floor mount carrier
55" (1,400 mm) width wall mount deck
Submittal | Install Guide
