Neo-Tub
The Neo-Tub shall be manufactured with heavy-gauge, type 304 stainless steel. Construction shall be seamless welded, and exposed surfaces shall be polished to a satin finish. The tub shall have a reinforced rim and be fitted with a skirt that is flush with the floor line. A 2" (51 mm) combination drain and overflow assembly is provided. Model 8970 is 61" (1549 mm) long and holds 90 gallons (341 liters). Model 8971 is 67" (1702 mm) long and holds 110 gallons (398 liters).

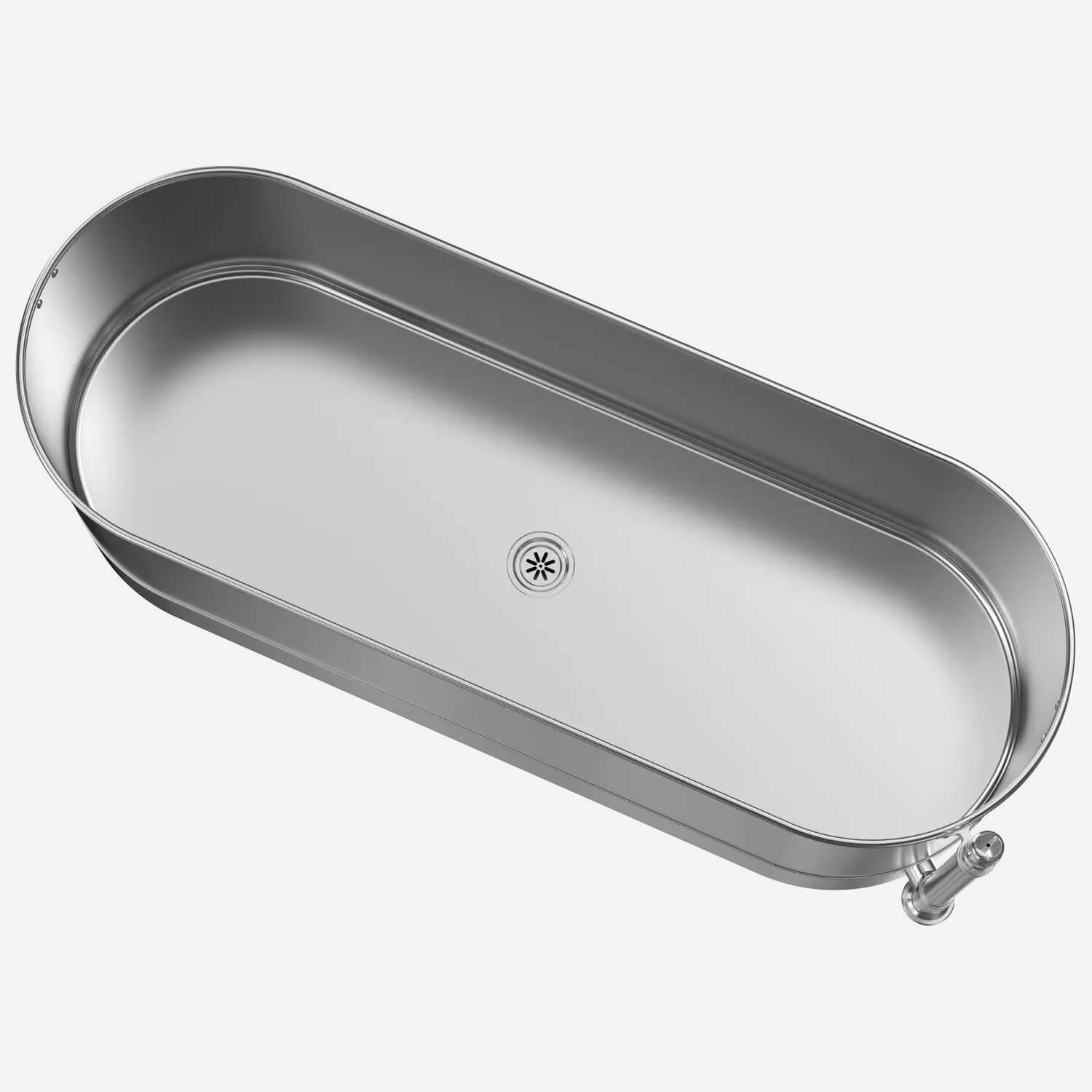

The drain in the tub floor is positioned in the center. Water drains out to the 2" (51 mm) combination drain and overflow assembly positioned toward the end of the tub in Angled Right (-AR) or Angled Left (-AL) configuration. Faucet not provided.
FEATURES
- Large one-piece soaking tub
- Heavy stainless steel construction
- Available in standard capacities of 90 gallons (341 liters) or 105 gallons (398 liters)
- Reinforced tank rim
- The extended skirt conceals internal drain piping
- Combination Drain & Overflow mounted in Angle Left (-AL) or Angle Right (-AR) configurations
- The faucet and drain on the floor are not supplied
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Neo-Tub (8970 and 8971) | 134 KB | |||
| | Neo-Tub (61 and 67") | 563 KB | |||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Cleaning guidelines for Neo-Metro products | 0 | 252 KB |
Specifications
| Material | Stainless Steel |
| Mount | Floor Mounted |
| Tub Wall | Single Wall Thickness |
| Options | -RS | Reclining Seat |
| Environmental/Health | Contains Recycled Material, Recyclable |
| Steel Finish | Satin Finish Stainless Steel [STANDARD - plain model number], -EG-00 | Custom Powder Coating |
| Orientation | Angle Left (drain/overflow for tub), Angle Right (drain/overflow for tub) |
Colors
Steel Finish
![Satin Finish Stainless Steel [STANDARD - plain model number]](https://assets.morrisgroupint.com/assets/2dc4b603-3210-47b1-a3c9-df9f8af60dd7.jpg)
Satin Finish Stainless Steel [STANDARD - plain model number]
EG-00 | Custom Powder Coating
Models

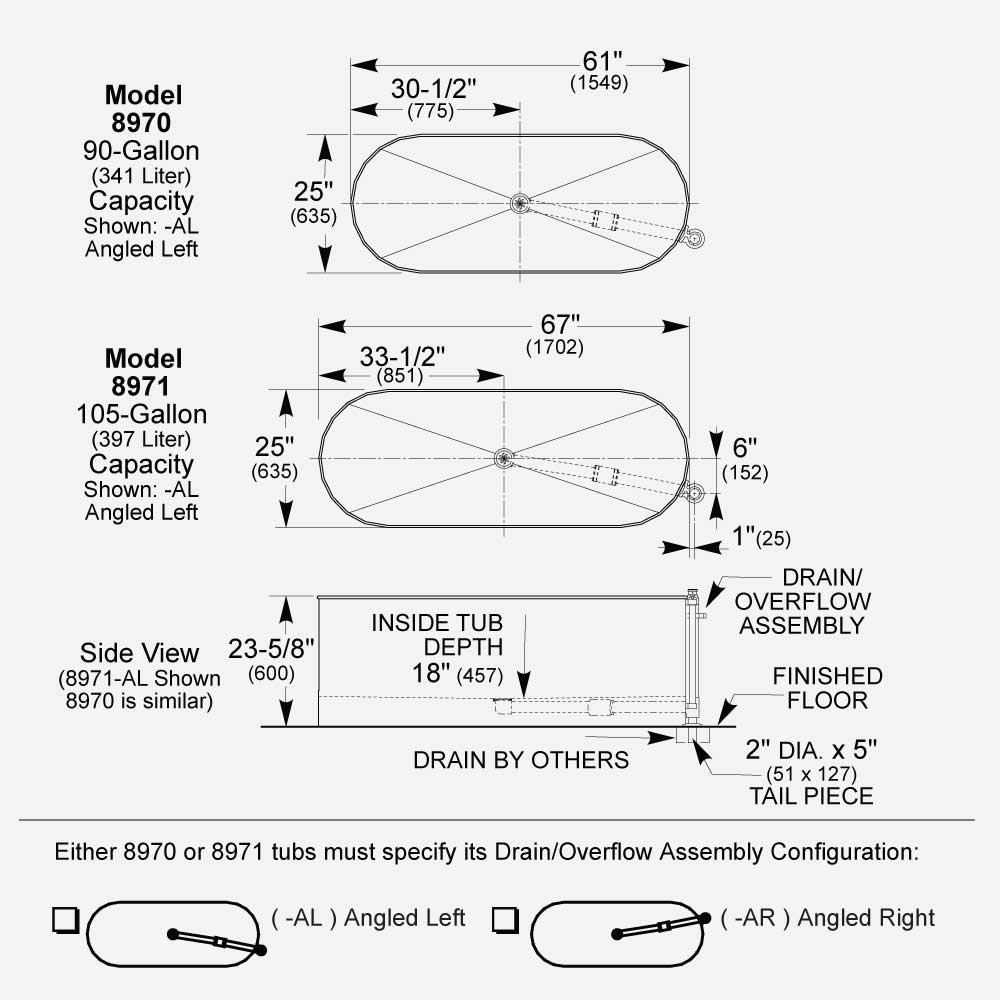

61" (1549 MM) LONG TUB HOLDING 90 GALLONS (341 LITERS)

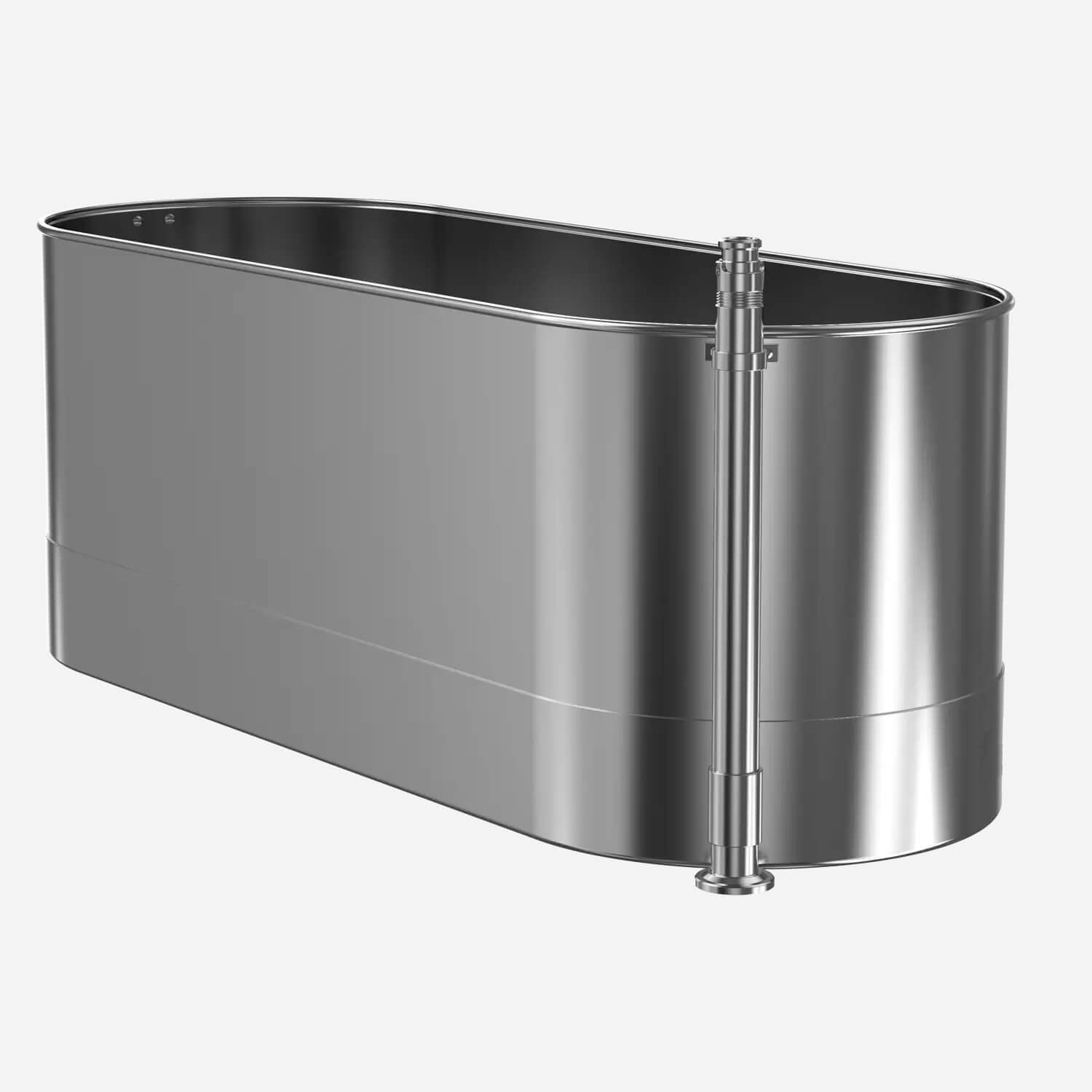

8970
Shown: Angle Left (-AL)
8970-AL
Angle Left (-AL)
8970-AR
Angle Right (-AR)
67" (1702 MM) LONG TUB HOLDING 105 GALLONS (398 LITERS)

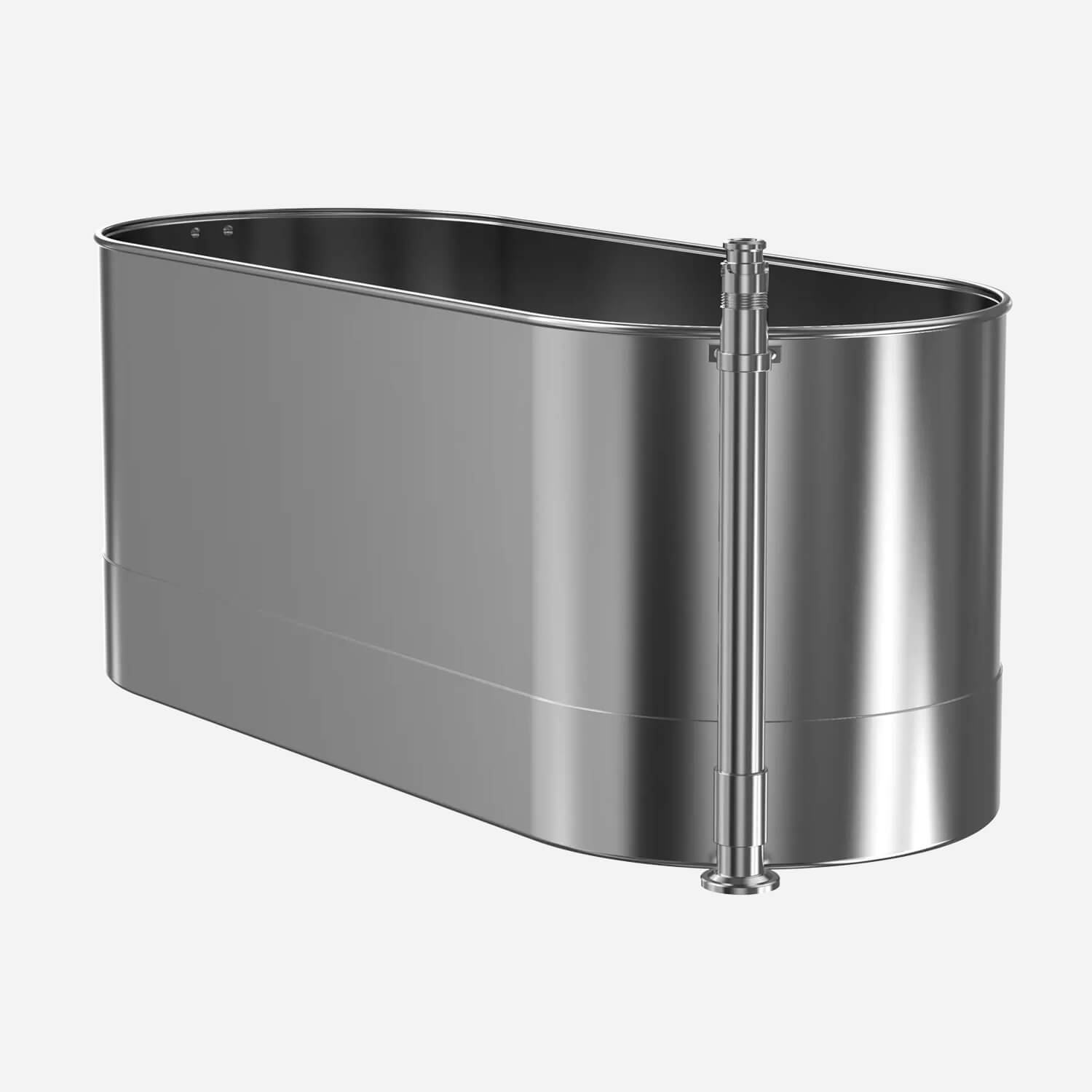

8971
Shown: Angle Left (-AL)
8971-AL
Angle Left (-AL)
8971-AR
Angle Left (-AR)
