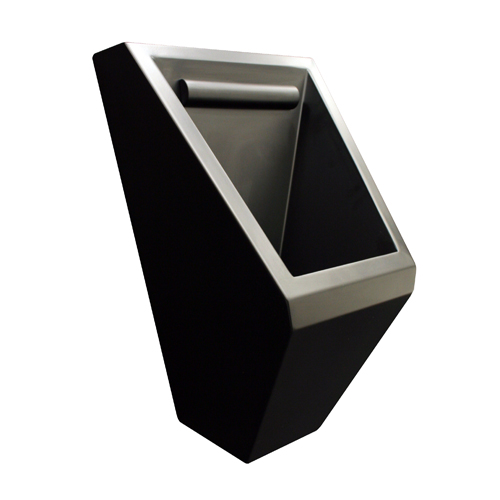

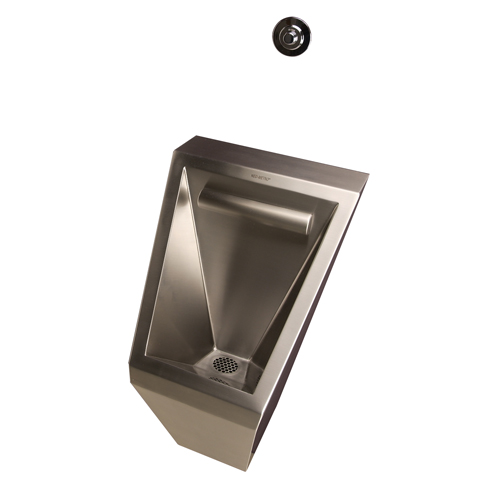

Prizm Stainless Steel Urinal

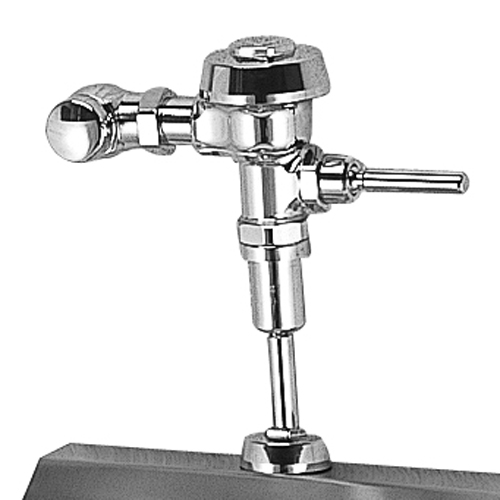

The Prizm Urinal is an angular washout type urinal. It requires a commercial 1" (25.4 mm) water supply line operating at 35 psi (2.41 bars). It is designed to work with a flush valve releasing a low 1.0 gallon (3.8 liter). The urinal is available in a Top Supply configuration with a top spud (typically with a exposed urinal flush valve). A Wall Supply configuration with a rear inlet (typically with a concealed urinal flush valve) is also available.Properly mounted 8946 urinals are ADA Compliant. The rim of the urinal is recommended no more than 17" (432 mm) above finished floor. An ADA compliant flush valve must also be used. ADA compliance is subject to the interpretation and requirements of local code authority. Please check your local ADA regulations.
