Metro Urban Stainless Steel Toilet

Find A Representative
Model 8950-3 Series
ADA Compliant
Installation Instructions
Installing Bowl for 8950-3 Toilet (pdf)
View
Submittal
Tech Sheet 8950-3 Series Toilet (pdf)
View
Model 8950-3 Series

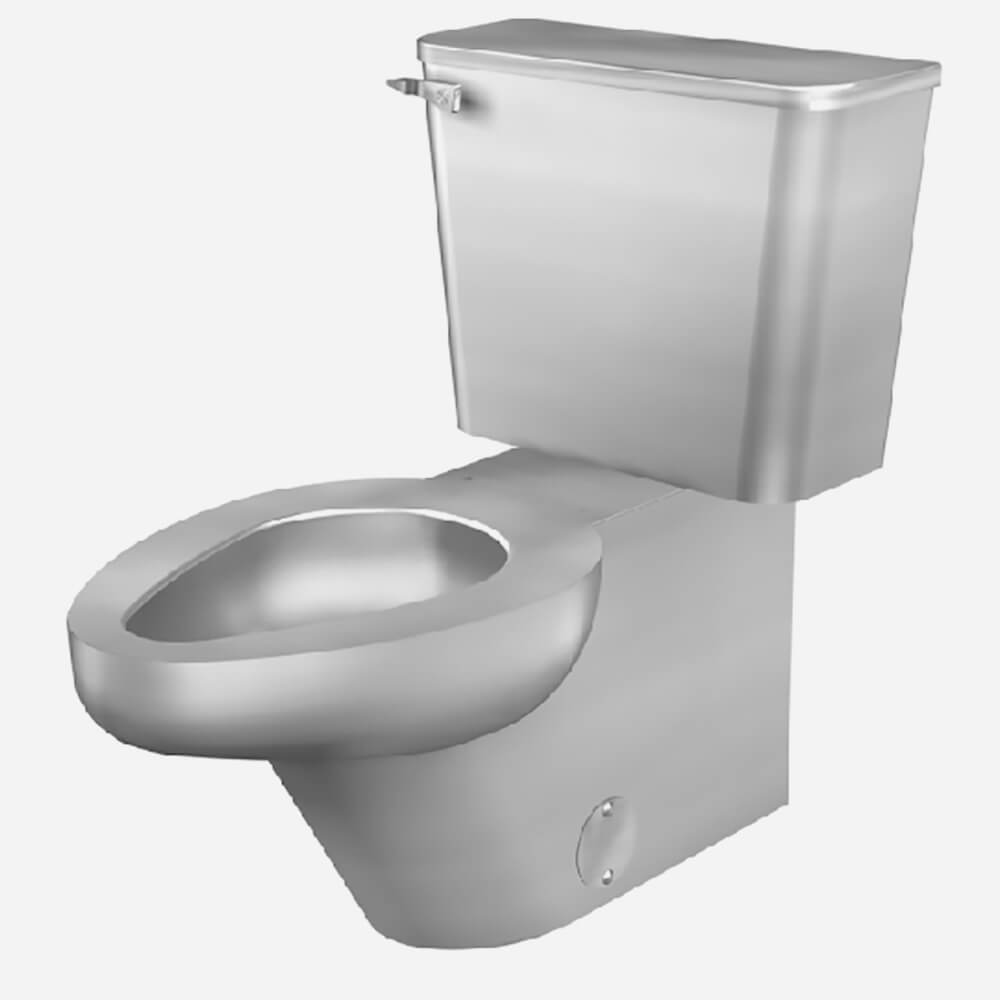

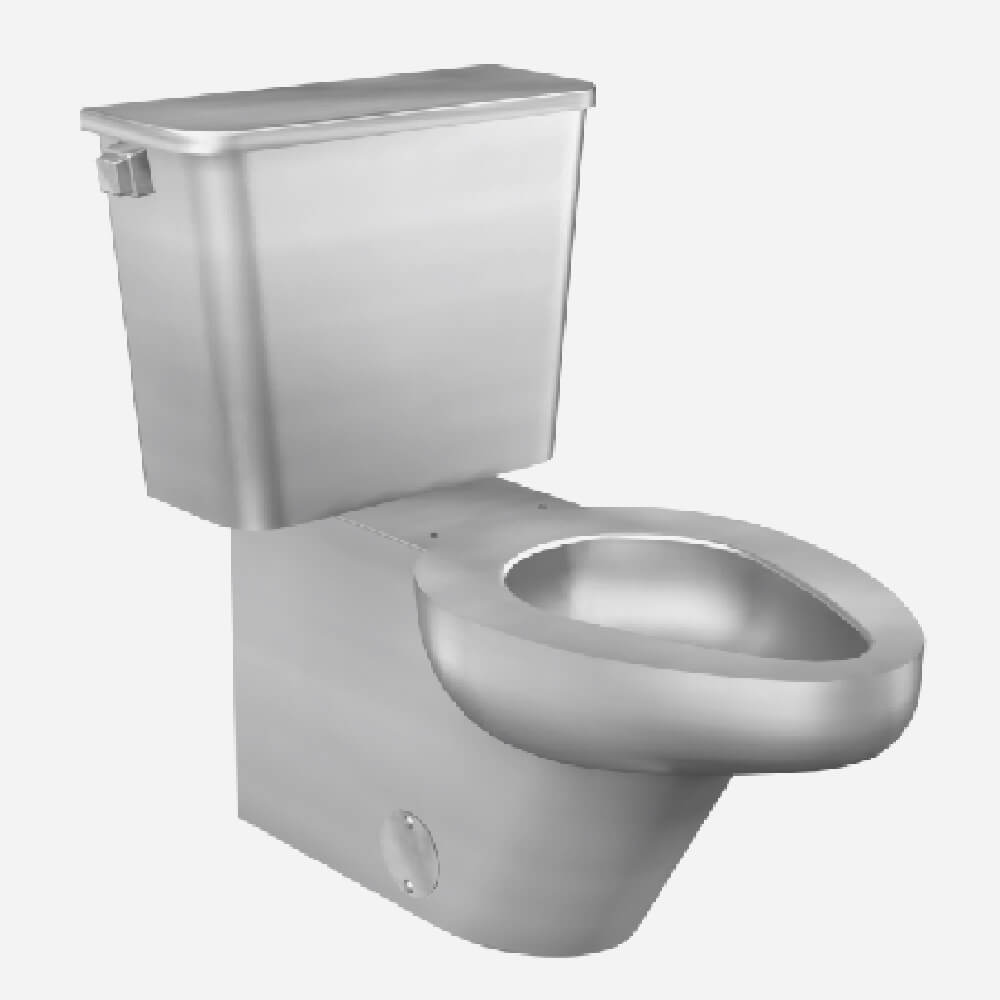

Metro Urban Stainless Steel Toilet

The Metro Urban Toilet, a residential-style two-piece cistern toilet, is Neo-Metro's most popular product. This toilet is perfect for a residence or a commercial installation where a flush valve can not be used.

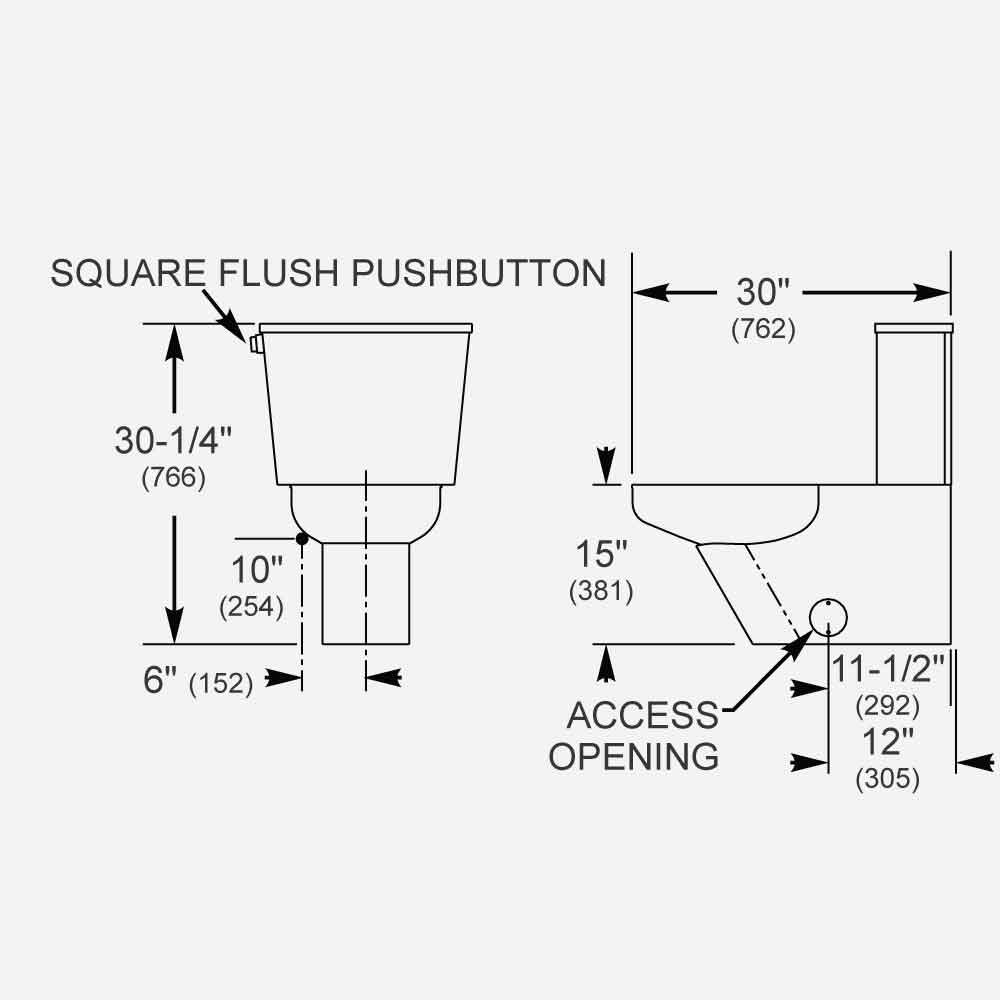

The toilet uses standard residential water inlet and waste outlet. Fill valve inlet is 1/2" NPS. Wall inlet location recommend at 6" (152 mm) from the center and 10" (254 mm) from finished floor. On-floor waste outlet to be located 12" (305 mm) from finished wall. Access via removable side panels.

ADA compliant Metro Urban Toilet is available (see specification sheet TS 8950ADA) with a taller bowl and ADA compliant flush activating lever. Other ADA considerations may be required. Please check your local ADA regulations.

  • Toilet with Cistern tank works with standard residential water inlet & waste outlet
  • Heavy 16-gauge stainless steel construction
  • Satin Finish (entire unit) is standard

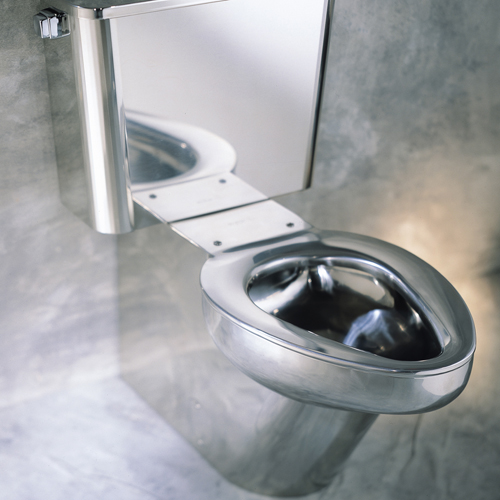

  • Optional Mira high polish finish
  • Elongated toilet bowl (Neo-Metro does not supply seat)
  • Polyethylene Inner Tank
  • Flush Valve Is Adjustable From 1.28 Gallons (4.8 Liters) To 1.6 Gallons (6 Liters) Per Flush

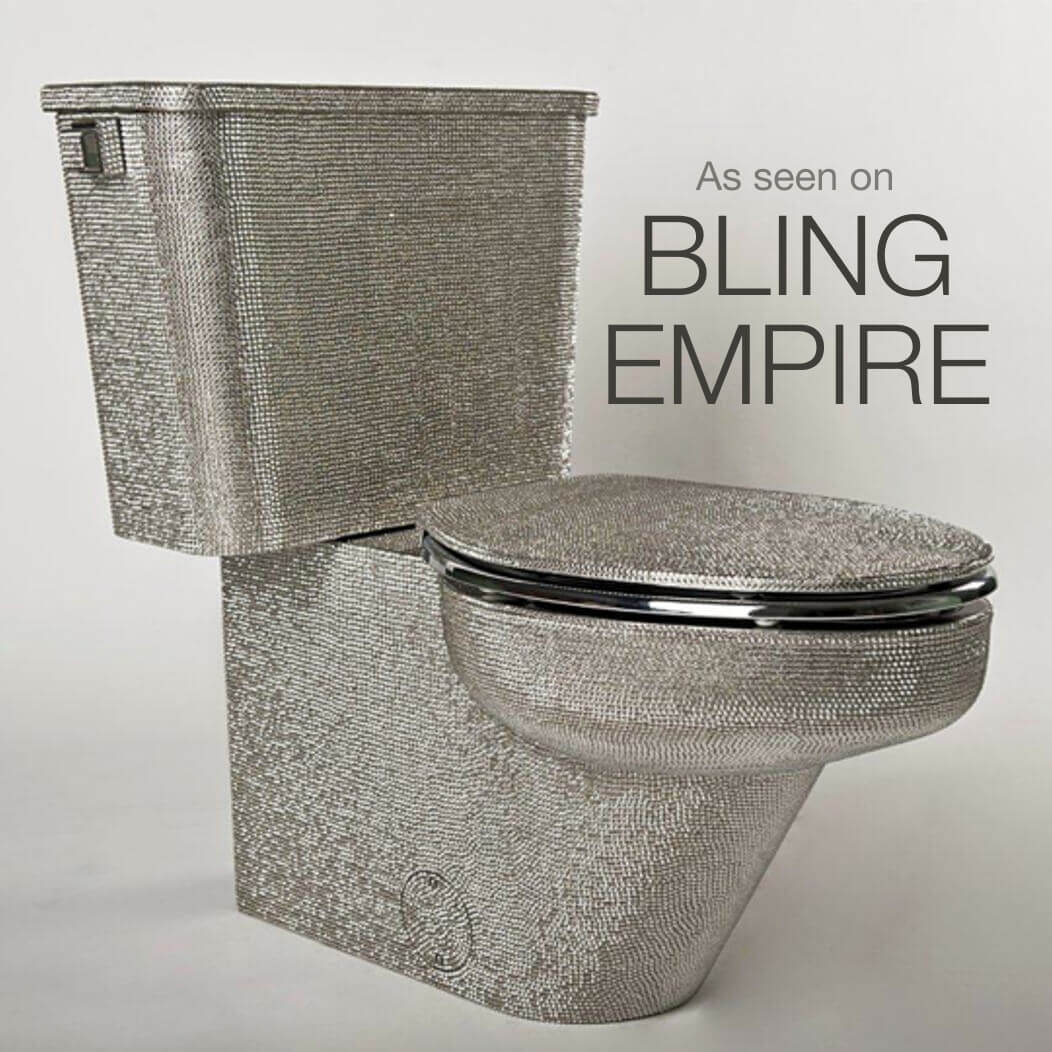

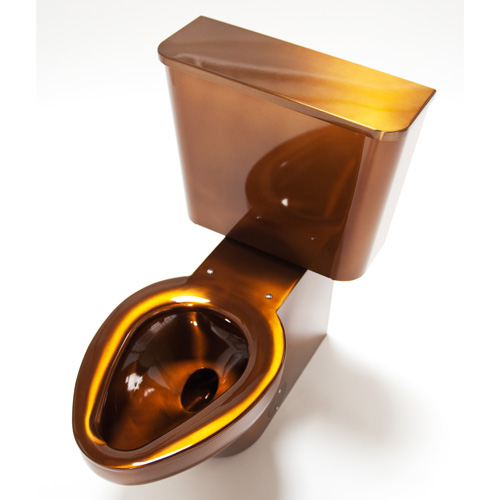

  • Various standard powder coat finishes are available. Also, customization is encouraged - custom color powder coating and even studded with crystal. Show us your creativity! See the Bling Toilet for an over-the-top example.

Downloads

Resource Type
Title
Description
Answers
File Size
Action
PDF icon
Installation Instructions
PDF icon
Installing Bowl for 8950-3 Toilet (pdf)
Bowl Segment Install for Metro Urban Toilet169 KB
PDF icon
Submittals
PDF icon
Tech Sheet 8950-3 Series Toilet (pdf)
Metro Urban Toilet - Standard Height includes various finishes, accommodations for both Residential Toilet Seat and Commercial Toilet Seats [Standard Models 8950-3, 8950-3-PFS]216 KB
RFA icon
Revit/BIM Drawings
RFA icon
8950 Toilet (rfa)
Metro Urban Toilet0268 KB
RFA icon
Revit/BIM Drawings
RFA icon
8950 ADA Toilet (rfa)
ADA Metro Urban Toilet0268 KB
RFA icon
Revit/BIM Drawings
RFA icon
8950 Toilet (dwg)
Metro Urban Toilet0170 KB
RFA icon
Revit/BIM Drawings
RFA icon
8950 ADA Toilet (dwg)
ADA Metro Urban Toilet0158 KB
PDF icon
Submittals
PDF icon
Tech Sheet 8950ADA Series Toilet (pdf)
ADA Compliant Metro Urban Toilet - Standard Height includes various finishes, accommodations for both Residential Toilet Seat and Commercial Toilet Seats [Standard Models 8950-ADA-3, 8950-ADA-3-PFS]0532 KB
PDF icon
Installation Instructions
PDF icon
Installing Tank for 8950-3 Toilet (pdf)
Tank Segment Install for Metro Urban Toilet0167 KB
PDF icon
Literature/Brochures
PDF icon
MGI Corporate Brochure (pdf)
Who we are, Our History, Morris Group International Today07 MB
PDF icon
Manuals
PDF icon
Cleaning Guidelines (pdf)
Cleaning guidelines for Neo-Metro products0252 KB

Specifications

AccessibilityADA Compliant
MaterialStainless Steel
MountFloor Mounted
Additional Accessibility Notes8950-3-ADA needs to be specfied for ADA compliance
Steel Finish-HP | Mira High Polish Stainless Steel, Satin Finish Stainless Steel with Mira Trim on Tank Lid [STANDARD - plain model number], -EG-10-SFB | White Gloss Powder Coated; Satin Finish Bowl, -EG-10-HPB | White Gloss Powder Coated; Mira High Polish Bowl, -EG-22-SFB | Black Matte Powder Coated; Satin Finish Bowl, -EG-22-HPB | Black Matte Powder Coated; Mira High Polish Bowl, -EG-00 | Custom Powder Coating
FlushingCistern (supplied)
Toilet Bowl ShapeElongated
Waste Location12" Floor Toilet Rough-In, Optional 10 Inch Floor Rough-in

Colors

Steel Finish

  • Mira High Polish Stainless Steel

    HP | Mira High Polish Stainless Steel

  • Satin Finish Stainless Steel with Mira Trim on Tank Lid [STANDARD - plain model number]

    Satin Finish Stainless Steel with Mira Trim on Tank Lid [STANDARD - plain model number]

  • White Gloss Powder Coated; Satin Finish Bowl

    EG-10-SFB | White Gloss Powder Coated; Satin Finish Bowl

  • White Gloss Powder Coated; Mira High Polish Bowl

    EG-10-HPB | White Gloss Powder Coated; Mira High Polish Bowl

  • Black Matte Powder Coated; Satin Finish Bowl

    EG-22-SFB | Black Matte Powder Coated; Satin Finish Bowl

  • Black Matte Powder Coated; Mira High Polish Bowl

    EG-22-HPB | Black Matte Powder Coated; Mira High Polish Bowl

  • Custom Powder Coating

    EG-00 | Custom Powder Coating

Models

STANDARD HEIGHT TOILETS

8950-3

8950-3

Residential Standard Height Toilet

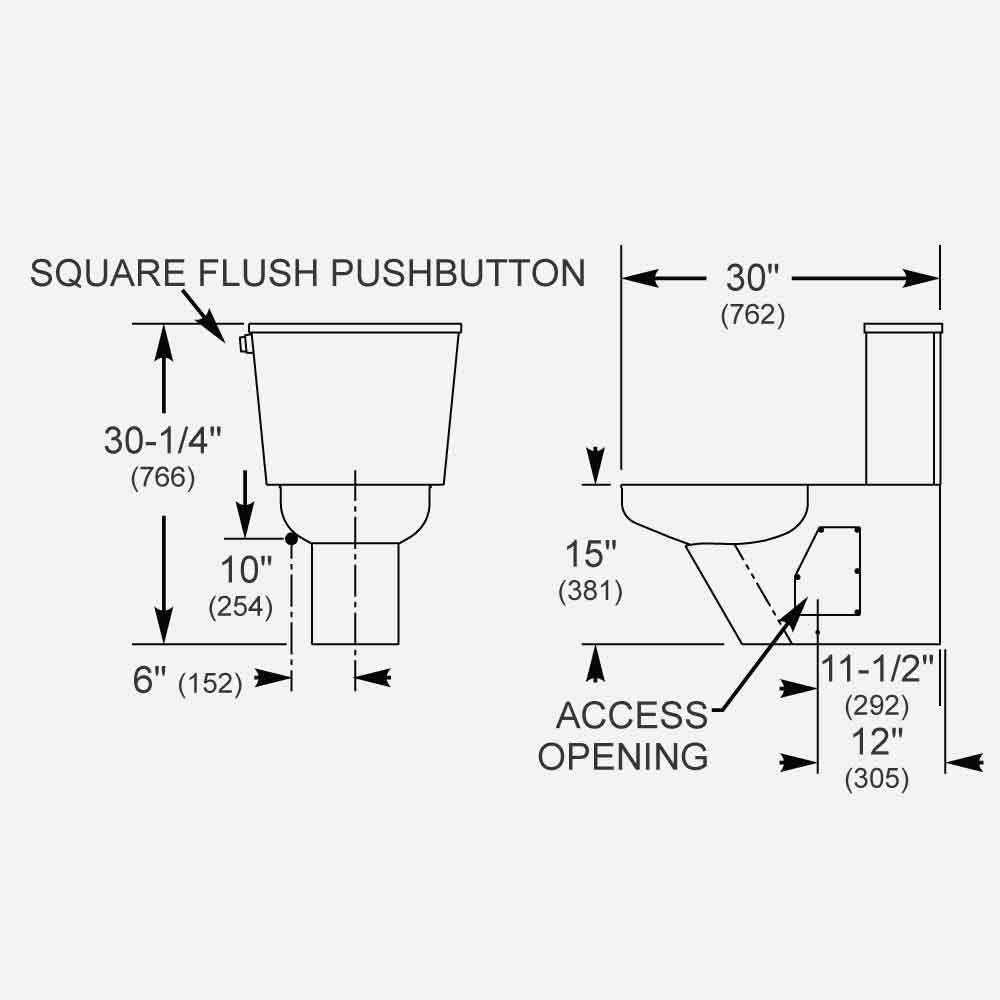

8950-3-PFS

8950-3-PFS

Standard Height Toilet punched for Commercial Seat

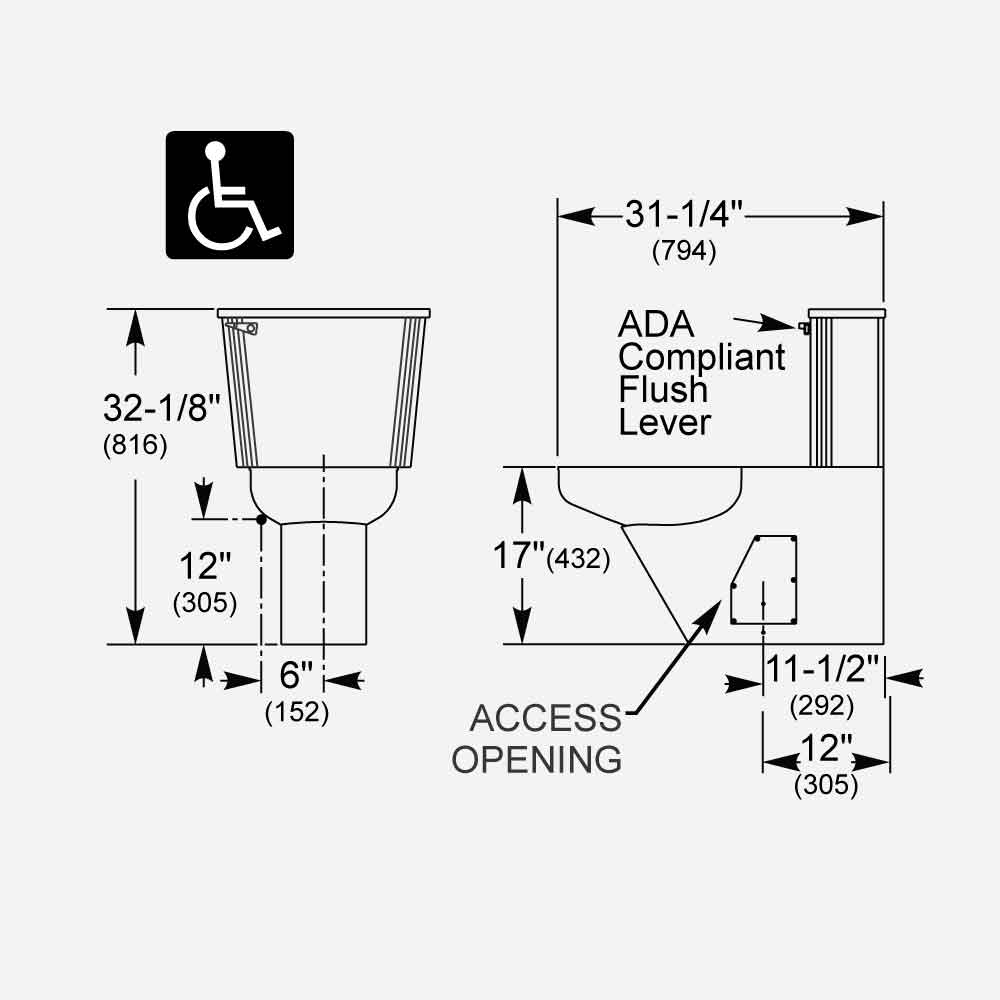

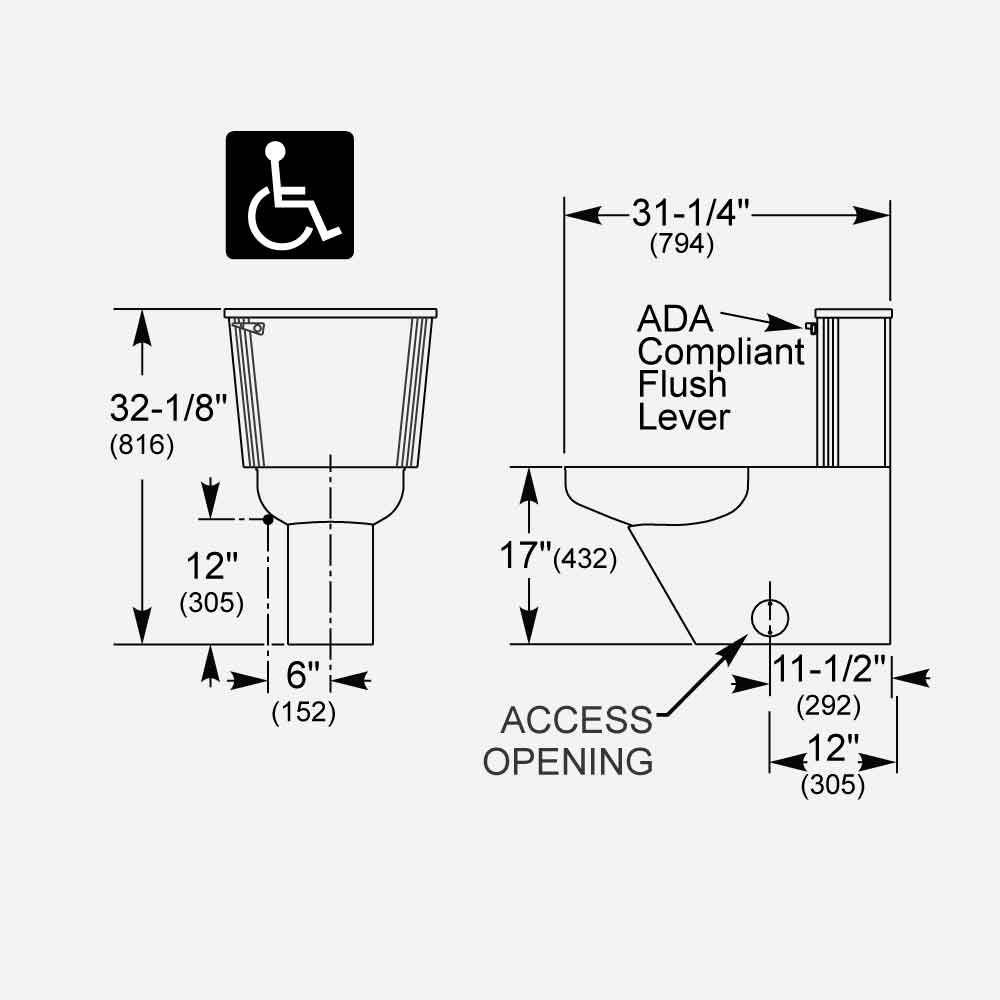

ADA ADA COMPLIANT HEIGHT TOILETS - 17" (432 mm) Rim Height Dimension

8950-3-ADA

8950-3-ADA

ADA compliant Height Toilet

8950-3-ADA-PFS

8950-3-ADA-PFS

ADA compliant Toilet punched for Commercial Seat
