Model 8955-T Series
Contour Stainless Steel Toilet, Top Supply
The Contour Toilet with Top Supply is configured for an exposed flush valve and includes a 1-1/2" NPTE flushing inlet connection at the top of toilet housing. The exposed flush valve utilizes a commercial 1" (25 mm) water supply line. Off-Floor toilet (8955-T-1) shall be mounted on the wall. Wall waste toilets (8955-T-1 and 8955-T-2) feature wall waste rough-in 5-1/2" (140 mm) above finished floor. The On-Floor toilet (8955-T-3) shall be mounted to a finished wall with a floor waste 4-1/4" (108 mm) from finished wall.
- Commercial SIPHON JET ToiletRequiring commercial water supply line to operate. Water flow pressure 35 psi (2.41 bars); Water supply line 1"(25 mm).
- TOP SUPPLY (Exposed) Flush Valve ConfigurationCompatible flush valve (sold separately) releases 1.6 gallons (6 liters) per flush.
- 16-Gauge STAINLESS STEEL CONSTRUCTIONSatin Finish is standard; Also available in Mira (high polish) Finish
- Mounting/Wall Waste Configurations:
- (-1) Off-Floor, Wall Waste
- (-2) On-Floor, Wall Waste
- (-3) On-Floor, Floor Waste
- ELONGATED TOILET BOWLPunched for elongated toilet seat (not included) with 5-1/2" (140 mm) mounting centers.
- ADA compliant toilets are available
- ANSI A112.19.2 compliant
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Top Supply, Off-Floor (also includes ADA install) | 183 KB | |||
| | Top Supply Contour Toilet 8955-T-1 (Off-Floor); 8955-T-2 (On-Floor, Wall Waste); 8955-T-3 (On-Floor, Floor Waste) | 284 KB | |||
 | | Top Supply Wall Mounted Contour Toilet | 0 | 244 KB | ||
| | Top Supply Wall Mounted Off-Floor Contour Toilet | 0 | 114 KB | ||
| | Top Supply, On-Floor, Wall Waste (also includes ADA Toilet) | 0 | 181 KB | ||
| | Top Supply, On-Floor, Wall Waste (also includes ADA Toilet) | 0 | 182 KB | ||
| | Enviro-Glaze® Powder Coat Color Chart for Neo-Metro Stainless Steel products | 0 | 1 MB | ||
| | Cleaning guidelines for Neo-Metro products | 0 | 252 KB | ||
| | Option Info Sheet for -MC option on 8955 Toilet | 0 | 142 KB |
Specifications
| Accessibility | ADA Compliant |
| Additional Accessibility Notes | Must be specified: 8955-ADA-T-2, 8955-ADA-T-3 to be ADA compliant |
| Material | Stainless Steel |
| Steel Finish | Satin Finish Stainless Steel [STANDARD - plain model number], -HP | Mira High Polish Stainless Steel |
| Mount | Wall Mounted, Floor Mounted |
| Flushing | Classified as High Efficiency Toilet/Urinal, Commercial 1" Supply @ 35 psi Required, Top Supply (typical exposed flush flush valve) |
| Waste Location | 4.25" Floor Toilet Rough-In, Wall Waste |
| Toilet Bowl Shape | Elongated |
| Environmental/Health | Contains Recycled Material, Recyclable, Water Saving |
| Certifications | ASME A112.19.3, WaterSense - Meets EPA Criteria certified by IAPMO R&T 1.28 gpf, CSA B125.1 |
| Options | 2954-720-000 | In-Wall Toilet Carrier |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|

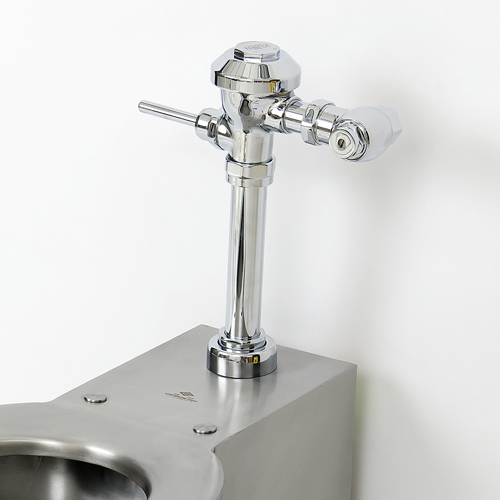

 | FV Toilet Series | Option: Toilet Flush Valve |
Colors
Steel Finish
![Satin Finish Stainless Steel [STANDARD - plain model number]](https://assets.morrisgroupint.com/assets/2dc4b603-3210-47b1-a3c9-df9f8af60dd7.jpg)
Satin Finish Stainless Steel [STANDARD - plain model number]
HP | Mira High Polish Stainless Steel
Models
Typical models are shown below

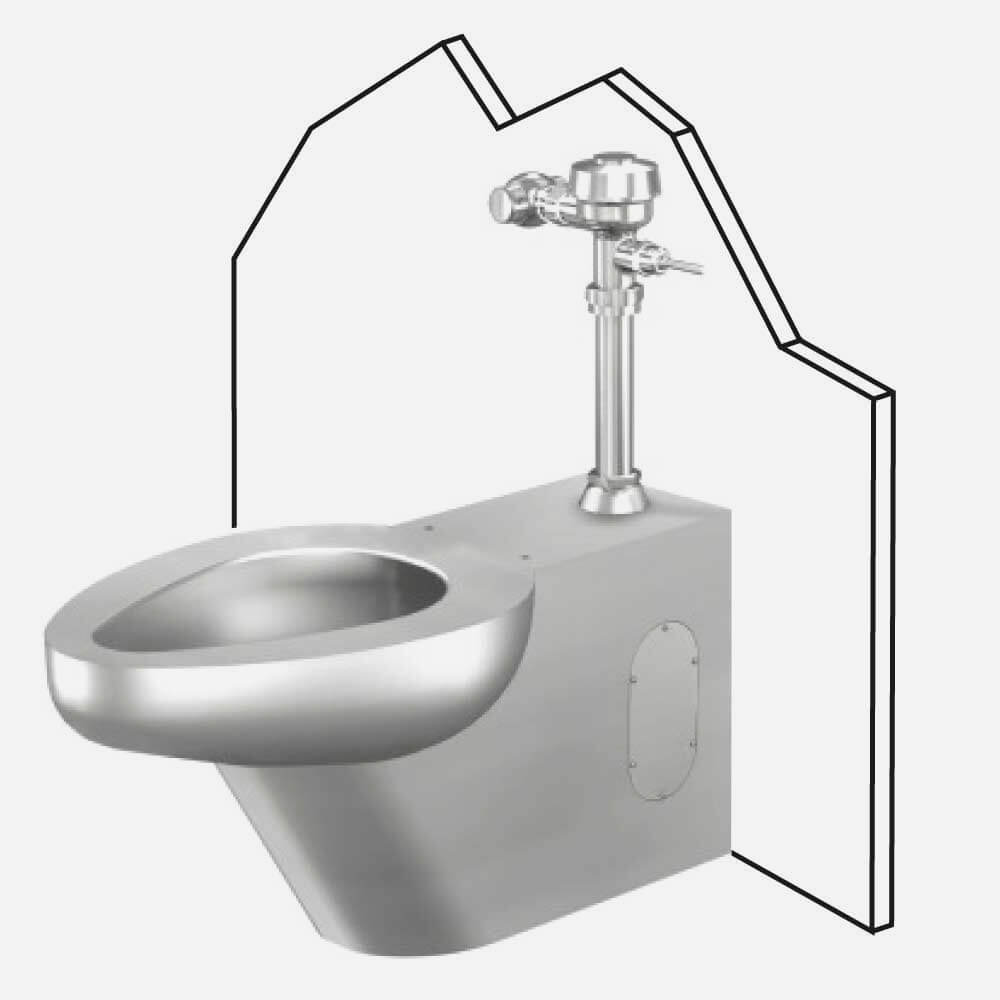

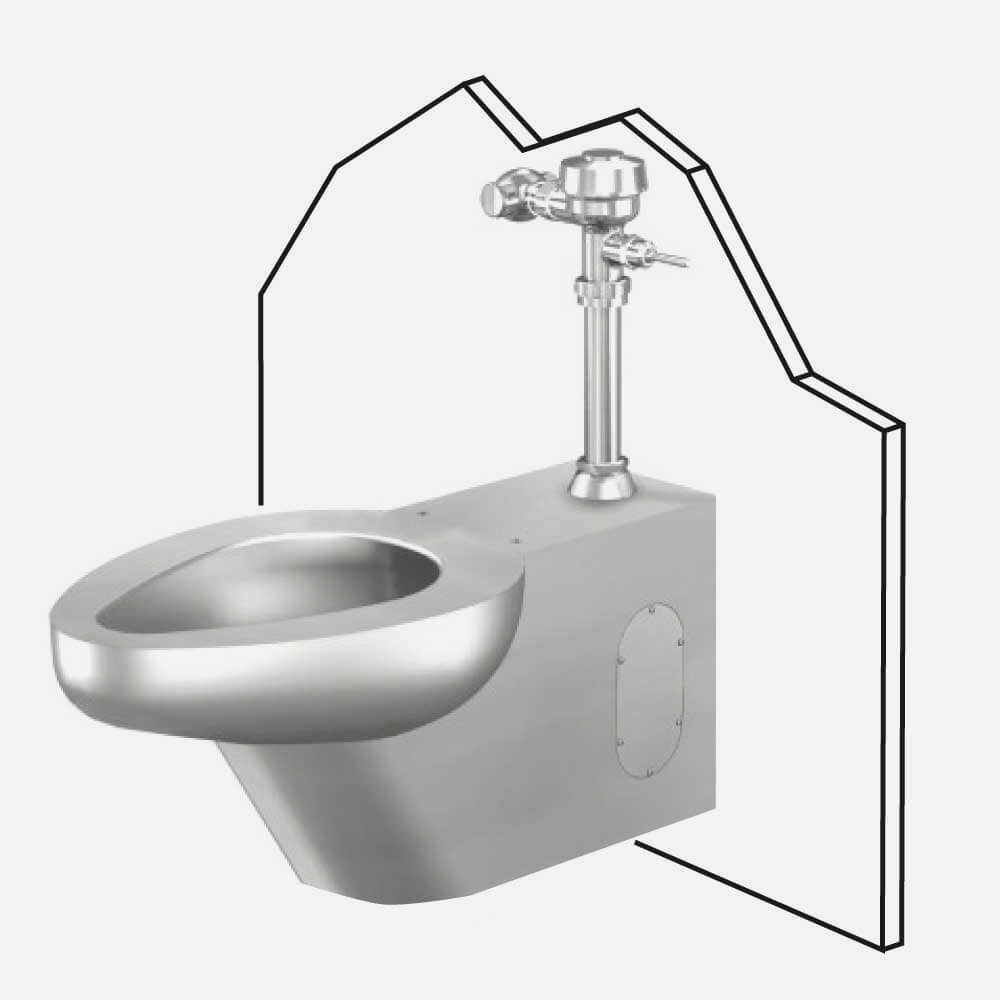

OFF-FLOOR, TOP SUPPLY MODELS
ON-FLOOR TOP SUPPLY MODELS
