Metaal Stainless Steel Toilet - Commercial Flush Valve

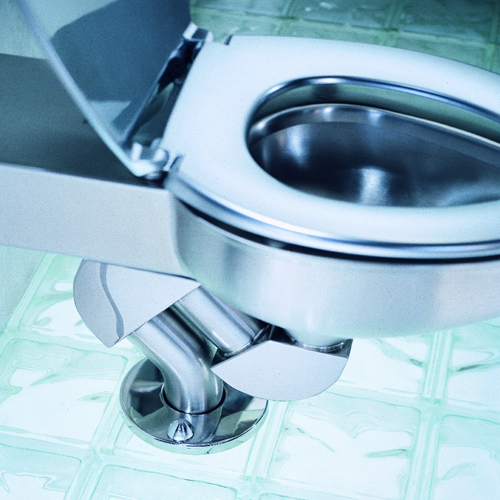

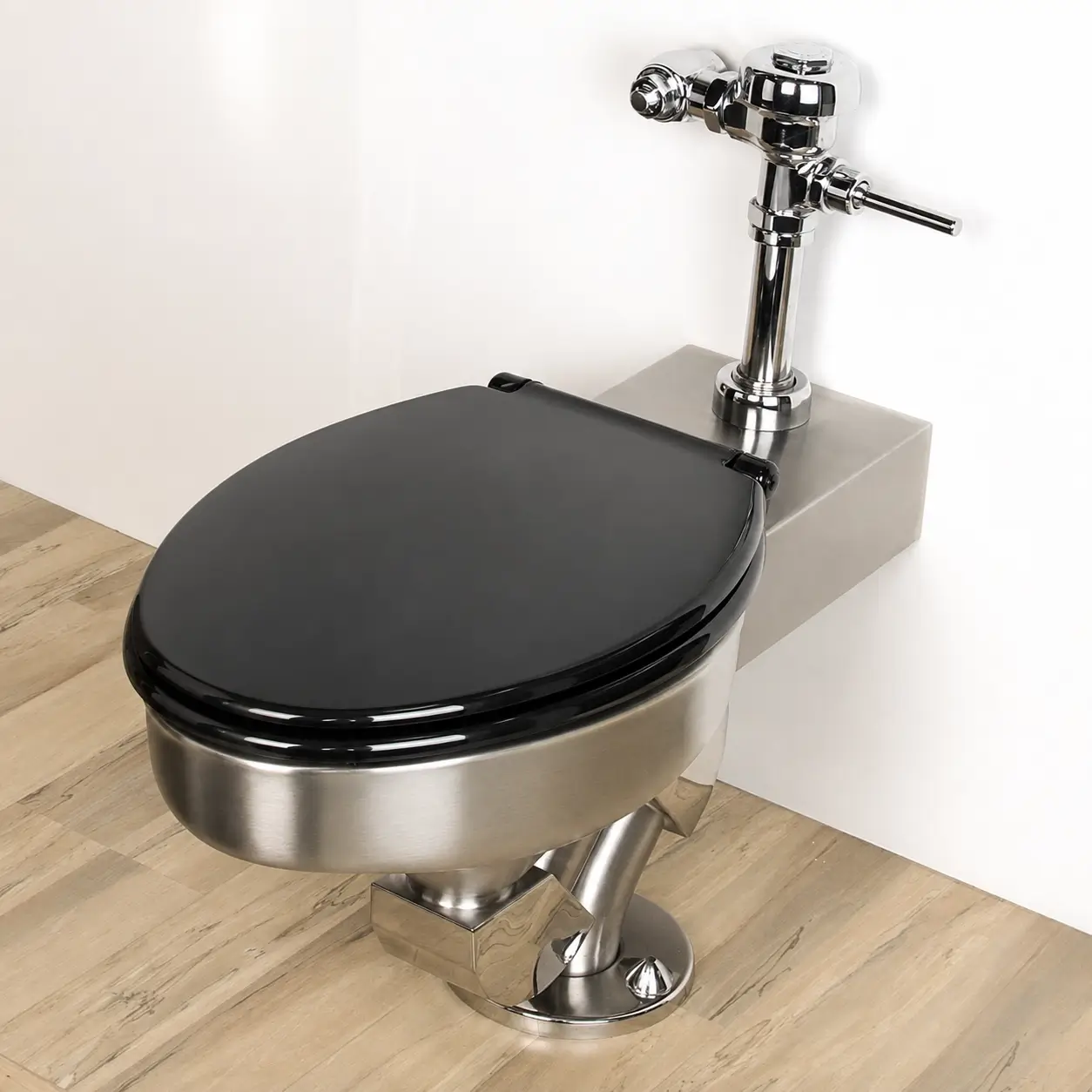

The Metaal toilet features a patented exposed decorative, geometric P-trap design. Mira Finish (high polished) accents highlighting the P-trap elbows. Toilet is fabricated from 16 gauge, type 304 stainless steel with an elongated bowl punched for a standard toilet seat with 5-1/2" (140 mm) mounting centers. Toilet rim on standard toilet is 15" (381 mm) from finished floor. A 17" (430 mm) toilet seat height is available to comply with ADA regulations. ADA compliance is subject the interpretation and requirements of the local code authority. Please check your local ADA regulations.

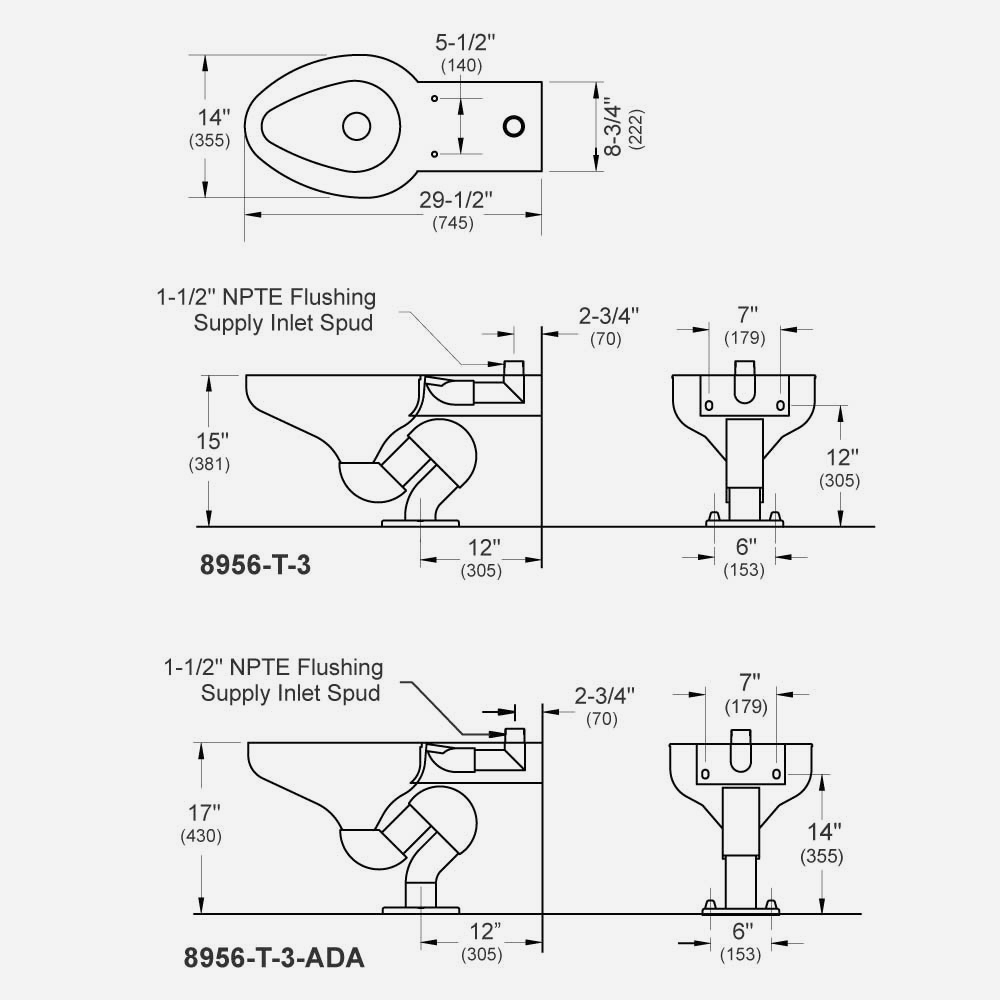

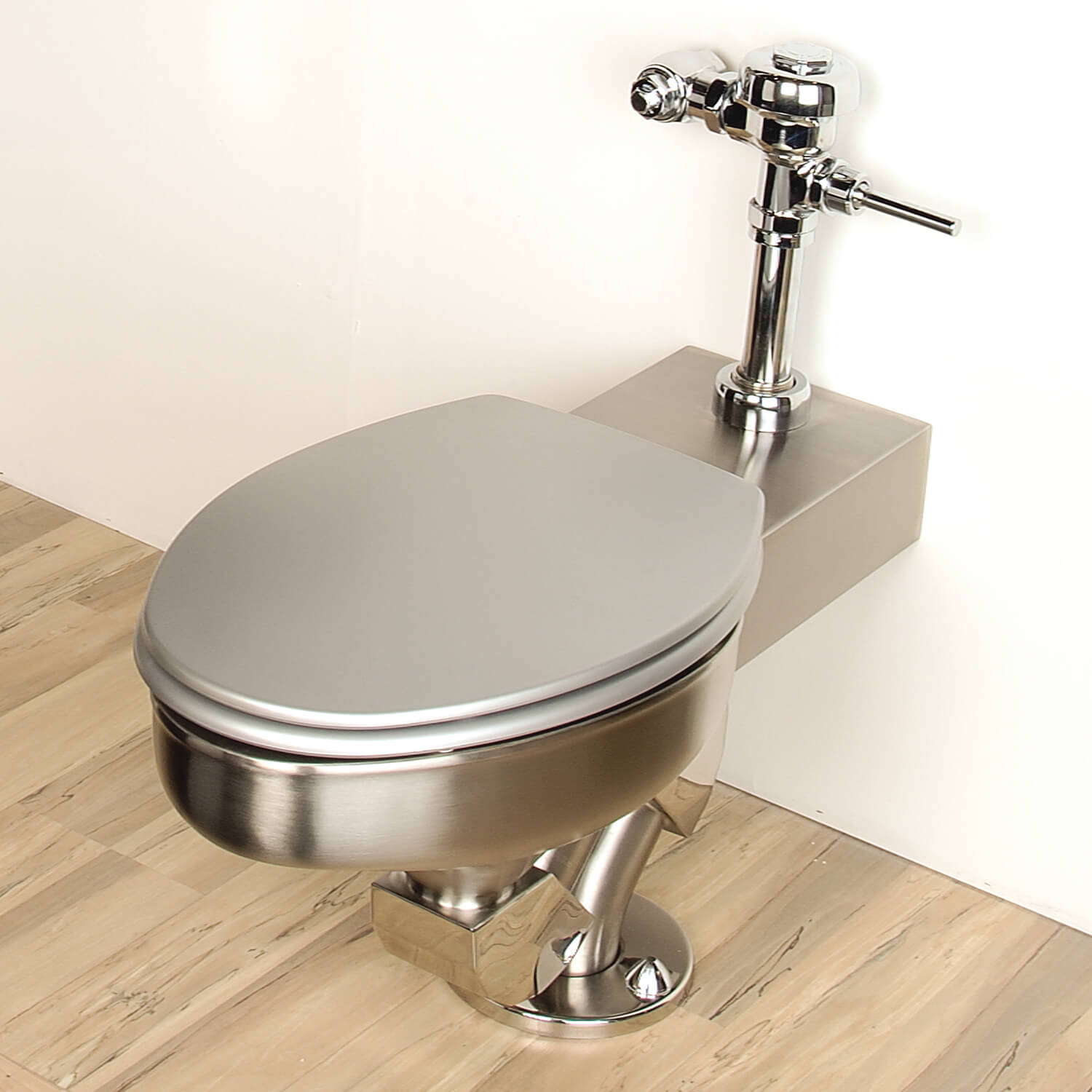

This siphon jet toilet can be configured for a Top Supply (exposed) flush valve (sold separately) utilizing a commercial 1" (25 mm) water supply line. The 1-1/2" (38 mm) flushing inlet connection is located at the top of the toilet, 2-3/4" (70 mm) from the wall.

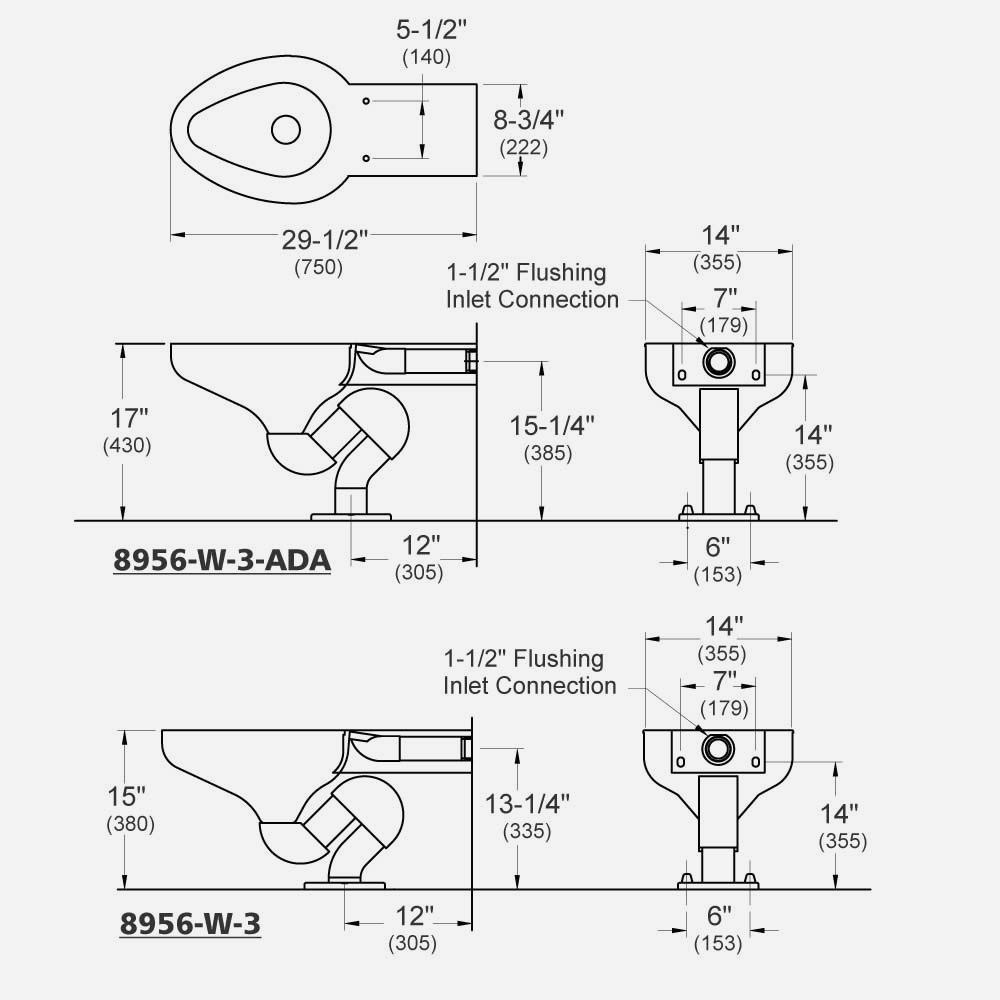

The toilet can also be configured for a Wall Supply (concealed) flush valve (sold separately) utilizing a commercial 1" (25 mm) water supply line. The 1-1/2" (38 mm) flushing inlet connection is located at the rear of the toilet, 13-1/4" (335 mm) and 15-1/4" (385 mm) above the finished floor. On the ADA Wall Supply Toilet, the flushing inlet connection is located at the rear of the toilet 15-1/4" (385 mm) above the finished floor.

In all toilets, a circular base connects to standard floor waste connection 12" (305 mm) from finished wall with the upper rear mounted to the wall.

FEATURES

• Toilet with patented exposed decorative p-trap
• Commercial SIPHON JET Toilet requiring commercial water supply line to operate. Water flow pressure 35 psi (2.41 bars); Water Supply Line 1"(25 mm)
• TOP SUPPLY (Exposed) Flush Valve Configuration
  Compatible flush valve (sold separately) releases 1.6 Gallons (6 Liters) per Flush. The 1-1/2" (38 mm) flushing inlet connection spud is located at the top of the toilet
• WALL SUPPLY (Concealed) Flush Valve Configuration
  Compatible flush valve (sold separately) releases 1.6 Gallons (6 Liters) per Flush. The 1-1/2" (38 mm) flushing inlet connection is located at the rear of the toilet.
• STAINLESS STEEL CONSTRUCTION
  16 Gauge Satin Finish Stainless Steel with Mira (High Polish) Accents on P-Trap
• ELONGATED TOILET BOWL Punched for Toilet Seat with 5-1/2" (140 mm) Mounting Centers. Seat is not  provided by Neo-Metro.
• ADA Compliant 17" (430 mm) rim height toilet available; ANSI A112.19.2 Compliant
